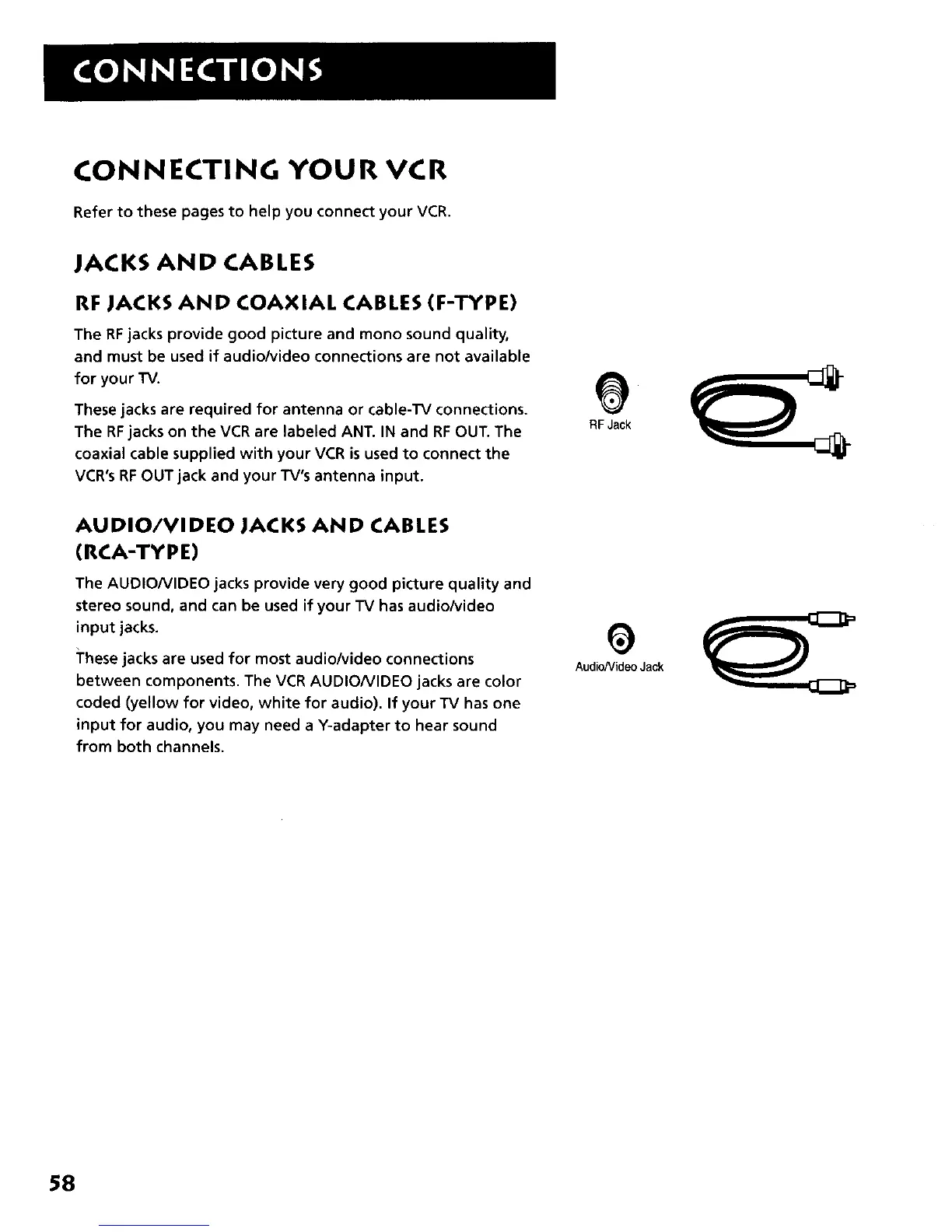

CONNECTING YOUR VCR
Refer to these pages to help you connect your VCR.
JACKS AND CABLES
RF JACKS AND COAXIAL CABLES (F-TYPE)
The RFjacks provide good picture and mono sound quality,
and must be used if audio/video connections are not available
for your TV.
These jacks are required for antenna or cable-TV connections.
The RFjacks on the VCR are labeled ANT. IN and RFOUT. The
coaxial cable supplied with your VCR is used to connect the
VCR's RFOUT jack and your TV's antenna input.
RF Jack
AUDIO/VIDEO JACKS AND CABLES
(RCA-TYPE)
The AUDIONIDEO jacks provide very good picture quality and
stereo sound, and can be used if your TV has audio/video
input jacks.
l'hese jacks are used for most audio/_ideo connections
between components. The VCR AUDIONIDEO jacks are color
coded (yellow for video, white for audio). If your TV has one
input for audio, you may need a Y-adapter to hear sound
from both channels.
Q
Audio/Video Jack
58
