8 Installation of LED Modules
The ReefLED™ 50 for the MAX
®
NANO is attached to the mounting arm
by a swivel joint. The mounting arm is attached to the aquarium by the
hole provided for it in the top of the Pump Switch-box The complete LED
assembly can be rotated from side to side for ease of aquascaping and
maintenance of the rear sump, specifically when removing the skimmer.

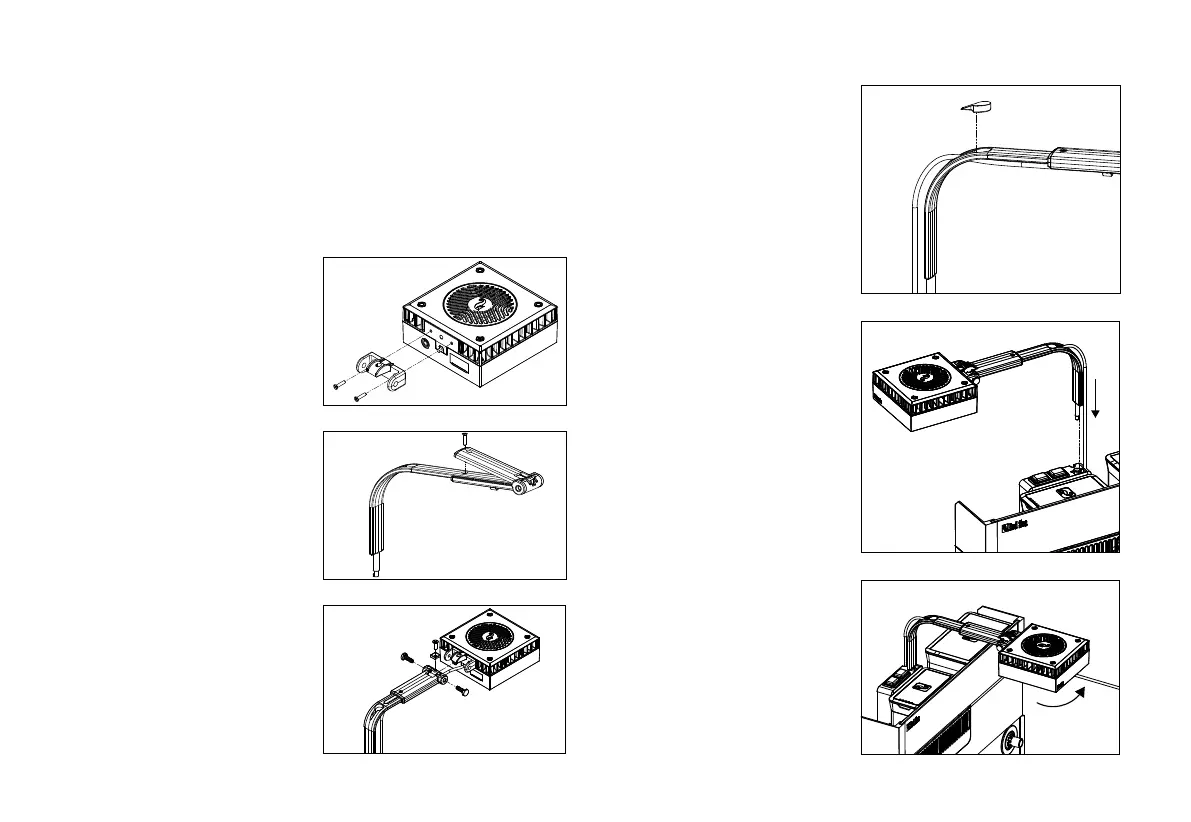

1. Using the M3 screws provided,
attach the swivel connector as
shown in the diagram
2. Place the arm extension over
the arm as shown in the
diagram and screw tightly in
position with the M3 screw
provided.
3. Push the swivel connector on the
ReefLED onto the arm extension.
Insert the connector pins to both
sides and push until firmly in
position. Screw the fixing screw
into the top of the connector until
the ReefLED is secure.
4. Thread the cable through
the hole in the bend of the
mounting arm and push the
cable-hole plug into position.
5. To attach the LED mounting
arm to the switchbox hold it
so that the pin at the bottom
of the arm is over the hole
in the switchbox and the LED
unit is facing sideways as
shown in the diagram. Place
the cable over the back of
the aquarium.
6. Lower the pin into the hole
and when the flat part on
the arm is in resting on the
Pump Switch Box, rotate the
arm to the forward position.
