Redarc The Manager30 User Manual

14
2 INSTALLATION GUIDE
2.2.2 Mounting the Remote Monitor
The Remote Monitor should be mounted inside the travel trailer or RV using the template provided on
page37. It is acceptable however to mount the Remote Monitor in any convenient location, as long as
it is protected from harsh environments. The Remote Monitor is connected to the main unit with the 16'4"
(5m) CANBus cable.
Figure 2.2.2.1 and Figure 2.2.2.2 illustrate how to recess and wall mount the Remote Monitor unit, Figure
2.2.2.3 illustrates removal of the Remote Monitor.
Recess
1
2
Use the template provided (section4 on
page37) to mark the position and drill and
cut the mounting holes into the wall.
Feed the Remote Monitor cable through the
hole and connect it to the Remote Monitor.
3 4
Mount the Inner Assembly to the wall using 4
suitably sized screws.
Clip the Front Face to the Inner Assembly.
5

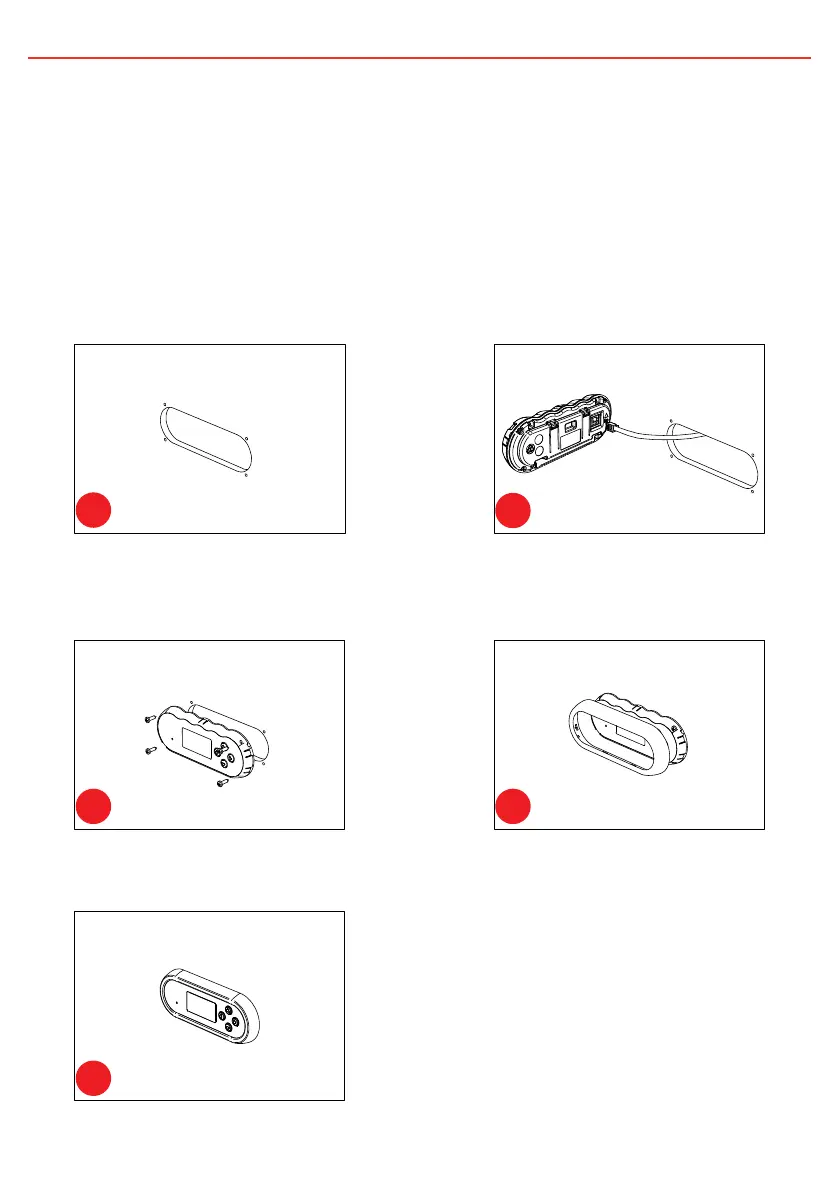

FIGURE 2.2.2.1: How to recess the Remote Monitor into the wall.
