Redarc The Manager30 User Manual

18
2 INSTALLATION GUIDE
2.3.1 Input Wire Diameter Selection
REDARC recommends the installer use cabling and connections between 8B&S and 6B&S automotive.
REDARC recommends that the input wire be of the size outlined in Figure 2.3.1.1.
Distance from input vehicle
battery to The Manager30
Recommended
Diameter Equivalent
Recommended Cross
Sectional Area (mm²)
≤10' (3m) 8AWG / 8B&S 8
>10' (3m) 6AWG / 6B&S 13
FIGURE 2.3.1.1: Recommended input cable size
2.3.2 Output Wire Diameter Selection
REDARC recommends the installer use cabling and connections between 8B&S and 6B&S automotive.
REDARC recommends that the output wire be of the size outlined in Figure 2.3.2.1. For longer runs, using
6B&S (13mm
2
) is recommended, however this will lower efficiency by up to 3% (the recommended
maximum length is 16'5" (5m).
Distance feet (meters) from
The Manager30 to House
battery
Recommended
Diameter Equivalent
Recommended Cross
Sectional Area (mm²)
≤5' (1.5m) 8AWG / 8B&S 8
>5' (1.5m) 8AWG / 8B&S 13
FIGURE 2.3.2.1: Recommended output cable size

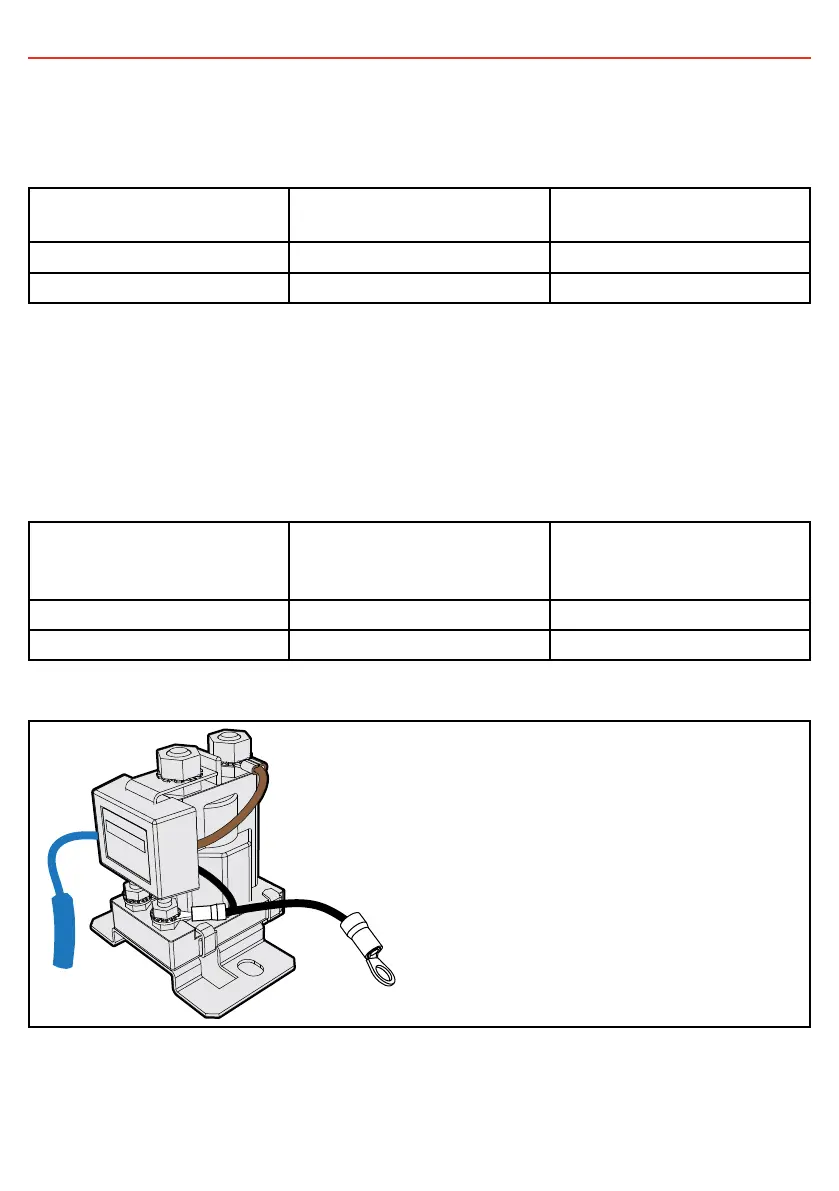

REDARC recommend using the SBI12-BLD as
the 12V relay for setting up the Load Disconnect
Feature for nonessential Loads.
Similarly, the SBI12-LLD is recommended for
use between the Auxiliary/House battery and
the Essential Loads in a Lithium Battery setup,
to protect the Lithium battery from excessive
discharge.
