12

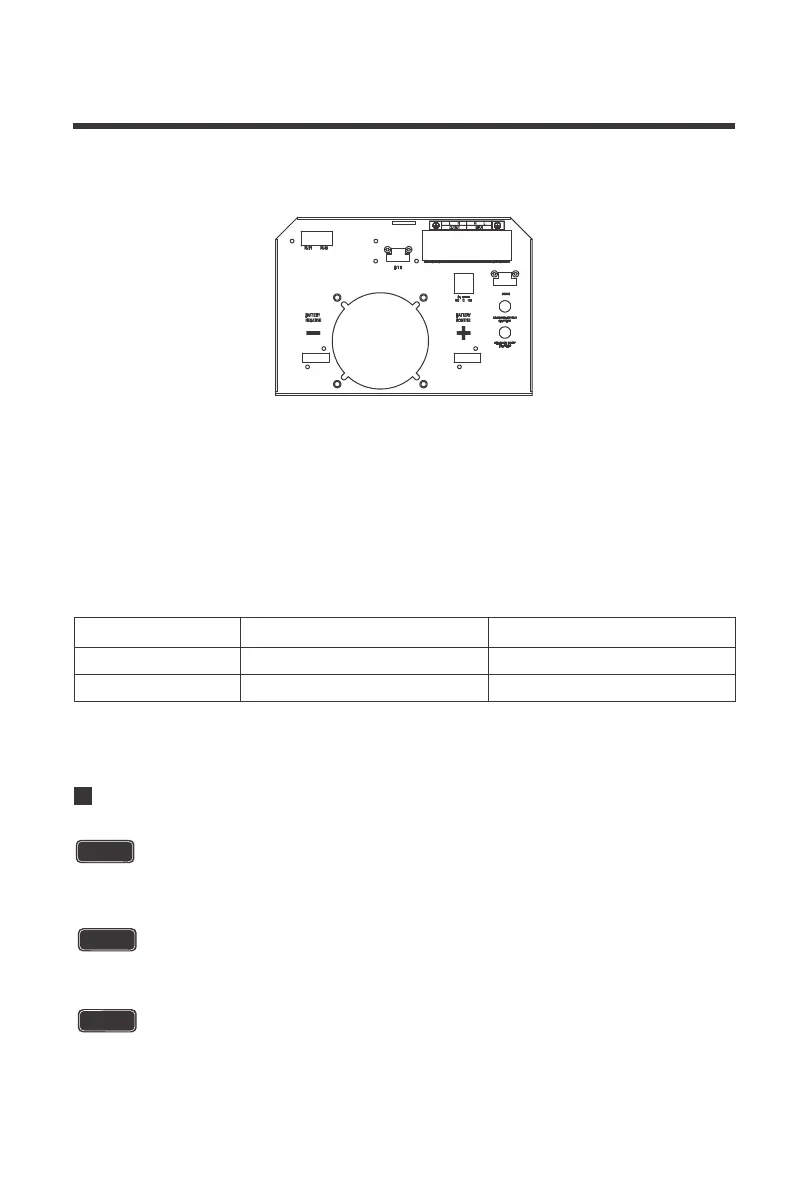

AC WIRING
WARNING
When installing DC cables, the following are recommendations:
Battery positive and negative cables should be as close to the battery as possible to
minimize voltage loss and other possible effects.
Tie, tape, or twist cables together to reduce self-inductance.
Install all overcurrent devices on the positive cable.
1.
2.
3.
Model
2000W 200A 2/0
3000W 300A 4/0
Recommended Fusing Recommended Wire Sizing
CAUTION
Avoid switching on the inverter with the load (electronic devices) already switched
on. This may trigger an overload since some electronic devices have an initial high
power surge to start.
CAUTION
When switching off the inverter, turn off the electronic devices first. Although the
inverter is off, the capacitors will still have a charge, so the DC and AC terminals must
be disconnected if altering the circuitry.
Ensure all sources of DC power (i.e., batteries, solar, etc) andAC power (utility power
or AC generator) are de-energized (i.e., breakers opened, fuses removed) before
proceeding—to prevent accidental shock
