14
For increased energy efficiency, some
water heaters have been supplied with
pipe insulation.
Please install the insulation, according
to the illustrations above, that best meets
your requirements.

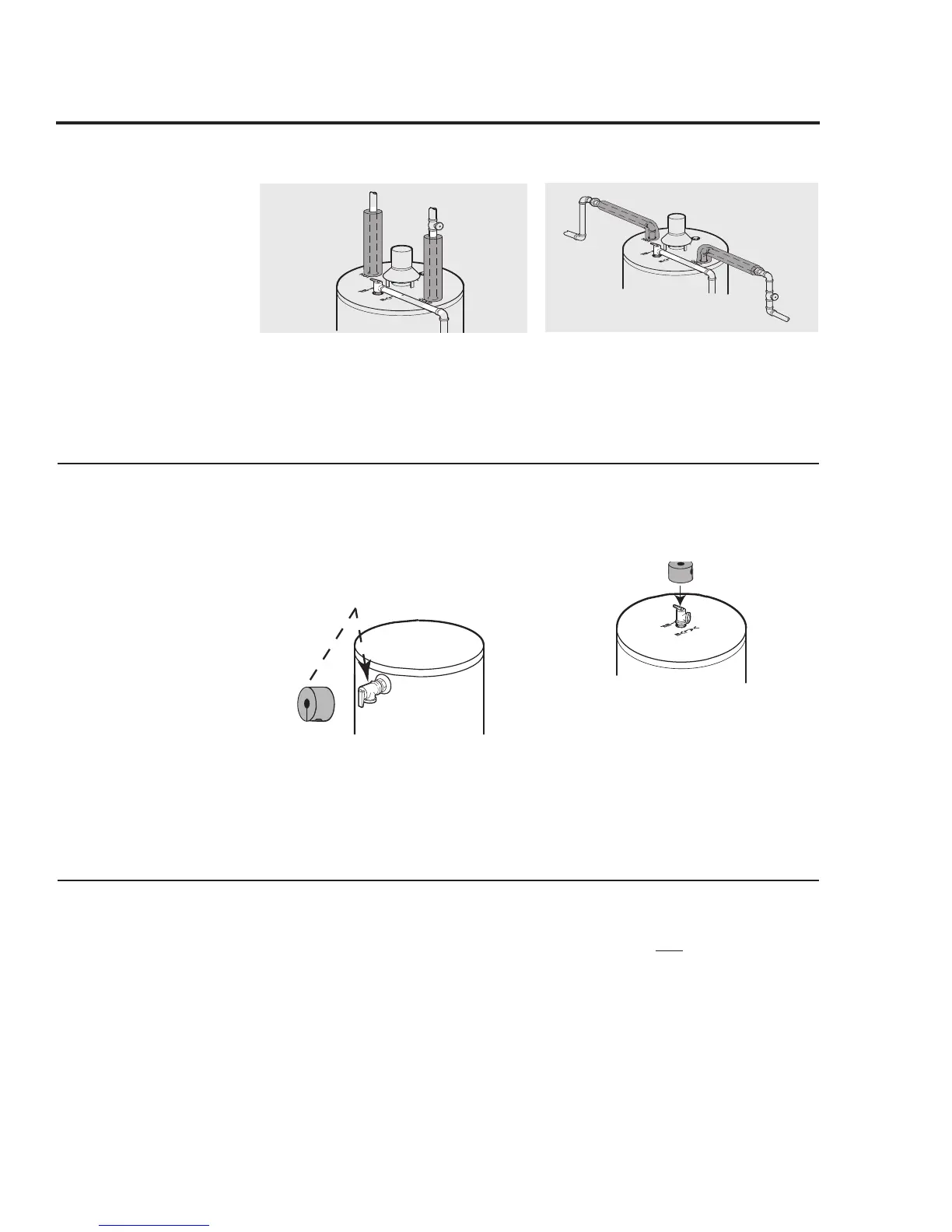

Typical vertical piping arrangement
Typical horizontal piping arrangement
Heat Trap
Hot and Cold Pipe Insulation Installation
For increased energy efficiency, some
water heaters have been supplied with
factory installed 3/4” NPT heat traps in
the hot outlet line and cold water inlet line.
These heat traps may require a minimum
of one (1) 90° 3/4” NPT elbow and may
require an additional 90° 3/4” NPT elbow
or a 3/4” coupling depending on your
installation needs. See Illustration of
nipples and heat traps on page 26
Slip the insulation cover over the T&P
Valve through the center hole and align
the hole in the side with the opening of the
T&P Valve.
Ensure the T&P Valve opening is not
obstructed by the insulation.
For increased energy efficiency, this water heater has been supplied with T&P
insulation. Please install the insulation as shown below.
Typical Top Connect T & P Arrangement.
T&P Insulation Installation
Typical Side Connect T & P Arrangement.
Installing the water heater.
