Rheem 95P series User Manual

68
CONDENSATE DRAIN
CONDENSATE DRAIN & DRAIN NEUTRALIZER (cont.)
Condensate Drain

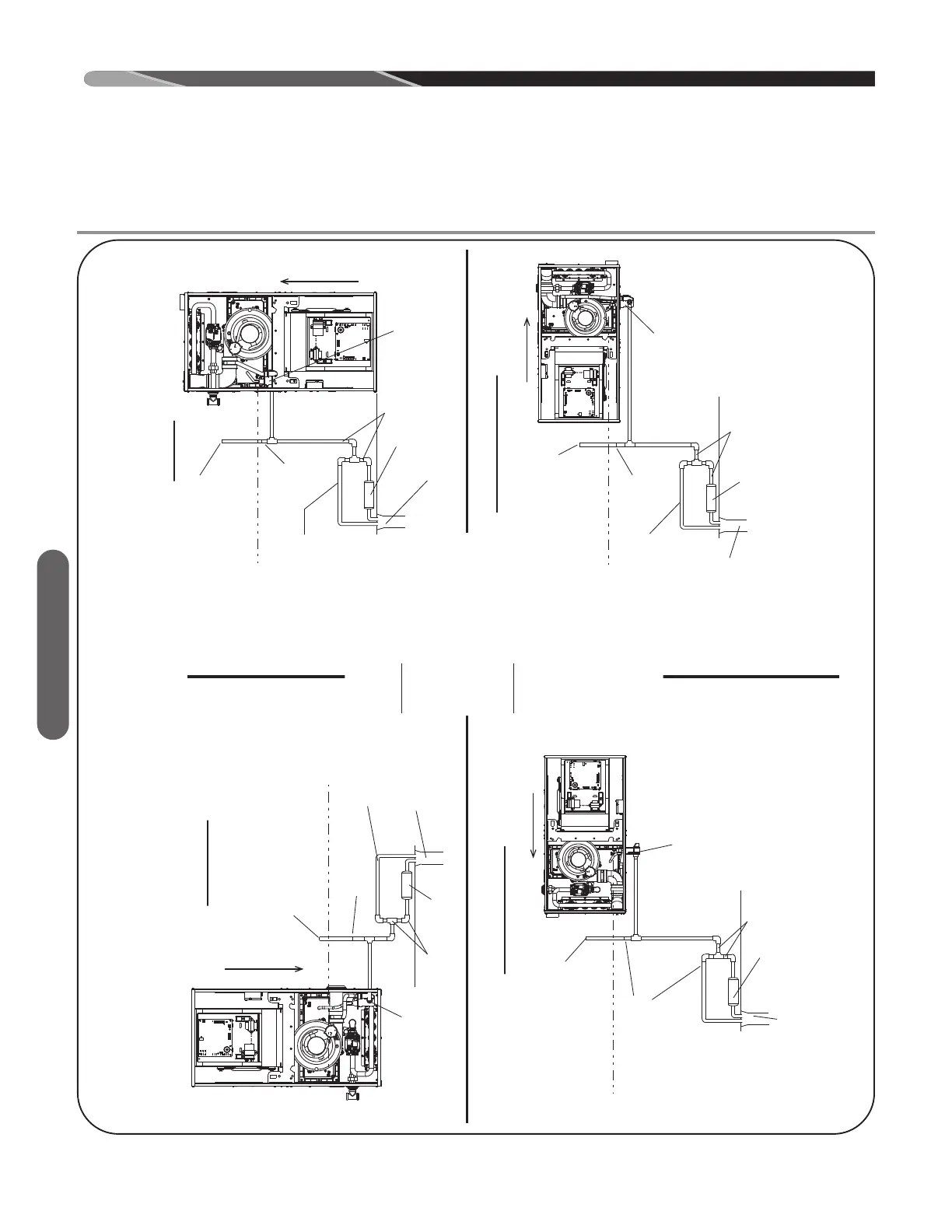

FIGURE 35
HEIGHT: OPTION “B”
HEIGHT: OPTION “A”
HEIGHT OF LOWER
CONDENSATE DRAIN SENSOR
CONDENSATE TRAP
DRAIN LINE
NEUTRALIZER
CARTRIDGE
(OPTIONAL)
OVERFLOW LINE
(REQUIRED ONLY WHEN
OPTIONAL NEUTRALIZER
CARTRIDGE IS USED)
TO FLOOR DRAIN
OR
CONDENSATE PUMP
AIRFLOW
HEIGHT: OPTION “B”
HEIGHT: OPTION “A”
HEIGHT OF LOWER
CONDENSATE DRAIN SENSOR
CONDENSATE TRAP
DRAIN LINE
OVERFLOW LINE
(REQUIRED ONLY WHEN
OPTIONAL NEUTRALIZER
CARTRIDGE IS USED)
TO FLOOR DRAIN
OR
CONDENSATE PUMP
NEUTRALIZER
CARTRIDGE
(OPTIONAL)
AIRFLOW
HEIGHT: OPTION “B”
HEIGHT: OPTION “A”
HEIGHT OF LOWER
CONDENSATE DRAIN SENSOR
CONDENSATE TRAP
DRAIN LINE
NEUTRALIZER
CARTRIDGE
(OPTIONAL)
OVERFLOW LINE
(REQUIRED ONLY WHEN
OPTIONAL NEUTRALIZER
CARTRIDGE IS USED)
TO FLOOR DRAIN
OR
CONDENSATE PUMP
NOTE: THESE IMAGES INTENTIONALLY DEPICT GENERIC VIEWS OF THE DRAIN ROUTING, THE INSTALLER HAS THE OPTION TO ROUTE THE DRAIN TO THE RIGHT OR LEFT SIDE OF THE FURNACE AS NEEDED.
A
I
R
F
L
O
W
HEIGHT:
OPTION “B”
HEIGHT: OPTION “A”
HEIGHT OF LOWER
CONDENSATE DRAIN SENSOR
CONDENSATE TRAP
DRAIN LINE
NEUTRALIZER
CARTRIDGE
(OPTIONAL)
OVERFLOW LINE
(REQUIRED ONLY WHEN OPTIONAL
NEUTRALIZER CARTRIDGE IS USED)
TO FLOOR DRAIN
OR
CONDENSATE PUMP
A
I
R
F
L
O
W
HORIZONTAL LEFT
HORIZONTAL RIGHT
DOWNFLOW
UPFLOW
CONDENSATE DRAIN LOCATING
INSTRUCTIONS
ST-A1194-4
ST-A1194-42-X0
VENT TUBE HEIGHT Vent tube height is optional: Option A:
Install vent tube height
with top of the tube Below the level of the water sensor to allow the furnace to run when the drain is blocked, This option will spill water out of the tube when the drain is blocked, but the furnace will continue to run. Option B:
Install vent tube height
with top of the tube Above the level of the lower condensate water sensor to shut the furnace down when the drain is blocked. This option will not spill water from the drain vent but the furnace will also not continue to run with a blocked drain.
