BASIC SETTINGS: The basic settings in you water heater
can allow you to change the temperature unit, screen
adjustment lock/unlock, enabling/disabling the alarm
beep, and your EcoNet network instance. Simply select
the setting by tapping it, and press the Up/Down arrows
to make adjustments. WiFi setup can be accessed from
this screen as well.
CONFIGURATION SETTINGS: The configuration settings
on your water heater allows you to control the differen-tial
temperature set point, turning on/off the recircula-tion
pump, auxiliary input/output, enabling/disabling
modulation, and how your hot water heater reacts to a
detected leak.
The setting can be highlighted by tapping and then ad-
justed with the up/down arrows.
The Differential can be adjusted from 1°F to 30°F. The
recommended differential is 12°F.
This water heater has a modulation algorithm that can
be disabled by tapping ‘No’ in front of Modulation Dis-
abled and making adjustments by tapping the up/down
buttons.
Water heater behavior in response to leak can be
changed from Alarm Only to Disable When Leak De-
tected.
Shutoff Valve (on premium models only) behavior re-
sponse can be selected to the following:
• Open
• Closed
• Close if Leak Detected: Always close the valve when
leak is detected.
• Close if Unocc. Leak Detected (based on unoccupied
times from the schedule function). Water heater will
alarm only during the operating hours.
SCHEDULE SETTINGS: The schedule settings allows you
to control when your hot water heater will be enabled/
disabled. Your heater allows you to select a day you
want and set the times when the heater will be in use.
You can also copy/paste the day you select and apply
it to other days as well.
TIME/DATE SETTINGS: By selecting time/date you can
change the water heaters current set time. You can also
select the daylight savings time function to automati-
cally adjust the time for daylight savings.
BacNet
This water heater is compatible with BacNet MS/TP
protocol. Please refer to the GHE BacNet instruction
sheet for details on the setup.
basic settings
Temperature Display
Screen Adjustment Lock?
Beep On Alarm
EcoNet Network Instance
Elevation
Fahrenheit
No
Enabled
1
Normal
config. settings
Differential Temp Setpt.
Recirc. Pump Config
Aux Input Select
Aux Output Select
Modulation Disabled?
When Leak Detected
12.0° F
Off
Flow Sensor
None
No
Alarm Only

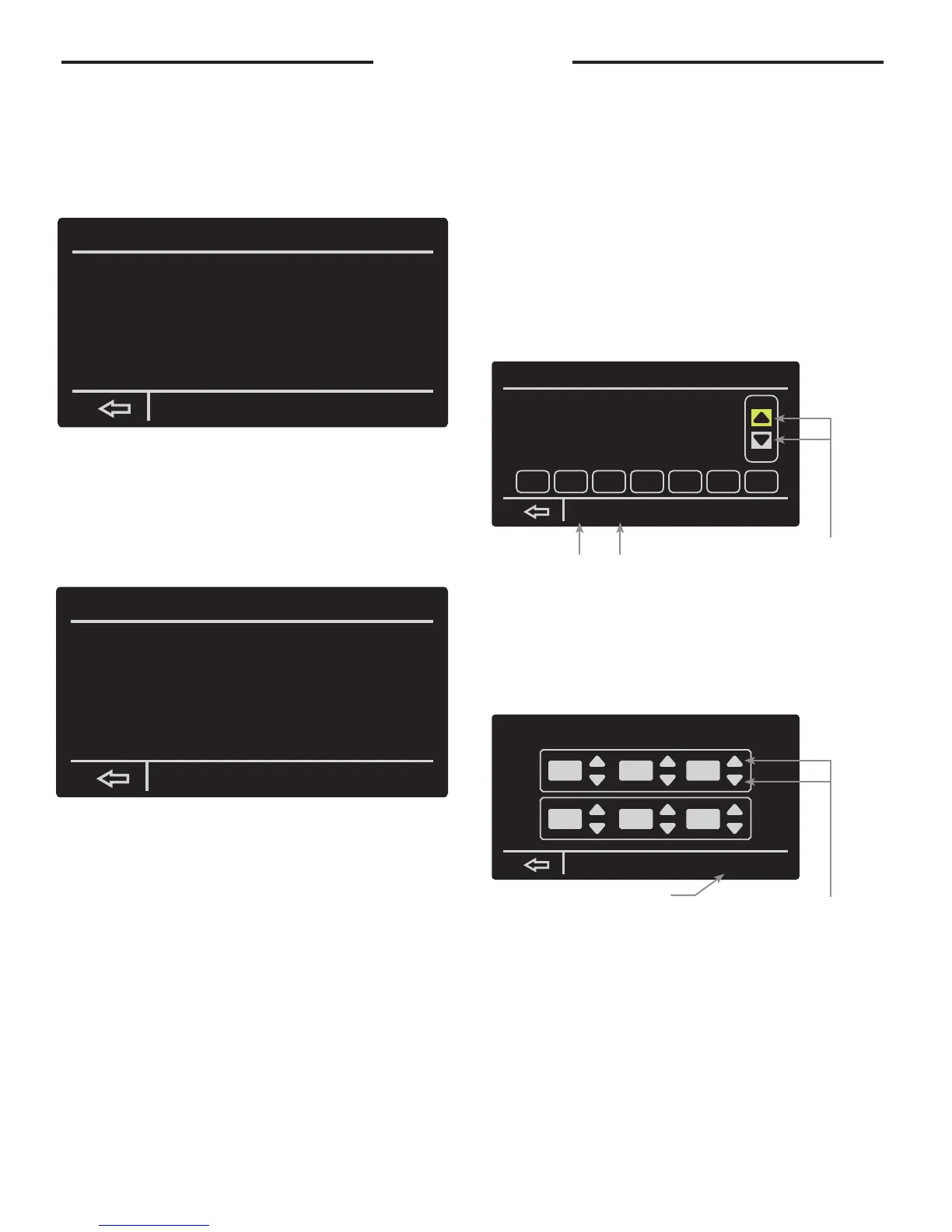

schedule settings
Wed. Jan.11, 2:49 pm
Morning:
Night:
Mon.
08:00 am
06:00 pm
Time
Occupied
Occupied
Schedule
Tue.
copy
day
paste
day
cancel
Wed. Thu. Fri. Sat. Sun.
set te time and date
accept
D.S.T.
enabled
:
10 54 am
:
Jan. 11 2017
The up/down arrows enable
you to adjust the time of the
morning/night run times.
By selecting a day and then access-
ing the copy function, you can
paste that day’s settings onto other
The up/down arrows allow
you to control the time,
month, day, and year.
The D.S.T function allows you to
adjust the time for daylight sav-
ings time.
