6 Rheem Manufacturing Company
ACCESSORIES—UPFLOW
† Filter racks are shipped without filters.
Filters shipped with furnace may be used or a suitable 1" [25.4 mm] filter.
*Designates “E” or “N”.
RXPF-F01 and F02
FOSSIL FUEL KITS are for use with Rheem Heat Pumps
and Criterion II warm air furnaces. The RXPF-F02 meets TVA
requirements.

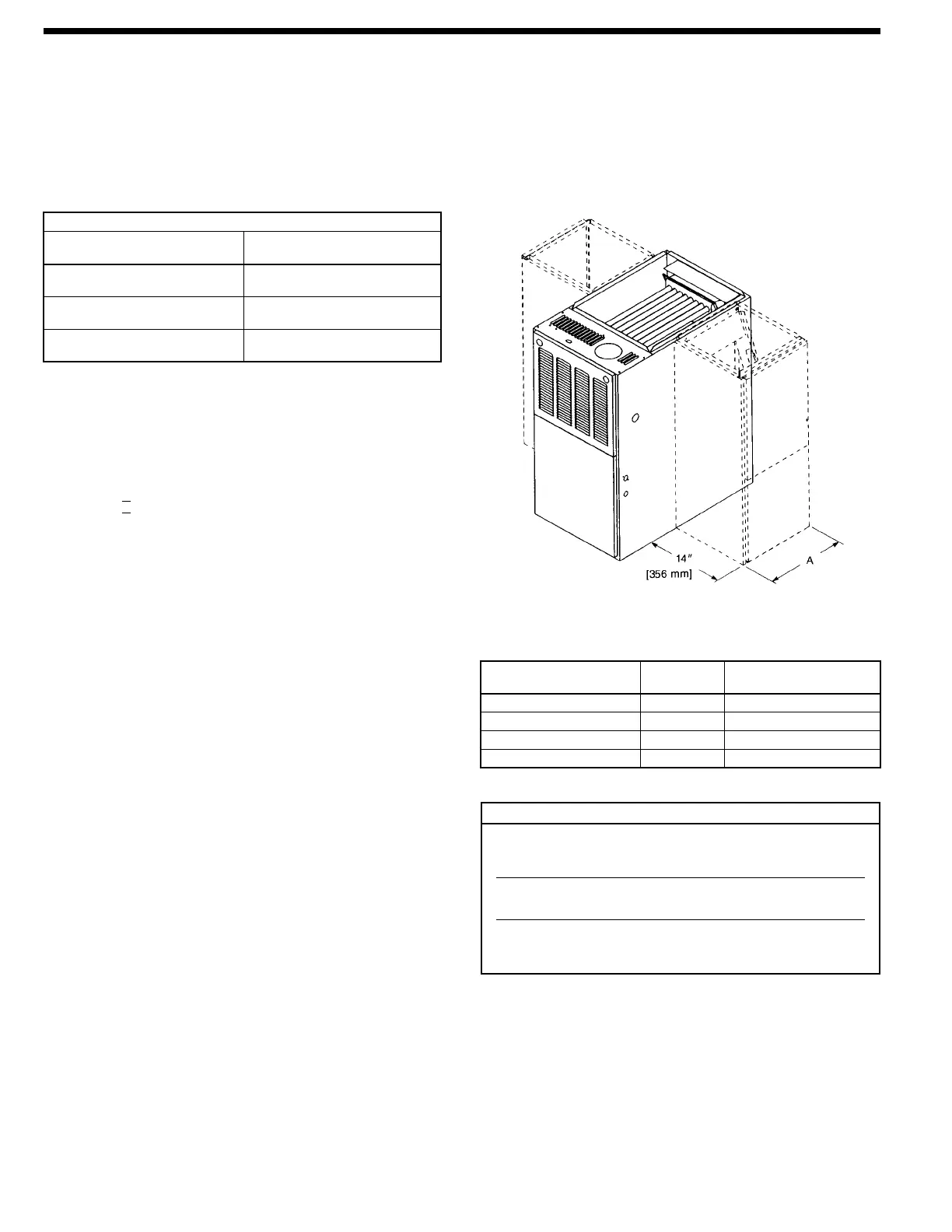

ACCESSORY RETURN
AIR CABINETS
Return Air Cabinets may
be installed on either side
application except RXGR-C24B
(side application must be
on side opposite gas and
electrical connections).
THE RXGR-C24B MUST ONLY BE INSTALLED ON THE SIDE
OPPOSITE THE GAS AND ELECTRICAL CONNECTIONS.
WARNING: IMPORTANT NOTICE
A SOLID METAL BASE PLATE (SEE TABLE) MUST BE IN PLACE WHEN THE FURNACE
IS INSTALLED WITH SIDE AIR RETURN DUCTS. FAILURE TO INSTALL A BASE PLATE
COULD CAUSE PRODUCTS OF COMBUSTION TO BE CIRCULATED INTO THE LIVING
SPACE AND CREATE POTENTIALLY HAZARDOUS CONDITIONS.
FURNACE BASE
WIDTH
SOLID BOTTOM BASE
PLATE SIZE
IN. [mm]
KIT NO. PLATE NO.
IN. [mm]
14 [356] RXGB-D14 AE-61874-01 11
5
/8 x 23
9
/16 [295 x 598]
17
1
/2 [445] RXGB-D17 AE-61874-02 15
1
/8 x 23
9
/16 [384 x 598]
21 [533] RXGB-D21 AE-61874-03 18
5
/8 x 23
9
/16 [473 x 598]
24
1
/
2
[622] RXGB-D24 AE-61874-04 25
5
/
8
x 23
9
/
16
[651 x 598]
[ ] Designates Metric Conversions
IN. [mm]
IN. [mm]
OPTION CODE FOR HIGH ALTITUDE:
US—277
Canada—For high altitude derate procedure, refer to the furnace
installation instructions.
(U.S. Models—Kit packaged with furnace.
Requires field installation.)
EXTERNAL BOTTOM FILTER RACK: RXGF-CB
