HORIZONTAL CONCENTRIC
TERMINATION
This kit is for horizontal intake air pipe
runs and may be installed through
walls up to 16 inches thick. See
Figure 19. Complete installation
instructions are supplied with the kits.

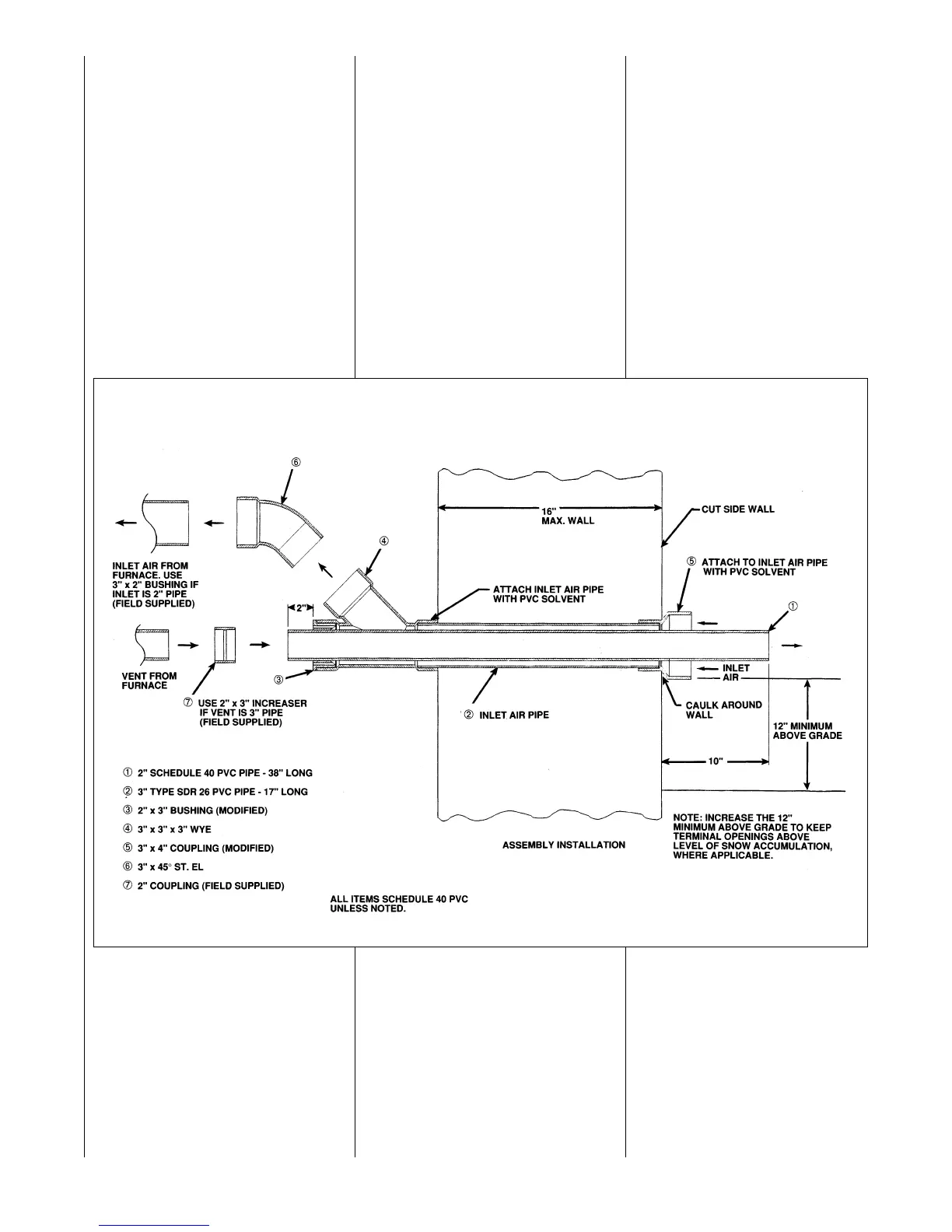

FIGURE 19
HORIZONTAL CONCENTRIC VENT KIT NO. RXGY-C01
(DIRECT VENT INSTALLATIONS)
RXGY-D04
1. 2
1
/2-in. PVC elbow
2. 3" x 2
1
/2" PVC bushing
3. 2
1
/2" x 6
1
/2" long PVC pipe
4. 2
1
/2" x 16" long PVC pipe
5. 2
1
/2" x 21" long PVC pipe
6. PVC vane
7. ➤
3-in. tee with reducer assembly
8. 6-in. dia.
1
/2-in. PVC trap
9. PVC strap
10. vent template
NOTE: The RXGY-D04 kit only
applies to the 120,000 BTUH unit
using an alternate termination and
excessively long runs.
CONCENTRIC
TERMINATIONS
ALTERNATE VERTICAL
CONCENTRIC VENT
KIT NO. RXGY-E02
This kit is for vertical intake air/vent
runs and may be installed through
roofs up to 9 inches thick. One
4
1
/8-in. diameter hole is required
through the roof for the installation.
See Figure 18 for the general layout.
Complete installation instructions are
included with the kit.
