Page
10
SECTION
IV:
INSTALLATION
(cont.)

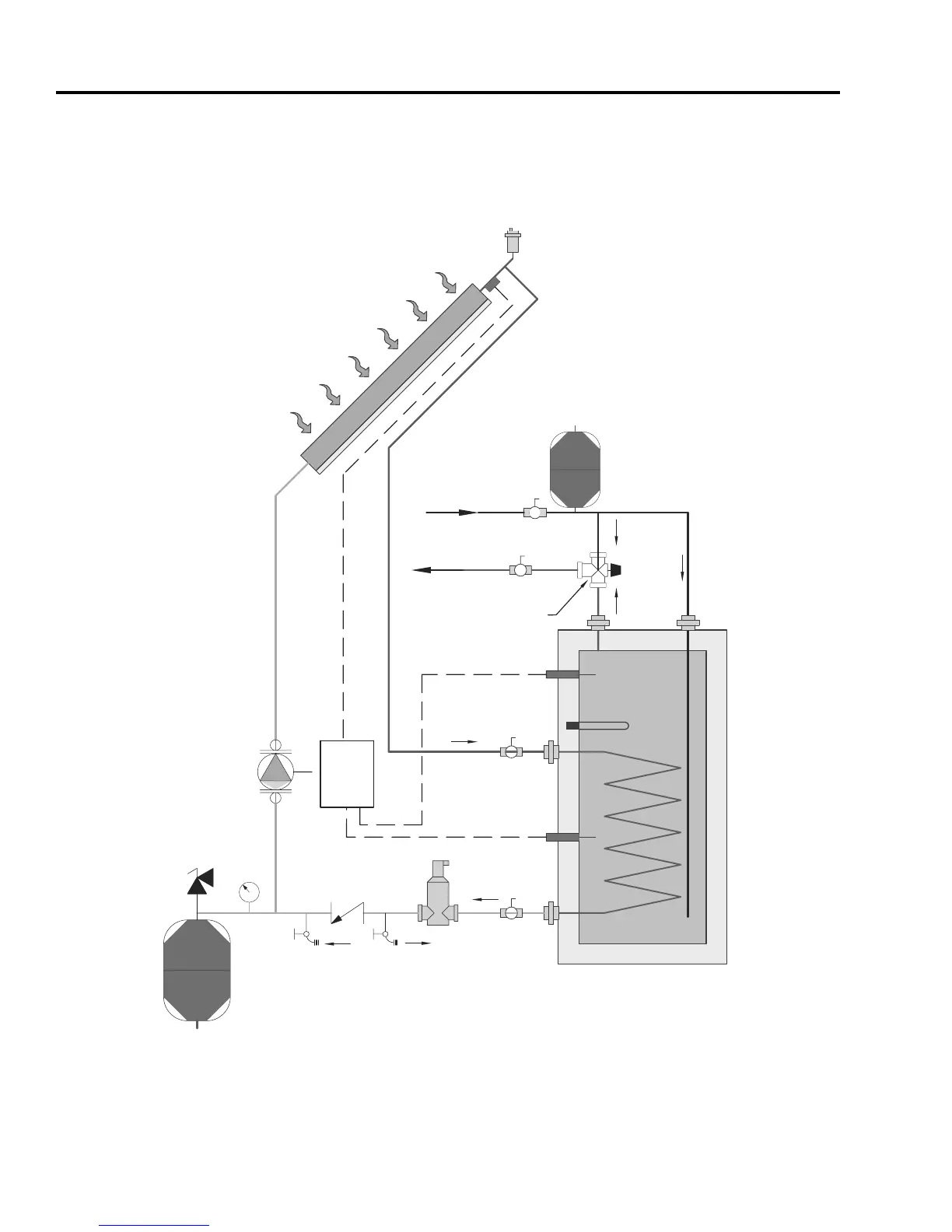

A
piping
diagram
for
a
typical
solar
domestic
water
heating
system
based on
an
indirect
water
heater
with
electric
heating
backup
is
shown
in
Figure
3.
cold water
hot water
solar collector array
anti-scald valve
expansion tank
ll/purge valves
air separator
circulator w/
isolation
anges
solar
controller
electric
heating
element
solar indirect water heater w/
electric heating element
pressure
relief
valve
air vent w/ shut
o
valve
Figure 3:
Single
tank
system with
electric
backup
PIPING
DIAGRAMS
9
11
Table of Contents
Instruction Manual
1
Table of Contents
3
Section I: Specifications
4
Section II: General Information
5
Section III: Pre-Installation
8
Section IV: Installation
9
Piping Diagrams
10
Section V: Operation
14
Section VI: Maintenance
15
Section VII: Troubleshooting
16
Section VIII: Parts List
17
Section IX: Warranty
23
