Page 17
SECTION VIII: PARTS LIST

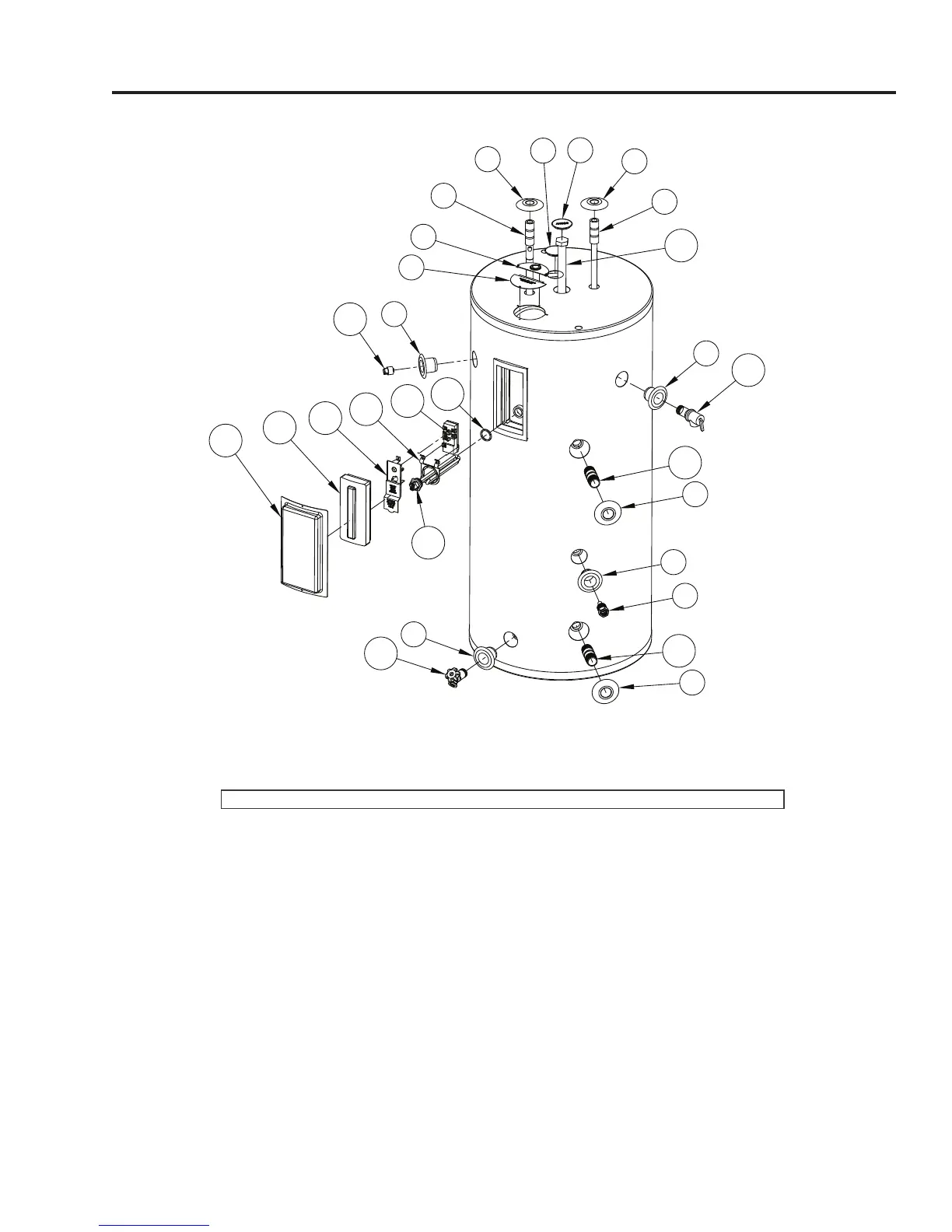

Table 7:RSID50 Parts
1 Sensor Immersion Well (solar) 11 T&P Relief Valve
2
Leak Detector 12 Pipe Nipple (plastic-lined)
3 J-Box Cover 13 Drain Valve
4 J-Box Cover (w/ conduit hole) 14 Access Cover
5 Hot Outlet with Anode 15 Foam Dam Cover
6 Finish Ring 16 Thermostat Cover
7 Cap (blank) 17 Heating Element
8 Cap ("ANODE") 18 Thermostat Mounting Bracket
9 Cold Inlet with Diptube 19 Thermostat
10 Anode Rod 20 Heating Element Gasket
21 Plug
Part Description
21
2
3
4
5
6
7
8
6
9
10
2
11
12
6
2
1
12
6
2
13
20
19
18
16
15
14
17
