INSTALLATION – SOLAR STORAGE TANK
35

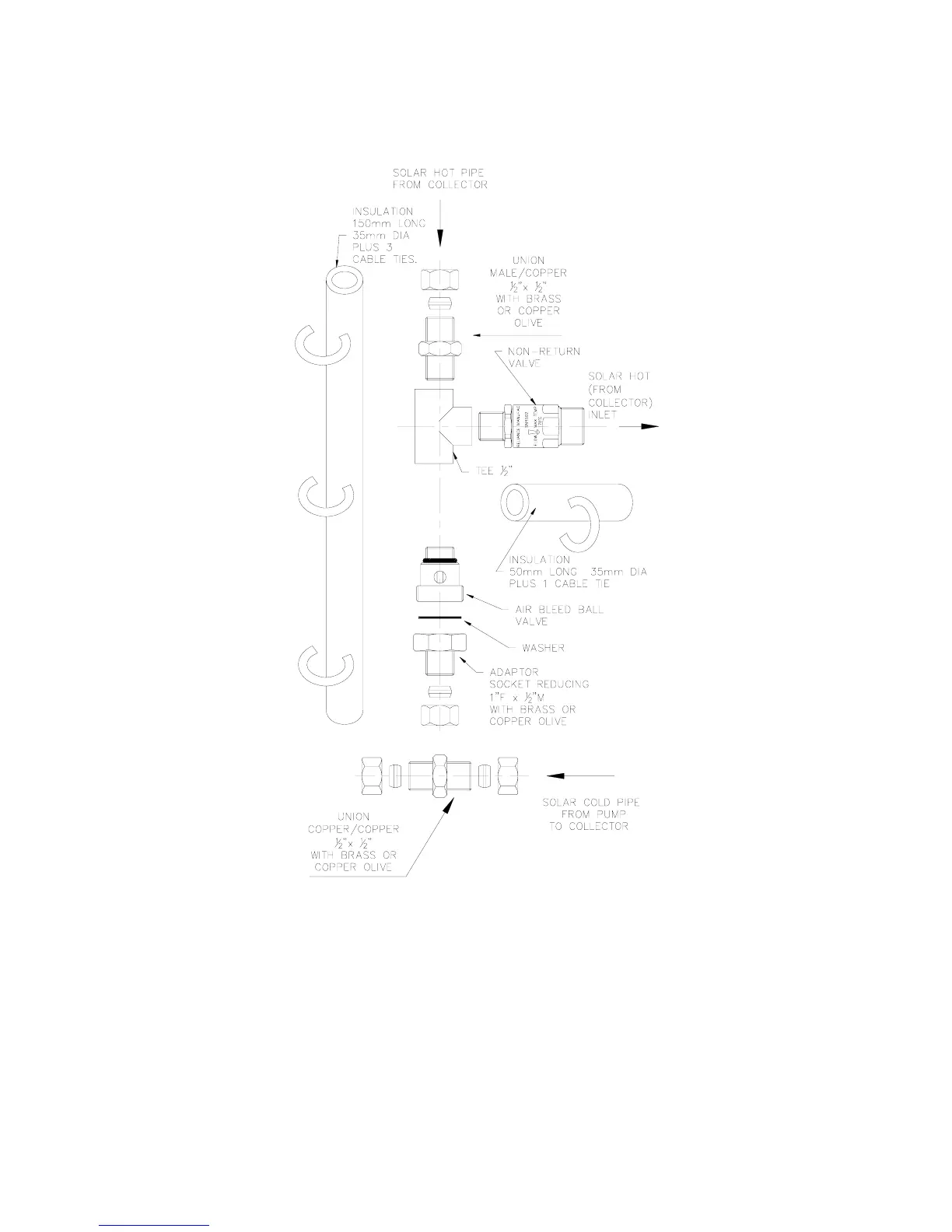

ASSEMBLY OF SOLAR HOT AND SOLAR COLD PIPE CONNECTIONS
• Use thread sealing tape or approved thread sealant.
• All olive compression fittings must use brass or copper olives.
• Ensure air bleed valve is open when filling collectors.
• Insulate the air bleed valve and 3 way tee assembly connected to the solar
hot pipe with the 150 mm long x 35 mm diam insulation and the solar non
return valve at the solar hot (from collector) inlet of the solar storage tank
with the 50 mm long x 35 mm diam insulation. Secure the insulation with the
cable ties supplied.
