8

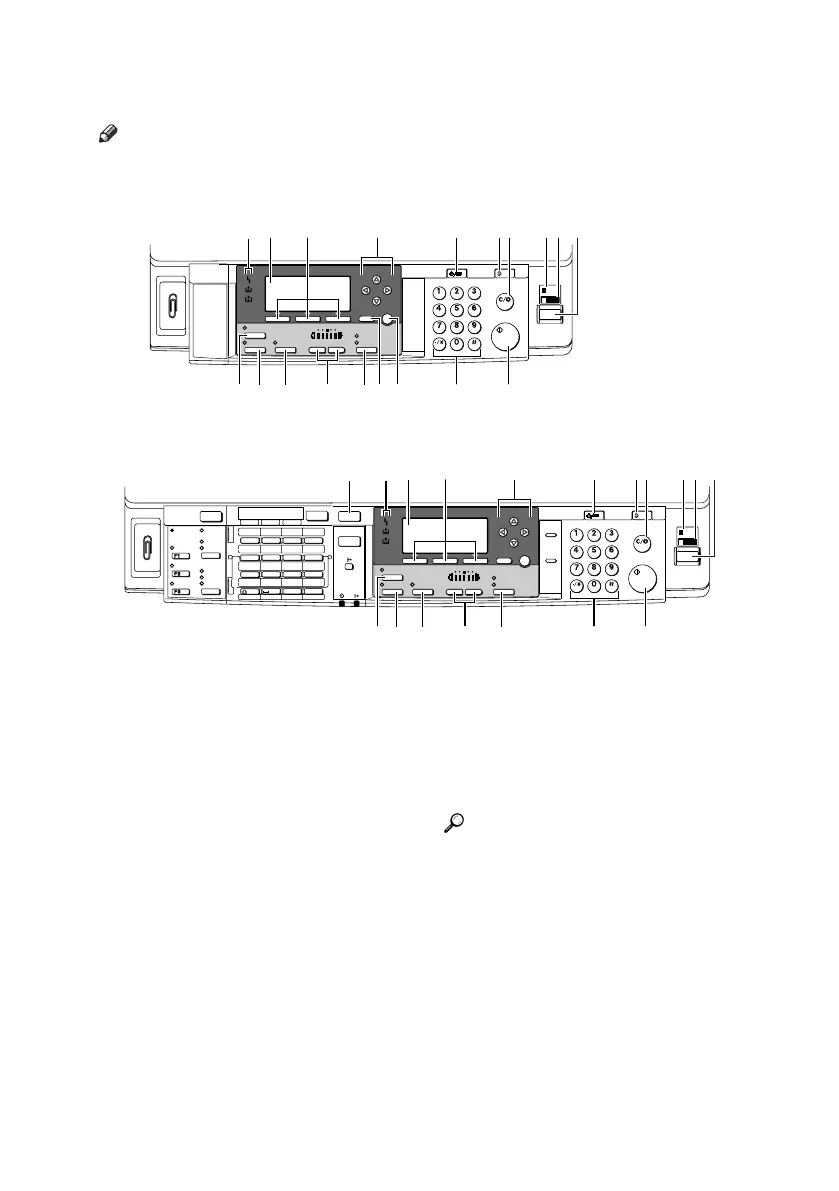

Control Panel
Note
❒ These illustrations show Type 3.
❖
❖❖
❖ Copier only
❖
❖❖
❖ Options fully installed
1. {
{{
{Copy}
}}
} key
Press to activate the copier function.
2.
Indicators
Display errors and machine status.
• h: Error indicator
See “Control Panel”, General Settings
Guide.
• D: Add Toner indicator
See p.47 “D Adding Toner”.
• B: Load Paper indicator
See p.43 “B Loading Paper”.
3.
Display
Displays operation status and messages.
4.
Selection keys
Correspond to items on the display. Press
to select the corresponding item.
5.
Scroll keys
Press to select an item.
{
{{
{U
UU
U}
}}
}: scroll upward
{
{{
{T
TT
T}
}}
}: scroll downward
{
{{
{V
VV
V}
}}
}: scroll right
{
{{
{W
WW
W}
}}
}: scroll left
Reference
See p.10 “Reading the Display and
Using Keys”.
6.
{
{{
{User Tools/Counter}
}}
} key
Press to change default or operation pa-
rameters according to requirement.
7.
{
{{
{Clear Modes}
}}
} key
Press to clear the current settings.
8.
{
{{
{Clear/Stop}
}}
} key
Clear: clears an entered numeric value.
Stop: stops copying.
OK
Combine/
Series
Duplex
Sort
Lighter Darker
Tex t
Original
ABC DEF
MNOJKLGHI
WXYTUV
OPER
PRS
On
Clear
Modes
User Tools/
Counter
Clear/Stop
Start
Enter
Main
Powe r
Cancel
23 4 5 6 78
15 16 17 18 19 20
91011
13 1412
AAI042S
On Hook Dial
Pause/
Redial
Receive File
Detail
Standard
Fine
OK
05 06 07 08
09 10 11 12
13 14 15 16
SymbolsSpaceShift
01 02 03 04
@.
_
_
ABC DEF GHI JKL
MNO PQR STU VWX
YZ
- &@.
_
Facsimile
Scanner
Printer
Copy
Combine/
Series
Duplex
Sort
Lighter Darker
Tex t
Original
ABC DEF
MNOJKLGHI
WXYTUV
OPER
PRS
On
Clear
Modes
User Tools/
Counter
Clear/Stop
Start
Enter
Main
Powe r
Job
Information
Search
Destination
Check
Destination
Immediate
Trance.
Memory
Trance.
Cancel
Commu-
nicating
Transmission
Stamp
Start Manual
Reception
Switch
RX Mode
1234 5 6 789
15 16 17 18 19 20
13 1412
10 11
AAI041S
KirC2_ENcopyF_FM.book Page 8 Wednesday, April 27, 2005 7:04 PM
