2.Replacement and Adjustment

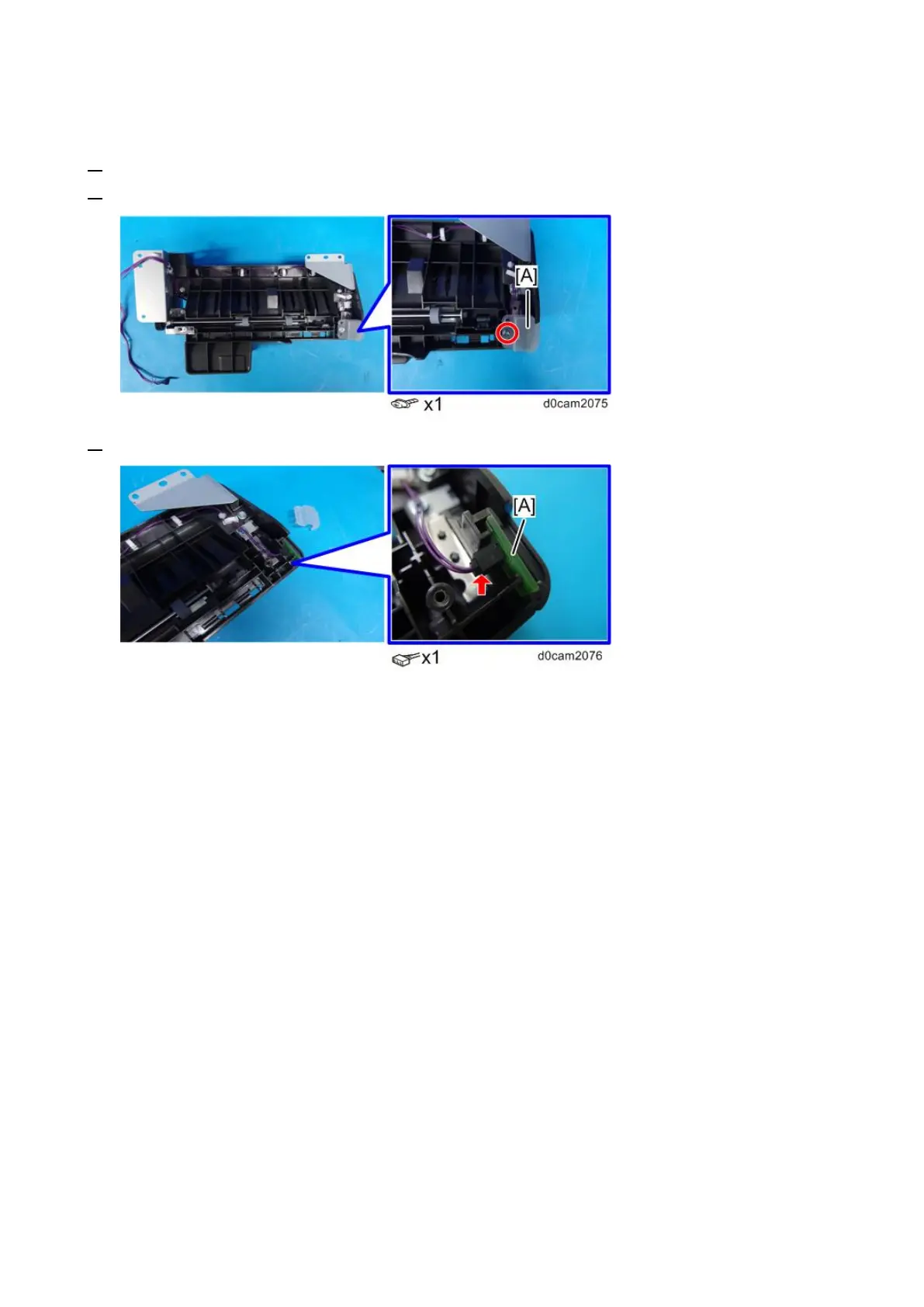

1-Bin LED Board

1. Remove the 1-Bin tray unit. (See “1-Bin Tray BN1040” in the mainframe service manual)

2. Remove the 1-bin LED board cover [A].

3. Remove the 1-bin LED board [A].
