OP-P1/MF1 Training
Slide 91

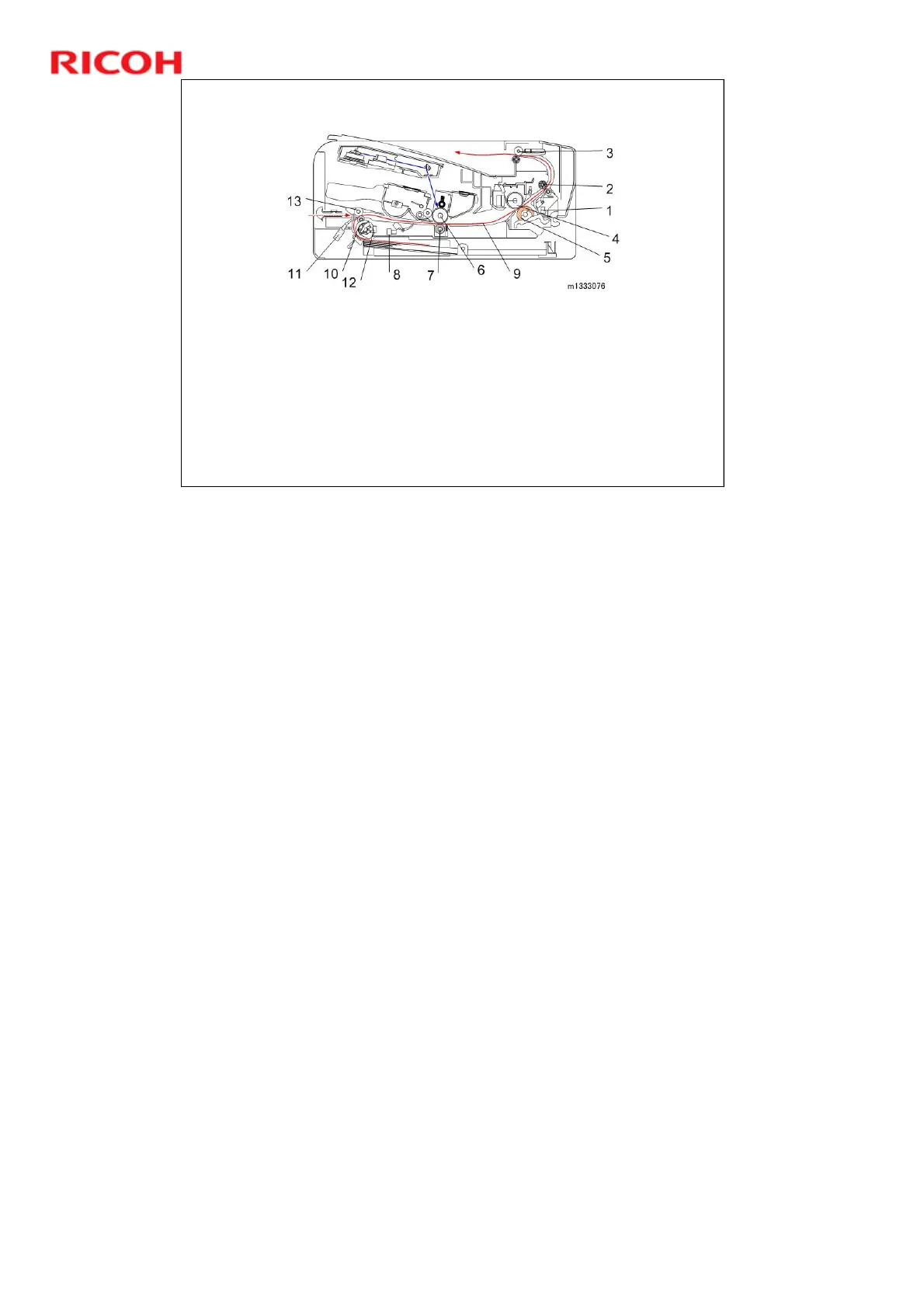

Mechanism - 1
The main motor drives the feed roller (10) to feed paper from the
tray.
Only one sheet passes the feed roller and friction pad.
The registration sensor (8) detects the leading edge of the paper.
This triggers the laser unit above which writes the image onto the
drum.
The registration sensor will trigger an error if the leading and
trailing edge of the paper do not pass within the correct time. (The
timing depends on the paper length.)
1. Paper Exit Sensor
2. Fusing Exit Roller
3. Paper Exit Roller
4. Hot Roller
5. Pressure Roller
6. Drum (inside AIO)
7. Transfer Roller
8. Registration Sensor
9. Paper
10.Feed Roller
11.By-pass Set Sensor
12.Paper End Sensor
13.Paper Transport Roller
