2.Replacement and Adjustment
21

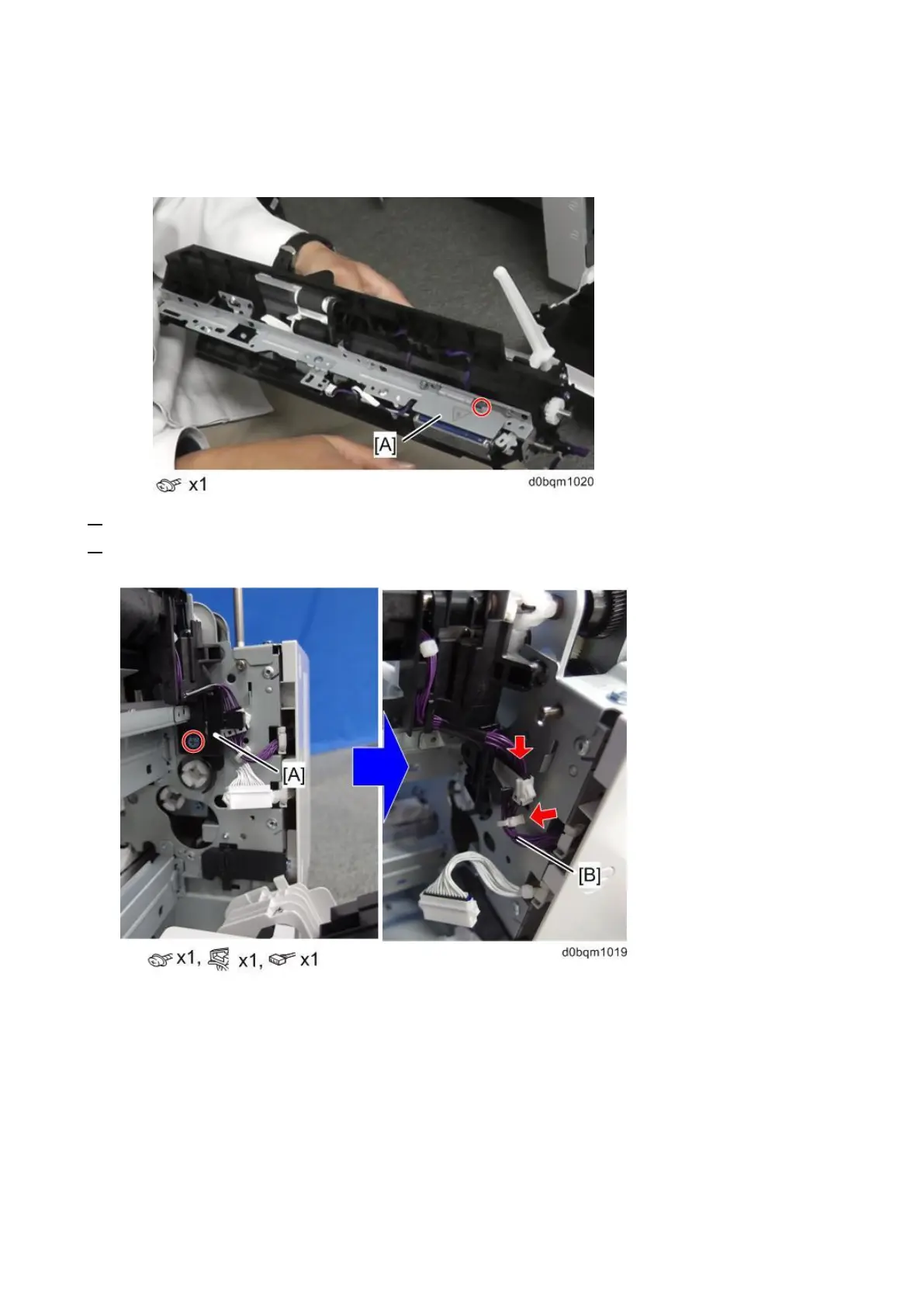

unit, be sure to remove the cover [A] of the solenoid.
1st paper feed unit: Attach the paper feed unit with a solenoid cover.
2nd paper feed unit: Attach the paper feed unit without a solenoid cover.
1. Remove the 2nd Paper feed unit (2nd Paper Feed Unit).
2. Remove the connector cover [A], and then remove the harness [B].
If it is difficult to remove the cover, you can remove its screw and simply unfasten the cover.
