Rigol DS1052D Service Guide

Chapter 5 Disassembly and Assembly RIGOL
Service Guide for DS1000E, DS1000D Series
5-5
Disassemble and Assemble the Upper and Rear
Covers

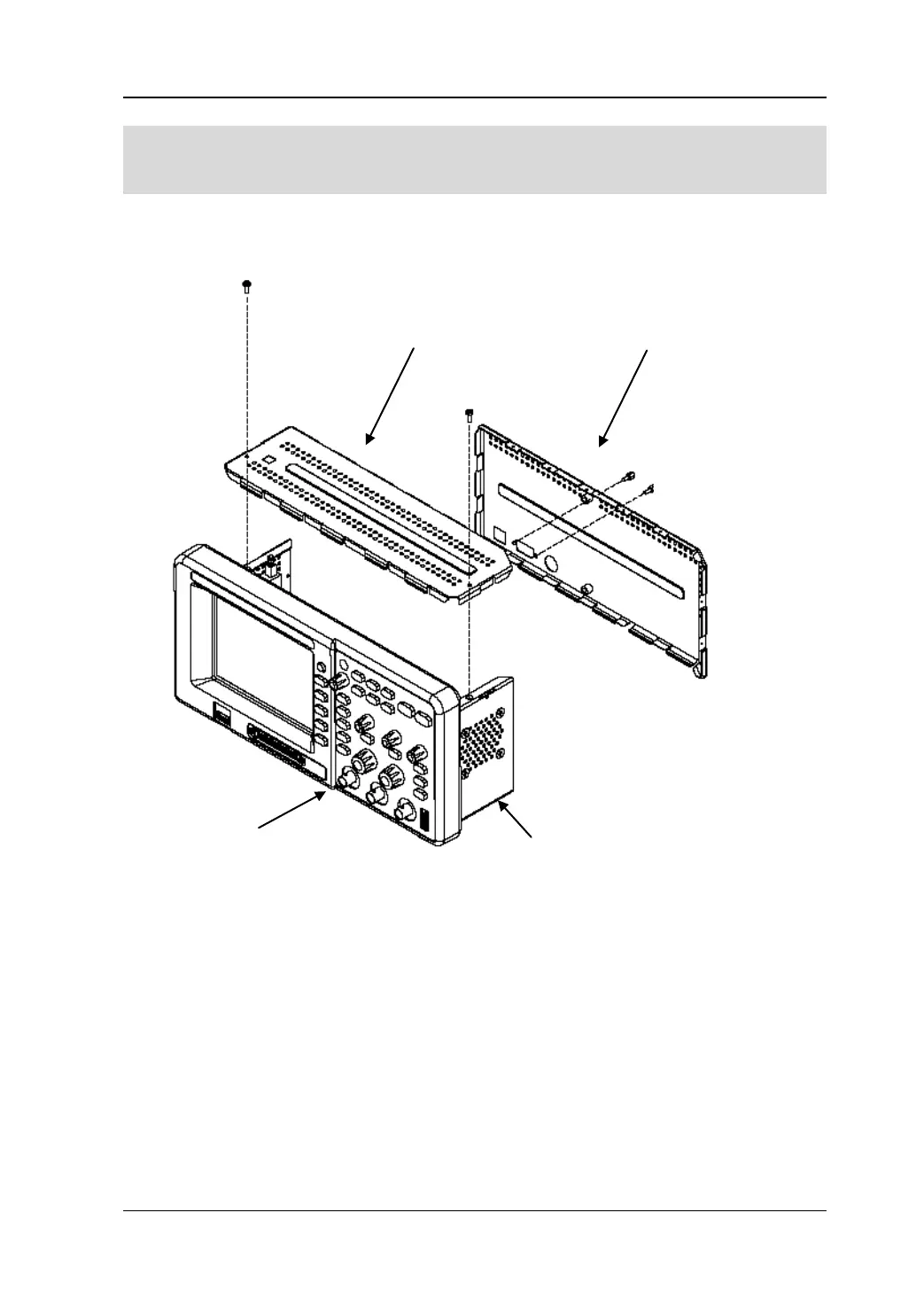

Figure 5-3 Disassemble and assemble the upper and rear covers
Parts Explanations:
③ Bolts at the interface of RS-232 (DB9 interface bolts): 2
④ Bolts at the upper cover (M3*6 Pan head Torx recess composite machine screws):
2
Disassemble steps:
1. Backout the two bolts ③ and remove the rear cover;
2. Backout the two bolts ④ using a TORX driver (T10); Then, remove the upper
cover.
④
③
③
④
Panel
Tank Body
Upper Cover
Rear Cover

Rigol DS1052D Specifications

General

Bandwidth	50 MHz
Channels	2
Sample Rate	1 GSa/s
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Math Functions	Addition, Subtraction, Multiplication, Division, FFT
Max Input Voltage	400 V (DC + AC Peak)
Power Supply	100-240 VAC, 45-440 Hz, 50 VA Max
Display	7 inch TFT LCD
Interface	USB Host, USB Device, RS232 (Optional)
Display Resolution	320 x 234
Input Impedance	1 MΩ ± 2%
