40 VA Series Indoor LS Manual

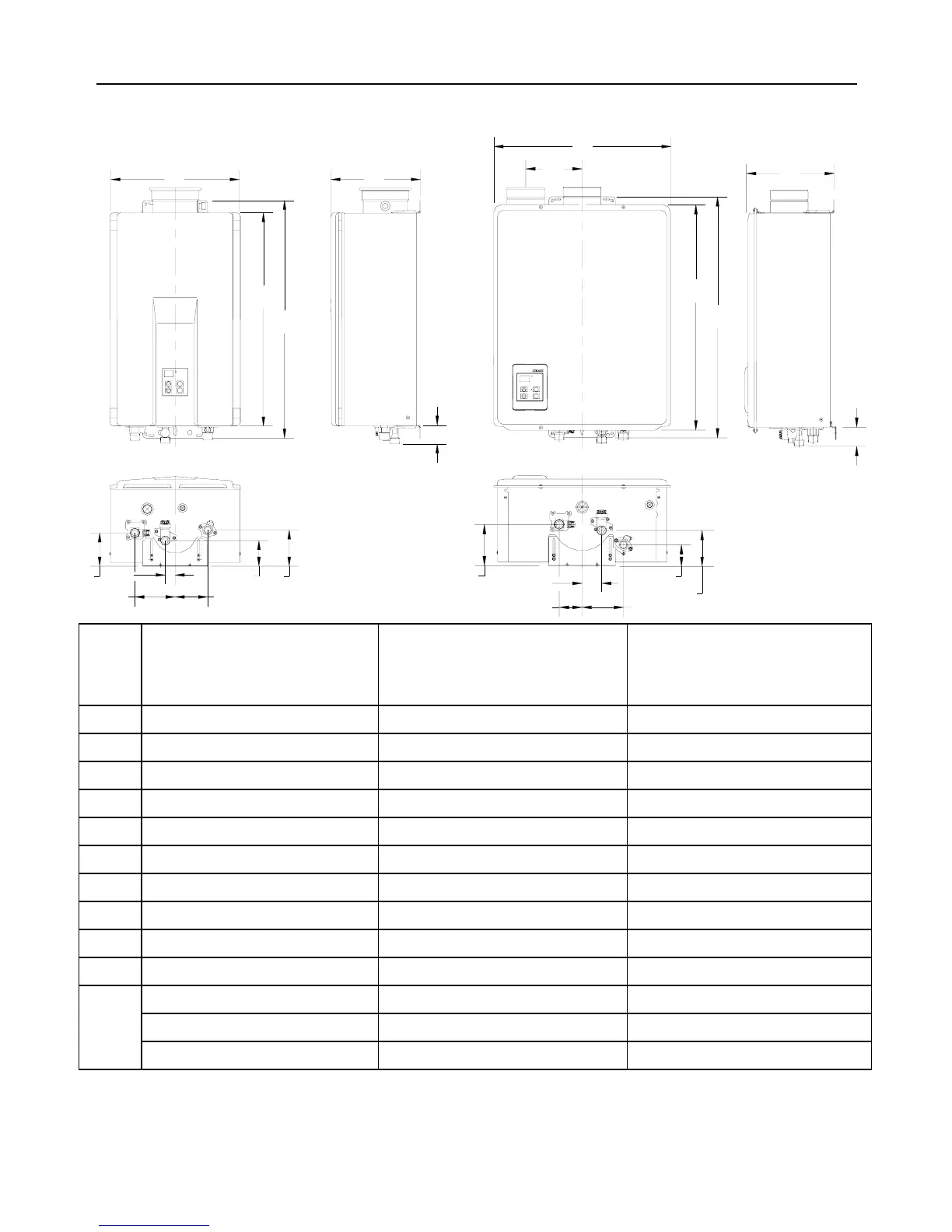

Dimensions
B
C
D
K
I
J
G
F
H
E
DIM DESCRIPTION
R50LSi
R75LSi
R94LSi
in (mm)
R98LSi
R98LSi-ASME
in (mm)
A Width 14 (355.6) 18.5 (470)
B Depth * 9.6 (244.5) 9.1 (230.5)
C Height - Unit 22.9 (582) 23.6 (600)
D Height - with brackets 25.5 (648.2) 25.2 (639.8)
E Hot Water Outlet - from wall * 3.6 (91) 4.3 (110)
F Hot Water Outlet - from center 4.3 (110) 2.4 (61)
G Cold Water Inlet - from wall * 2.8 (70) 3.7 (94)
H Cold Water Inlet - from center 1.1 (27) 2.0 (52)
I Gas Connection - from wall * 4.3 (109) 2.2 (56.2)
J Gas Connection - from center 3.5 (89) 4.3 (110)
From base to gas connection 1.6 (40) 1.6 (40)
From base to cold connection 2.0 (50) 2.0 (50)
From base to hot connection 1.6 (41) 1.6 (41)
K
* This is the minimum dimension from the wall. The wall bracket is adjustable to allow an additional 1.57 inches
(40 mm).
R50LSi, R75LSi, R94LSi R98LSi, R98LSi-ASME
10.8600
L
A
C
D
E
G
I
H
F
J
B
K
