Rockwell Automation TLSZL-GD2 User Manual

TLSZR/L-GD2
10000302608 Ver 00 July 2012 7

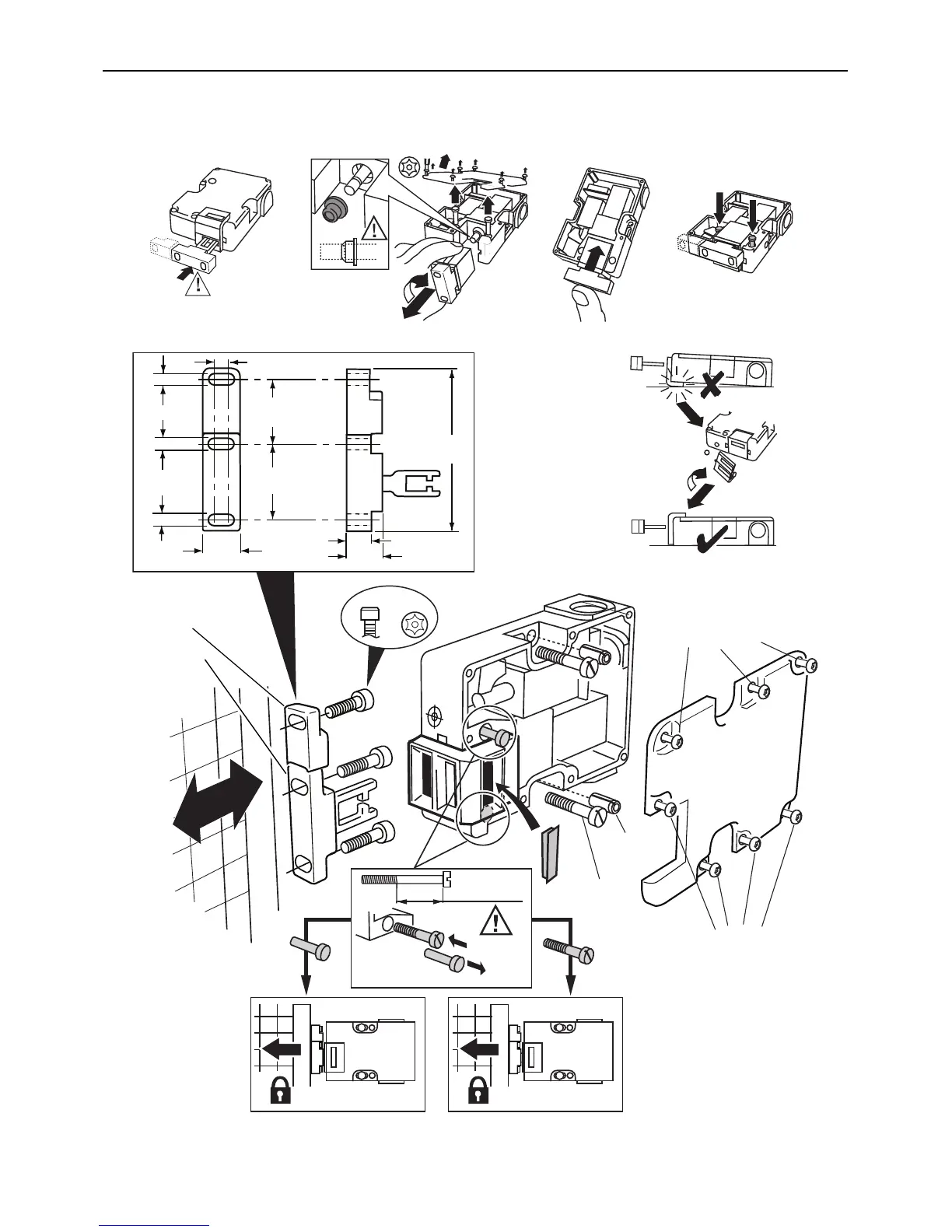

Mounting Information [mm (in.)]
1.2 Nm
(10.62 lb-in.)
2 x M5
1.4 Nm (12.39 lb-in.)
3 x M5
15 (0.59)
Steel bolts
Plastic pins
Fzh = 2000 N (450 lb)
Fzh = 1500 N (337 lb)
5 (0.20)
dia.
2 x M5
1.4 Nm
(12.39 lb-in.)
1.2 Nm
(10.62 lb-in.)
5.5 (0.22)
6 (0.24)
20
(0.79)
86.5
(3.4)
35
(1.38)
40
(1.57)
13 (0.51)
19
(0.75)
6 (0.24)
7 (0.28)
180
Target
Actuator

Rockwell Automation TLSZL-GD2 Specifications

General

Category	Locks
Voltage Rating	24V DC
IP Rating	IP67
Mechanical Life	1, 000, 000 operations
Material	Metal
Contact Configuration	2NC
Operating Temperature	-25°C to 60°C
Electrical Life	100, 000 operations
Operation	Key Operated
