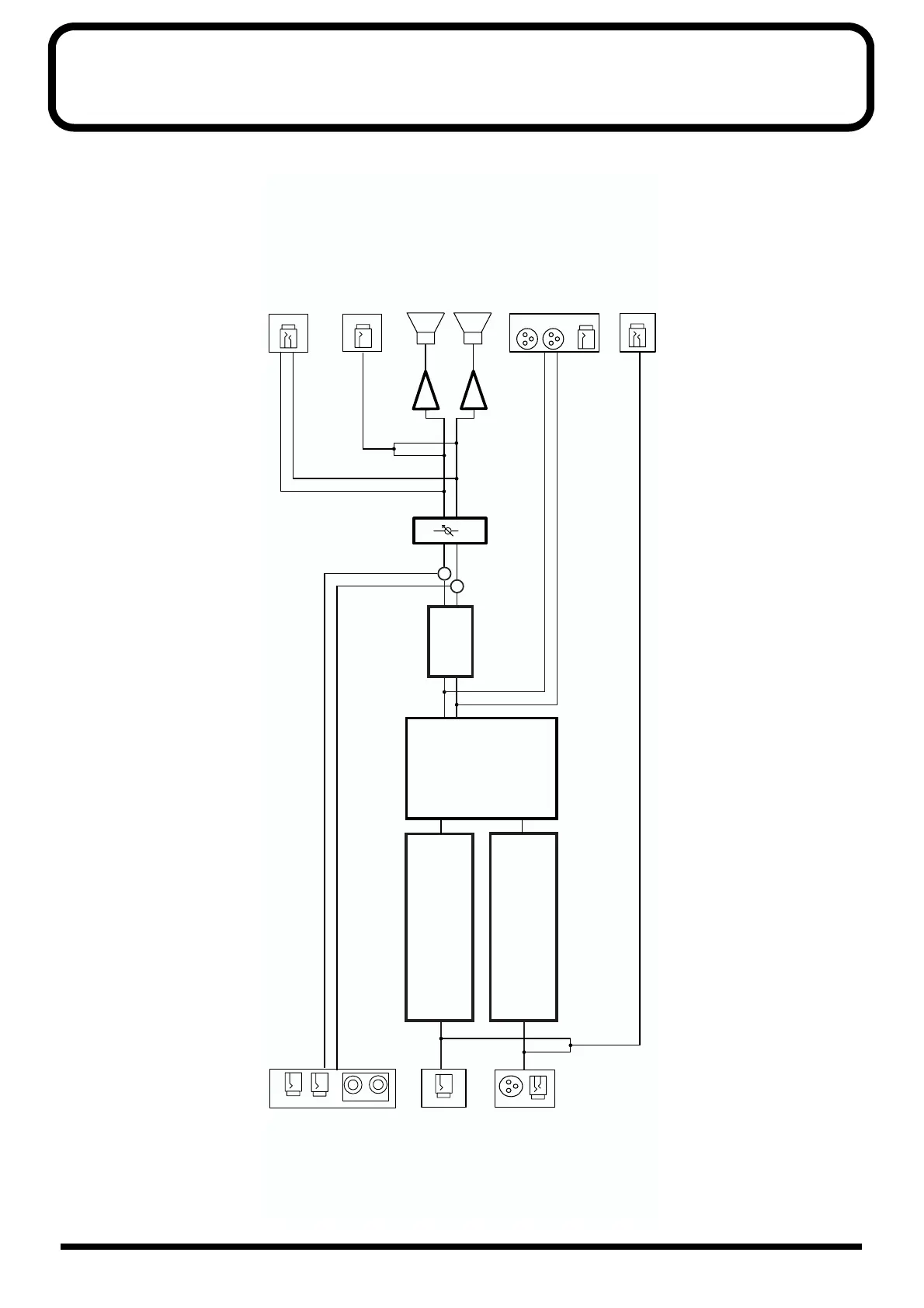

Block Diagram
fig.block
SPEAKER
GUITAR INPUT
L(MONO)
MIC/LINE INPUT
DI OUT/TUNER OUT
SUB WOOFER OUT
PHONES
R
REVERB/DELAY
CHORUS
ANTI FEEDBACK
L
R
MONO
STEREO
POWER AMP
GUITAR CHANNEL
MIC/LINE CHANNEL
L
R
VOLUME BASS MIDDLE TREBLE
VOLUME BASS MIDDLE TREBLE
STEREO EFFECT
AUX IN
LINE OUT
MASTER VOL
+
+
L
R

Roland Acoustic Chorus AC-60 Specifications

General

Effects	Chorus, Reverb, Delay
Weight	9.8 kg (21 lbs 10 oz)
Power Output	60W (30W x 2)
Speakers	2 x 6.5 inches
Input Channels	2
Controls	Volume, Bass, Middle, Treble, Anti-Feedback
Connectors	Footswitch Jack
Phantom Power	Yes
EQ	3-band EQ
Dimensions	364 mm x 270 mm x 268 mm (14-3/8 inches x 10-11/16 inches x 10-9/16 inches)
