17
Panel Descriptions
fig.RearPanel.eps
Security Slot ( )
http://www.kensington.com/
LINE OUT jacks
These are analog audio output jacks. You can connect them to external audio equipment (e.g., a stereo amp), or to a CD
recorder or similar device to record the BR-800’s analog output (p. 116).
FOOT SW/EXP PEDAL (Foot switch/Expression pedal) jack
A separately sold foot switch (BOSS FS-5U, Roland DP-2) or expression pedal (Roland EV-5, BOSS FV-500L/FV-500H)
can be connected here.
If a foot switch is connected, you can use your foot to start/stop song playback or to punch-in/out.
If an expression pedal is connected, you can use your foot to control the insert effect.
“Using a Foot Switch/Expression Pedal” (p. 129)
LINE IN jack
This is an input jack for analog audio signals. You can connect the output of your portable audio player or similar device
to this jack.
INPUT 1–4 jacks
These are microphone/line input jacks/connectors. Two types are provided: mono phone jacks (TRS balanced input)
and XLR connectors (balanced input).
The XLR connector of INPUT 4 is able to provide 48V phantom power. The mono phone jacks accept both balanced and
unbalanced connections.
“Using a Condenser Microphone (PHANTOM POWER)” (p. 140)
* You can’t use the mono phone jack and the XLR connector simultaneously for the same input. Do not connect plugs to both
simultaneously.

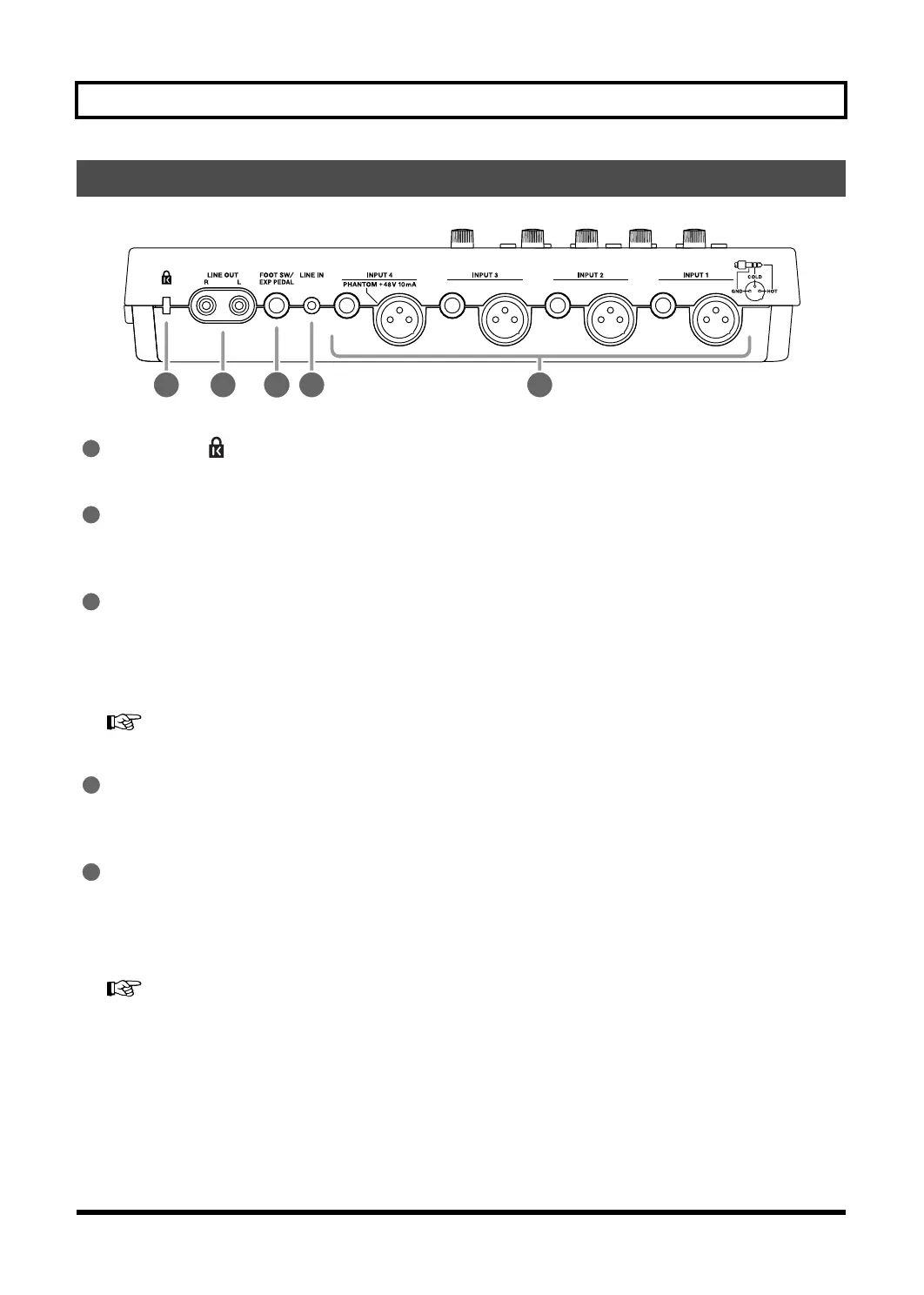

Rear Panel
4
5
2
31
1
2
3
4
5
