Roland CAMM-1 Pro PNC- 1410 User Manual

1
1 Structure & Spare Parts
1

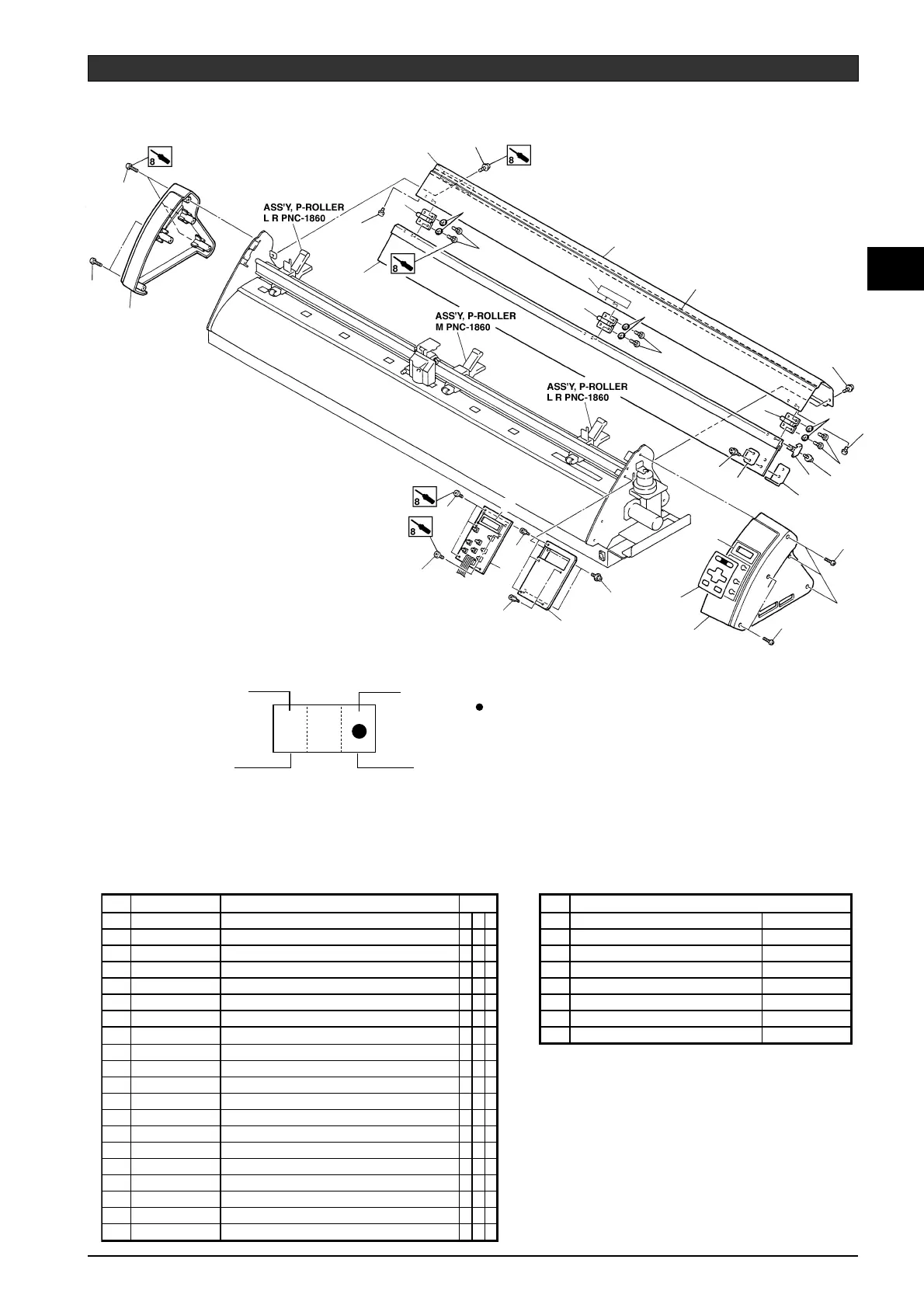

1-1 COVERS
1 Structure & Spare Parts
1
16
5
1
11
10
16
5
15
6
6
8
5
14
7
7
2
4
4
1
8
3
4
3
9
3
3
7
3
1
8
8
1
1
8
**coluwn shows as below.
2
PNC-1860
PNC-1410
PNC-1210
If the part is used,
it is marked " ".
If the part is not used,
it is blank.
2
13
12
PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts-
Parts No. Parts Name Parts Name
1 22355444SZ BASE OF SW PANEL • • • 1 SCREW BINDING HEAD Cr 3X4
2 22025148 COVER,FRONT PNC-1210 • 2 SCREW BINDING HEAD Cr 3X6
22025161 COVER,FRONT PNC-1410 • 3 SCREW BINDING HEAD BC 3X8
22025147 COVER,FRONT PNC-1860 • 4
SCREW BINDING HEAD+FW Ni 3X8
3 22025150 COVER,RAIL PNC-1210 • 5 SCREW DOUBLE SEMS BC 3X6
22025158 COVER,RAIL PNC-1410 • 6 SCREW DOUBLE SEMS BC 3X8
22025149 COVER,RAIL PNC-1860 • 7 TAPE SCOTCH TAPE #250 W=25MM
4 22065234 COVER,SIDE L PNC-1860 • • • 8 WASHER SPRING Cr M3
5 22065243 COVER,SIDE R PNC-1860 • • •
6 22325106 HINGE,001 • • •
7 22325108 HINGE,003 • • •
8 22505106 LABEL,CAMM-1 PRO NO.546 • •
9 22255302 LCD COVER • • •
10 15029402 LCD RCM2065R-A 16*2 • • •
11
7393321010 PANEL BOARD ASS'Y • • •
12 22055272 PLATE,F COVER PNC-1860 • • •
13 22055262 PLATE,MAGNET PNC-1860 • • •
14 22055180 PLATE,SW COVER PNC-1860 • • •
15 22665174 SHEET,SW PANEL PNC-1860 • • •
16 22155567 SPACER M3X5 • • •

Roland CAMM-1 Pro PNC- 1410 Specifications

General

Interface	RS-232C
Maximum Media Thickness	1.0 mm
Mechanical Resolution	0.0125 mm/step
Software Resolution	0.025 mm/step
Power Requirements	100 - 240 VAC, 50/60 Hz
Operating Temperature	5 to 40°C
Operating Humidity	35 to 80% RH (no condensation)
