Roland CAMM-1 Pro PNC- 1410 User Manual

32
4 Adjustment
4
9
10
Fix the SCREW B with a NUT .
11
Fix the SCREWS A at the side.

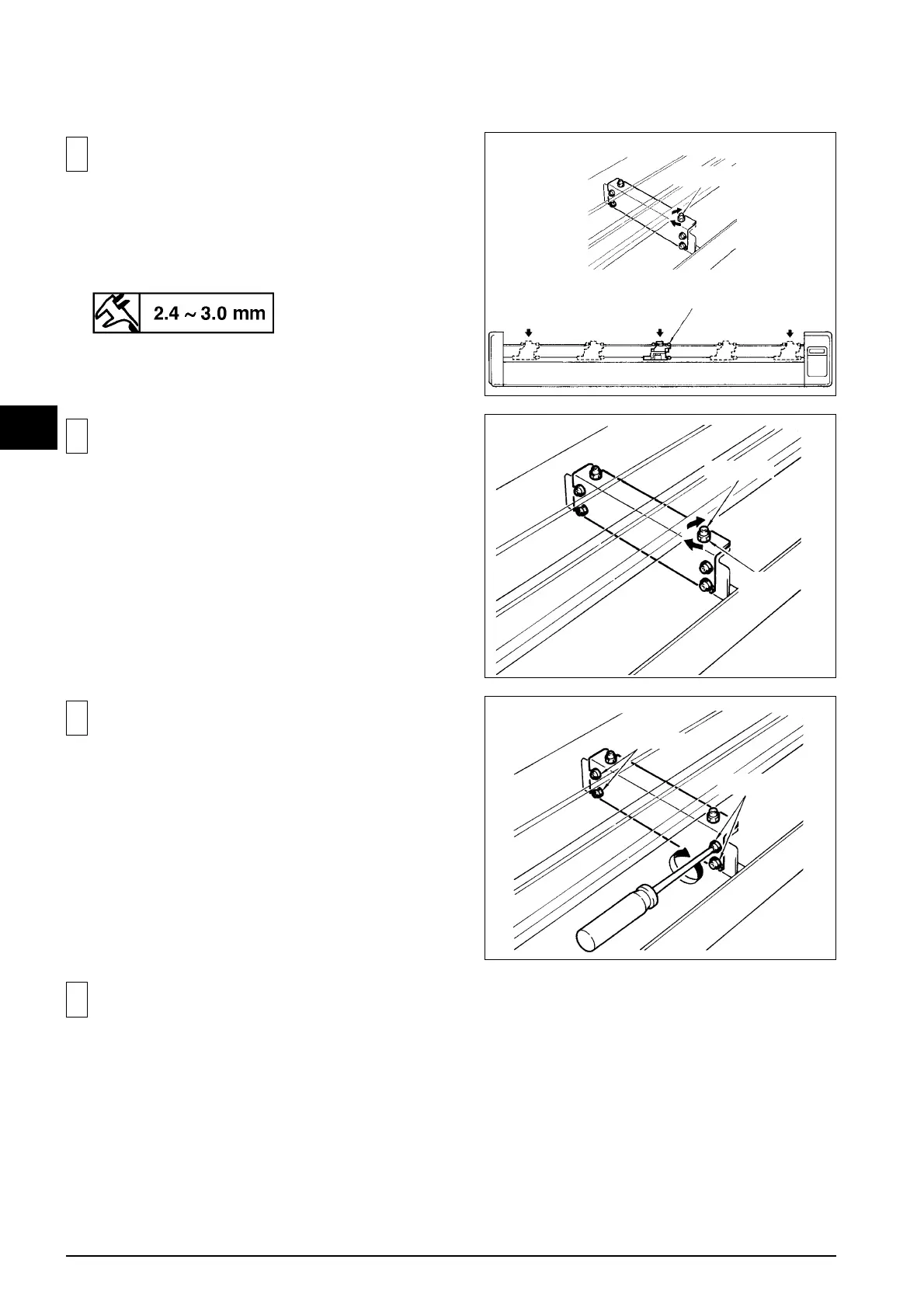

Adjust the Screw B so that the clearance between the pen tip
and the BED would be 2.4 ~ 3.0 mm at 5 positions (3
positions for PNC-1210 (Directed by arrows)).
NUT
SCREW B
SCREW A
SCREW A
PEN CARRIAGE
Screw B
12
Adjust Tool Height again. (Page 28)

Roland CAMM-1 Pro PNC- 1410 Specifications

General

Interface	RS-232C
Maximum Media Thickness	1.0 mm
Mechanical Resolution	0.0125 mm/step
Software Resolution	0.025 mm/step
Power Requirements	100 - 240 VAC, 50/60 Hz
Operating Temperature	5 to 40°C
Operating Humidity	35 to 80% RH (no condensation)
