Roland CAMM-1 Pro PNC- 1410 User Manual

34
4 Adjustment
4
4

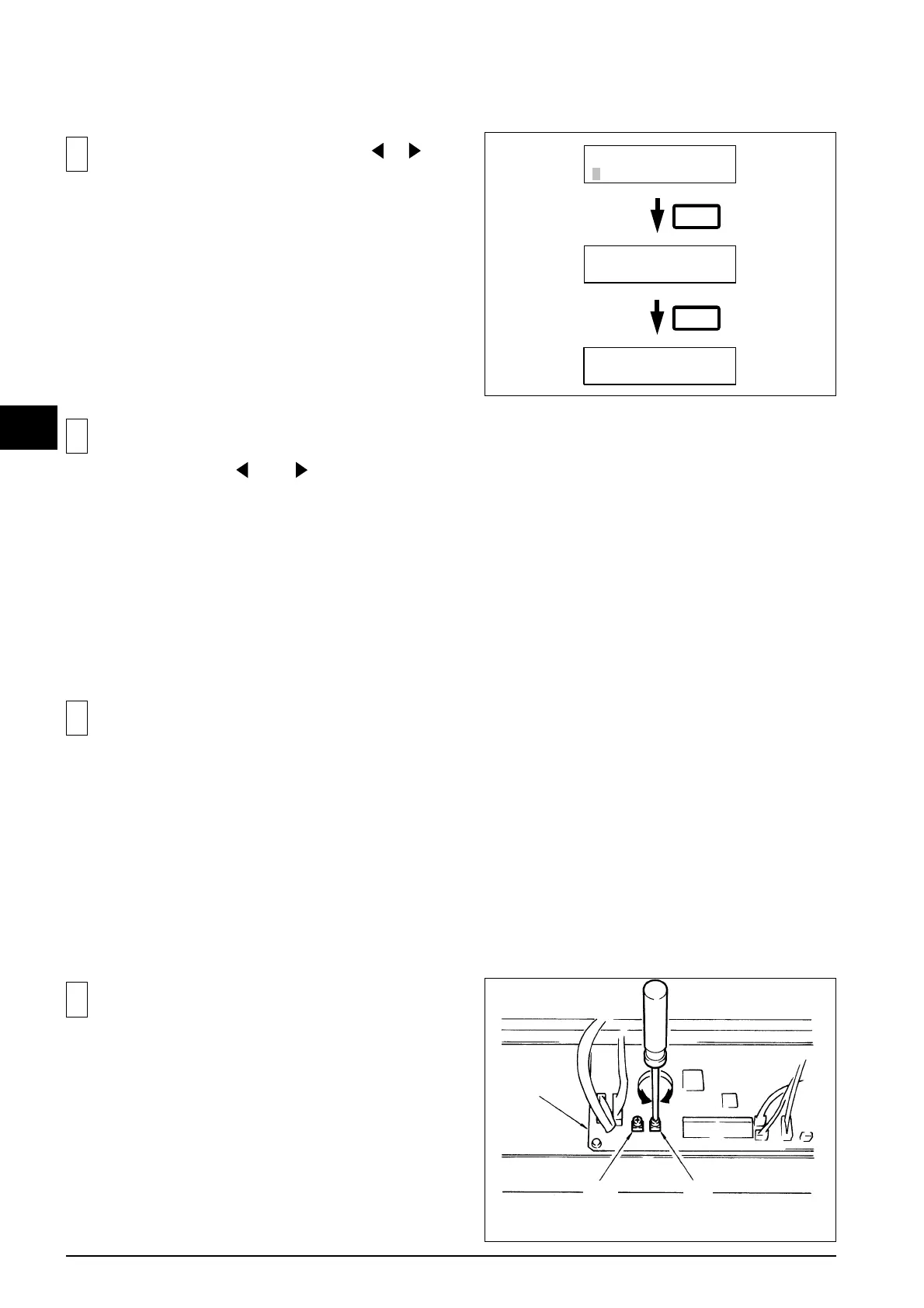

Turn on the power and select “ROLL” with [ ], [ ] keys
and push [ENTER] key, then the [SETUP] key.
ENTER
PRESS SETUP KEY
SELECT SHEET
ROLL EDGE PIECE
SETUP
LOADING SHEET
ROLL
5
7
Remove the FRONT APRON and put VR1 and VR2, which
are on the MAIN BOARD ASS'Y , at the center.
Move the PEN CARRIAGE to the position where the Tool
Height was adjusted.
It can be moved with [ ] and [ ] keys after selecting
“ORIGIN SET” menu.
6
Turn off the power.
MAIN BOARD
ASS'Y
VR2
VR1

Roland CAMM-1 Pro PNC- 1410 Specifications

General

Interface	RS-232C
Maximum Media Thickness	1.0 mm
Mechanical Resolution	0.0125 mm/step
Software Resolution	0.025 mm/step
Power Requirements	100 - 240 VAC, 50/60 Hz
Operating Temperature	5 to 40°C
Operating Humidity	35 to 80% RH (no condensation)
