Roland CAMM-1 Pro PNC- 1410 User Manual

53
6 Trouble Shooting
6

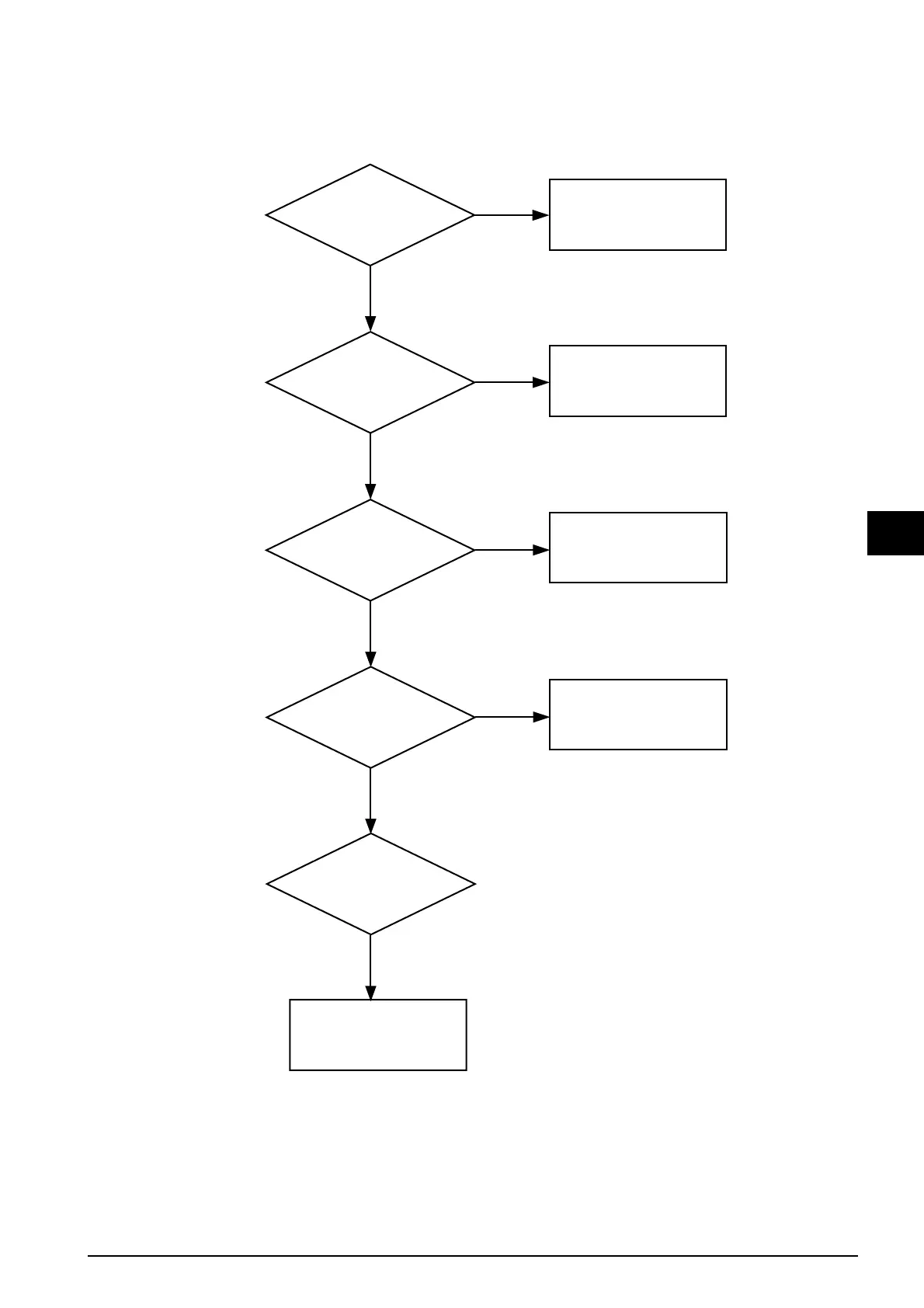

• Pen up/down
Is there
cut-line or bad
contact in CARRIAGE CABLE?
Is carraige solenoid OK?
Is there cut-line
in solenoid wire?
Is solenoid driver IC OK?
Replace CARRAIGE CABLE.
Replace the PEN CARRIAGE.
NO
YES
NO
YES
YES
NO
Is Pen Pressure
adjusted correctly?
NO
Replace U31 on
MAIN BOARD ASS'Y.
NO
YES
Adjust Pen Pressure.(P.33)
Replace the PEN CARRIAGE.

Roland CAMM-1 Pro PNC- 1410 Specifications

General

Interface	RS-232C
Maximum Media Thickness	1.0 mm
Mechanical Resolution	0.0125 mm/step
Software Resolution	0.025 mm/step
Power Requirements	100 - 240 VAC, 50/60 Hz
Operating Temperature	5 to 40°C
Operating Humidity	35 to 80% RH (no condensation)
