7
Panel descriptions

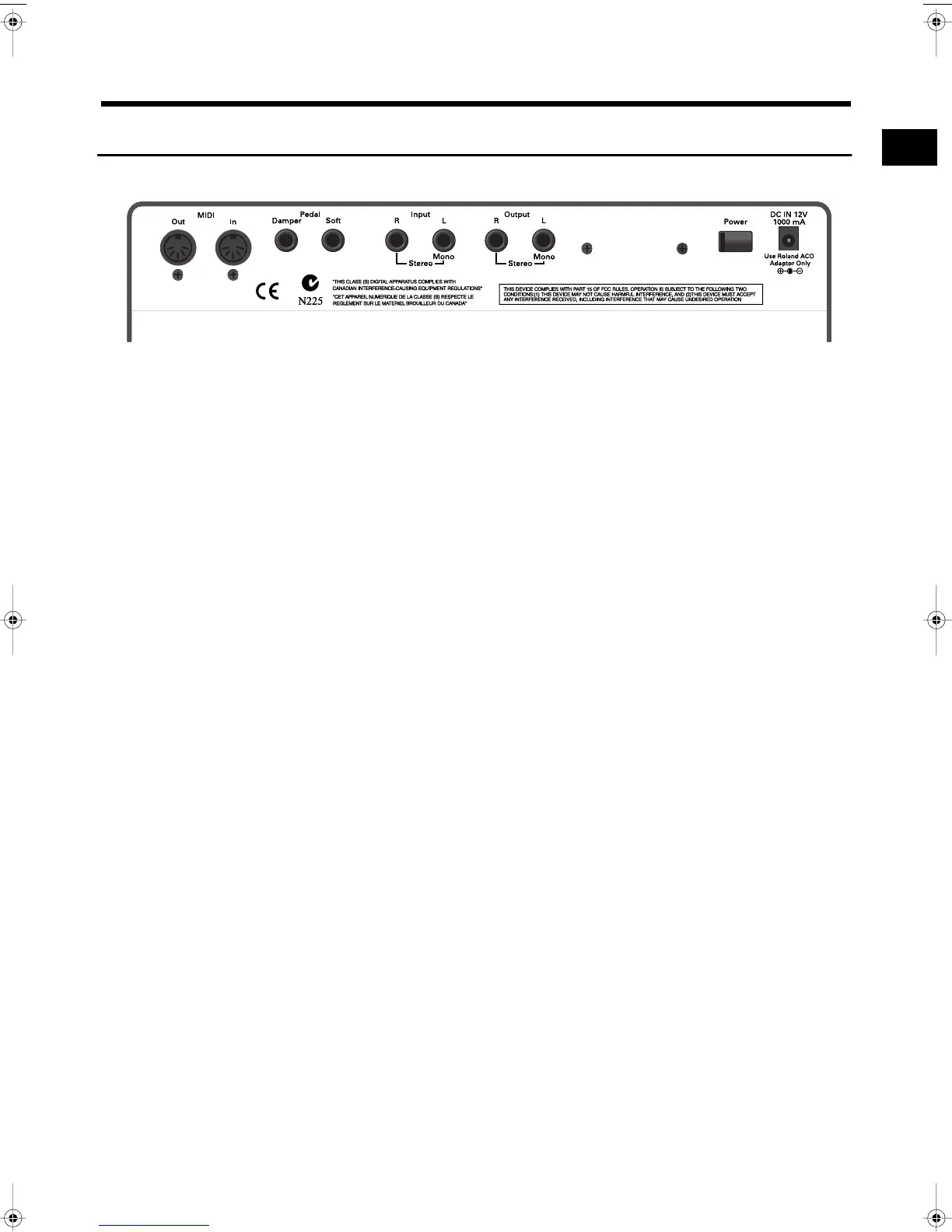

Rear panel
A
MIDI Out/In connectors
Connect to external MIDI devices to exchange perfor-
mance data (p. 28).
B
Pedal sockets (Damper & Soft)
Your ep-760 comes with one DP-2 footswitch that can be
used as Damper, Soft, or Sostenuto pedal (p. 8). In order
to use two pedal functions simultaneously, you need to
purchase an additional DP-2, DP-6 or BOSS FS-5U foot-
switch.
C
Input sockets
These jacks can be connected to another sound generat-
ing device or an audio device, so that the sound of that
device will be output from the ep-760’s speakers (p. 27).
If your sound source is mono (i.e. only has one output),
connect it to the L/Mono socket.
D
Output jacks
Allows you to output the piano’s sound to sound rein-
forcement equipment to obtain a more powerful sound.
These can also be connected to a tape recorder or other
recording device to record a performance (p. 27).
If your amplifier, etc., is mono (i.e. only has one input),
connect the ep-760’s L/Mono socket.
E
[Power] switch
Turns the power on/off (p. 9).
F
DC 12V IN
This is where you need to connect the supplied ACO
adapter. Do not use any other adapter.
AB CD EF
ep-760.GB Page 7 Thursday, May 16, 2002 8:03 PM
