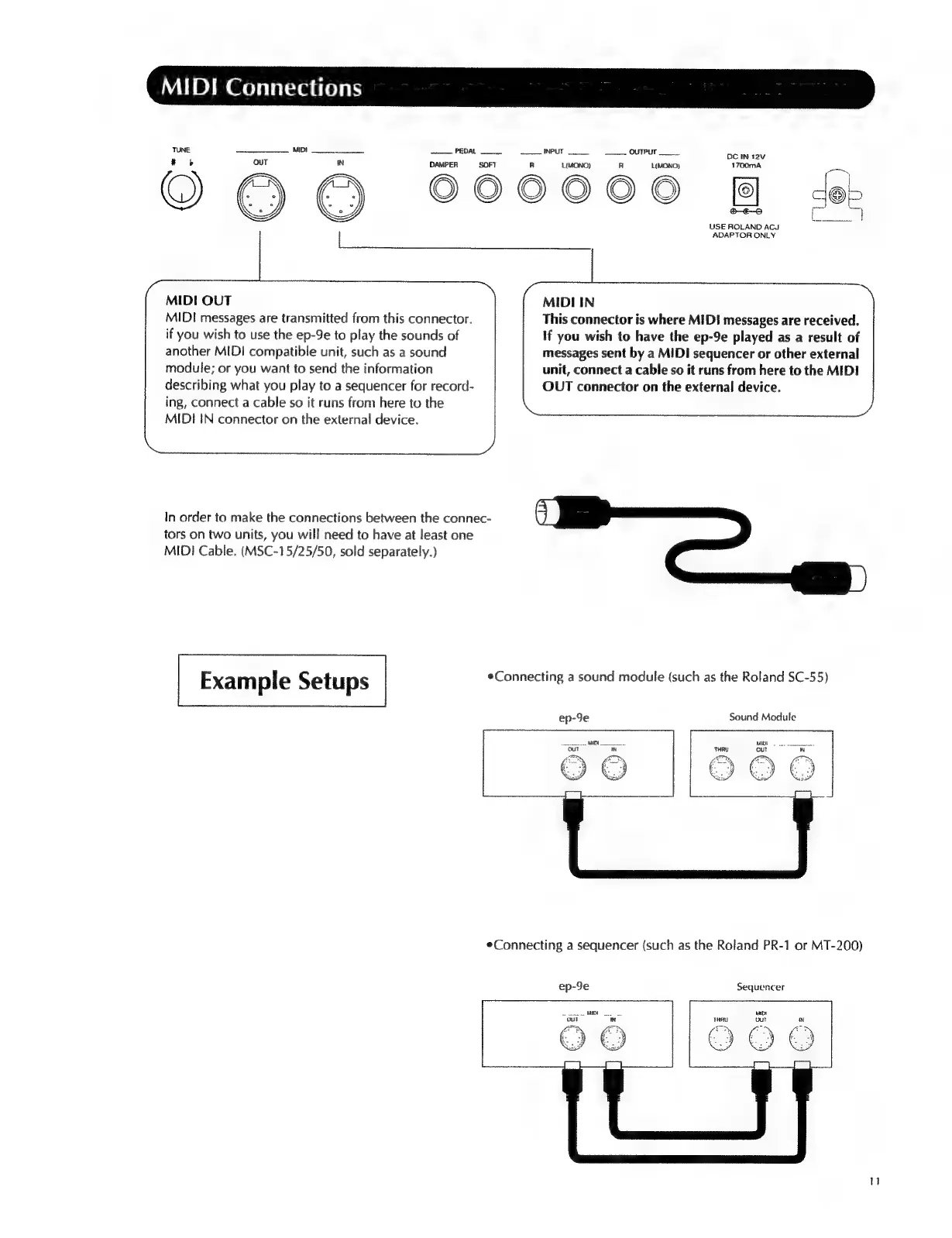

Roland EP-9e User Manual

MIDI
Connections
|
TUNE MIDI ——— PEDAL _____ INPUT OUTPUT _ .. DC IN 124
DAMPER SOFT R UMONOJ) A LIMONO) 1700mA
O O © 000000 dek
USE ROLAND ACJ
ADAPTOR ONLY
MIDI IN
This connector is where MIDI messages are received,
MIDI OUT
MIDI messages are transmitted from this connector.
if you wish to use the ep-9e to play the sounds of
another MIDI compatible unit, such as a sound
If you wish to have the ep-9e played as a result of
messages sent by a MIDI sequencer or other external
unit, connect a cable so it runs from here to the MIDI
module; or you want to send the information
OUT connector on the external device.
describing what you play to a sequencer for record-
ing, connect a cable so it runs from here to the
MIDI IN connector on the external device.
In order to make the connections between the connec-
tors on two units, you will need to have at least one
MIDI Cable. (MSC-15/25/50, sold separately.)
eConnecting a sound module (such as the Roland SC-55)
Example Setups
ep-9e Sound Module
Connecting a sequencer (such as the Roland PR-1 or MT-200)
ep-9e Sequencer
MIDI
