5
PANEL DESCRIPTIONS

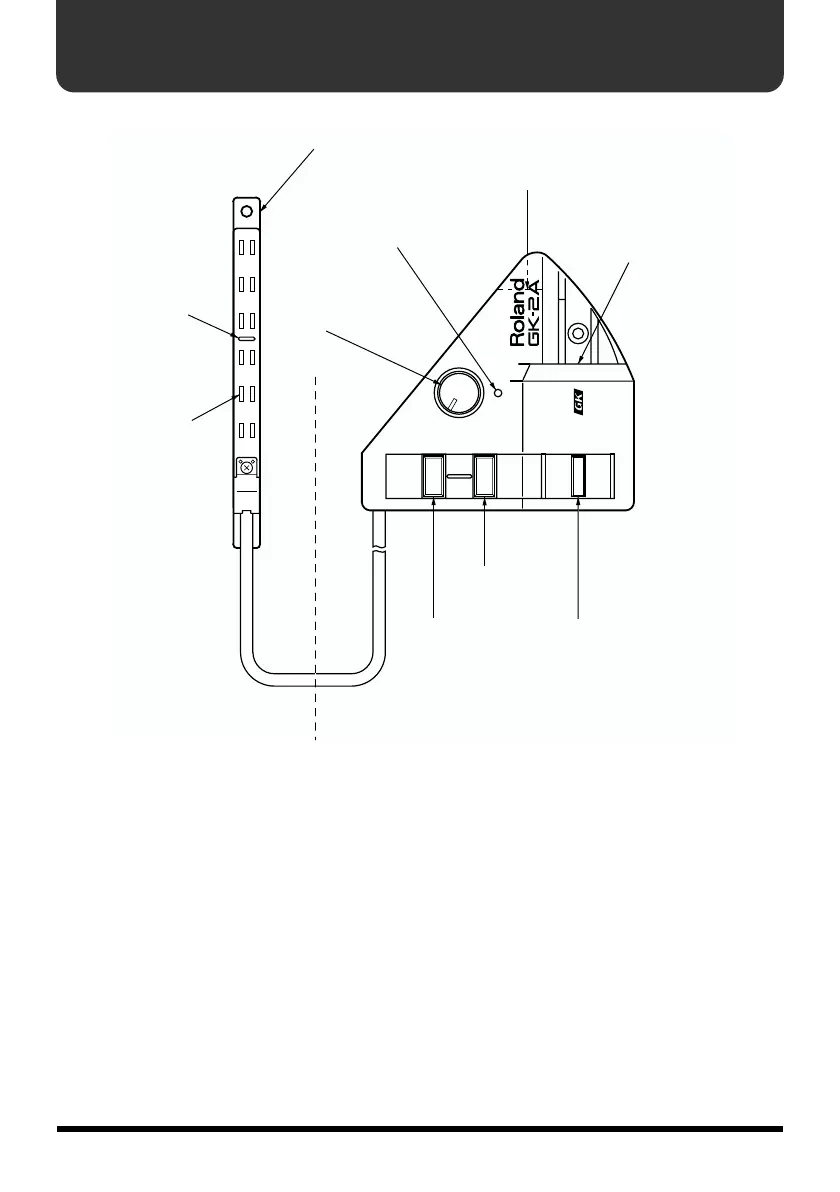

fig.01
(1) Divided Pickup
This Pickup detects the guitar’s string
vibrations. Carefully install the Divided Pickup
between the guitar’s bridge and the regular
bridge pickup.
(2) SYNTH VOL (Volume) Knob
The functions provided by the SYNTH VOL
knob will differ depending on the [GR] model
you are using.
Please refer to the owner’s manual for your
[GR].
(3) Power Indicator
This indicator lights when the [GR] and GK-2A
are connected using the C-13A/B cable.
(4)Normal Guitar Input Jack
Normal output signals from an electric guitar
are fed into the Controller Unit via this jack.
Use the supplied guitar cord.
(5) GK Connector
Connect the [GR] to this connector.
SYNTH VOL
DOWN/S1
UP/S2
MIX
GUITAR
SYNTH
GK Connector
(5)
Select Switch
(6)
(8)
S2 Switch
(7)
S1 Switch
(1)
Devided Pickup
(2)
Synth Volume
(4)
Normal Guitar Input Jack
(3)
Power Indicator
Center Marker
Yoke
Controller
Pickup
To Next Page
