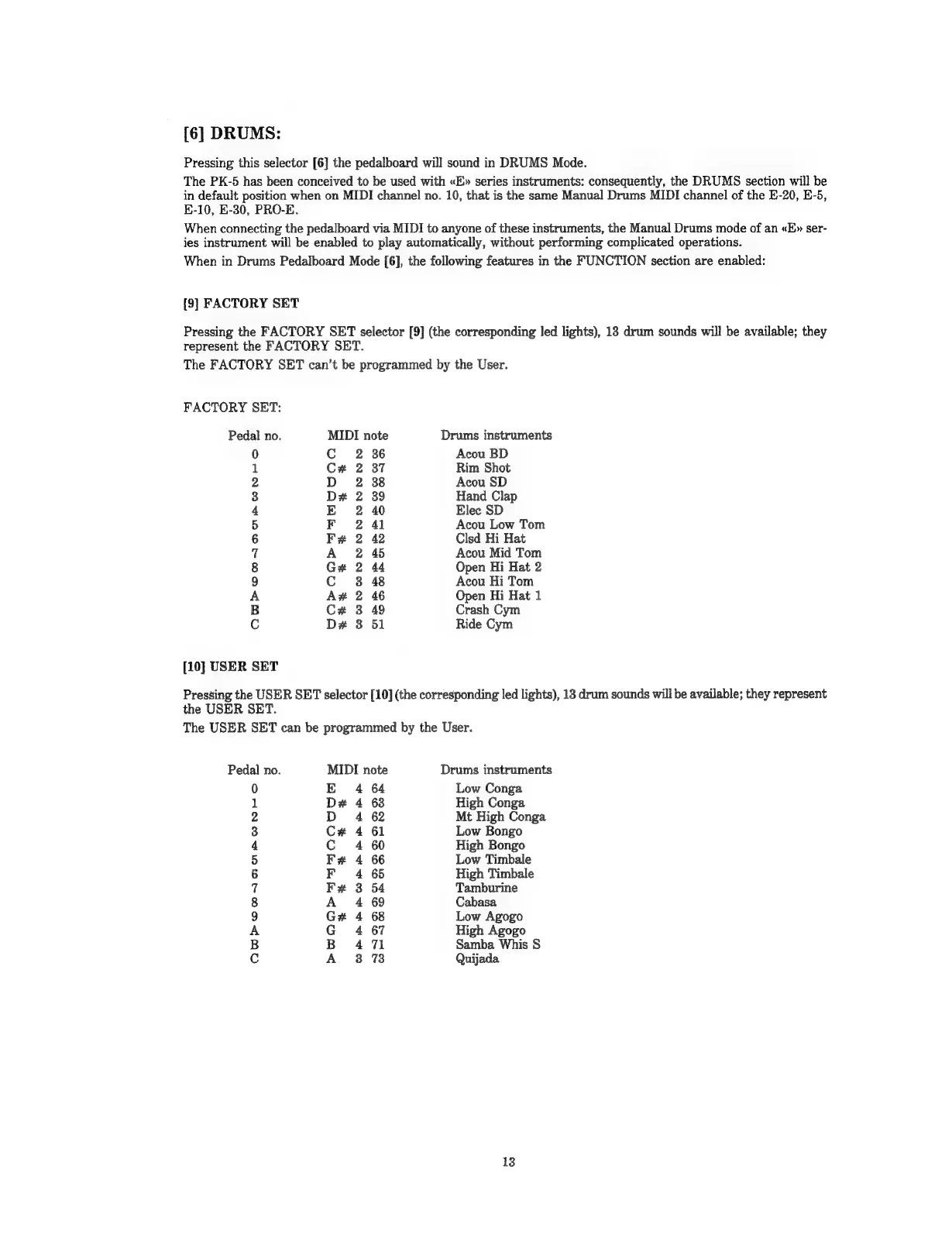

[6] DRUMS:
Pressing this selector [6] the pedalboard will sound in DRUMS Mode.
The PK-5 has been conceived to be used with «E» series instruments: consequently, the DRUMS section will be
in default position when on MIDI channel no. 10, that is the same Manual Drums MIDI channel of the E-20, E-5,
E-10, E-30, PRO-E.
When connecting the pedalboard via MIDI to anyone of these instruments, the Manual Drums mode of an «E» ser-
ies instrument will be enabled to play automatically, without performing complicated operations.
When in Drums Pedalboard Mode [6], the following features in the FUNCTION section are enabled:
{9] FACTORY SET
Pressing the FACTORY SET selector [9] (the corresponding led lights), 18 drum sounds will be available; they
represent the FACTORY SET.
The FACTORY SET can’t be programmed by the User.
FACTORY SET:
Pedal no. MIDI note Drums instruments
0 C 2 36 Acou BD
1 C# 2 87 Rim Shot
2 D 2 38 Acou SD
3 D# 2 39 Hand Clap
4 E 2 40 Elec SD
5 F 2 41 Acou Low Tom
6 F# 2 42 Clsd Hi Hat
7 A 2 45 Acou Mid Tom
8 G# 2 44 Open Hi Hat 2
9 C 8 48 Acou Hi Tom
A A# 2 46 Open Hi Hat 1
B C# 3 49 Crash Cym
Cc D# 8 51 Ride Cym
[10] USER SET
Pressing the USER SET selector [10] (the corresponding led lights), 18 drum sounds will be available; they represent
the USER SET.
The USER SET can be programmed by the User.
Pedal no. MIDI note Drums instruments
0 E 4 64 Low Conga
1 D# 4 63 High Conga
2 D 4 62 Mt High Conga
3 C# 4 61 Low Bongo
4 Cc 4 60 High Bongo
5 Fe 4 66 Low Timbale
6 F 4 65 High Timbale
7 Fe 3 54 Tamburine
8 A 4 69 Cabasa
9 G# 4 68 Low Agogo
A G 4 67 High Agogo
B B 4 71 Samba Whis S
Cc A 378 Quijada
13

Roland PK-5 Specifications

General

Number of Pedals	13
MIDI Channels	1-16
Pedals	13 velocity-sensitive pedals
MIDI Output	Yes
Type	MIDI Pedal Controller
Power Supply	AC Adaptor
Modes	Mono, Poly, Drum
Connectors	MIDI Out
