Owner’s Manual
27
MIDI reception (RC) filters
→[MIDI]
The RD-170 contains four parameters that allow
you to specify whether (on) or not (off) the fol-
lowing messages should be received when the
RD-170 is controlled by an external sequencer,
computer, etc.
(1) Press [EDIT] (lights), followed by [13], [14], [15]
or [16].
Press and hold the numeric button in question
to display the abbreviated function name.
(2) Press the [UPPER] (red) or [LOWER] (green)
button to select the part whose setting you
want to change.
(3) Use [DEC÷NO]/[INC÷YES] to select on (receive)
or off (do not receive).
(4) Press [EXIT] (or [EDIT]) to leave the Edit mode
or select the other part and change its setting
too.
Note: This setting can be saved (see p. 28).

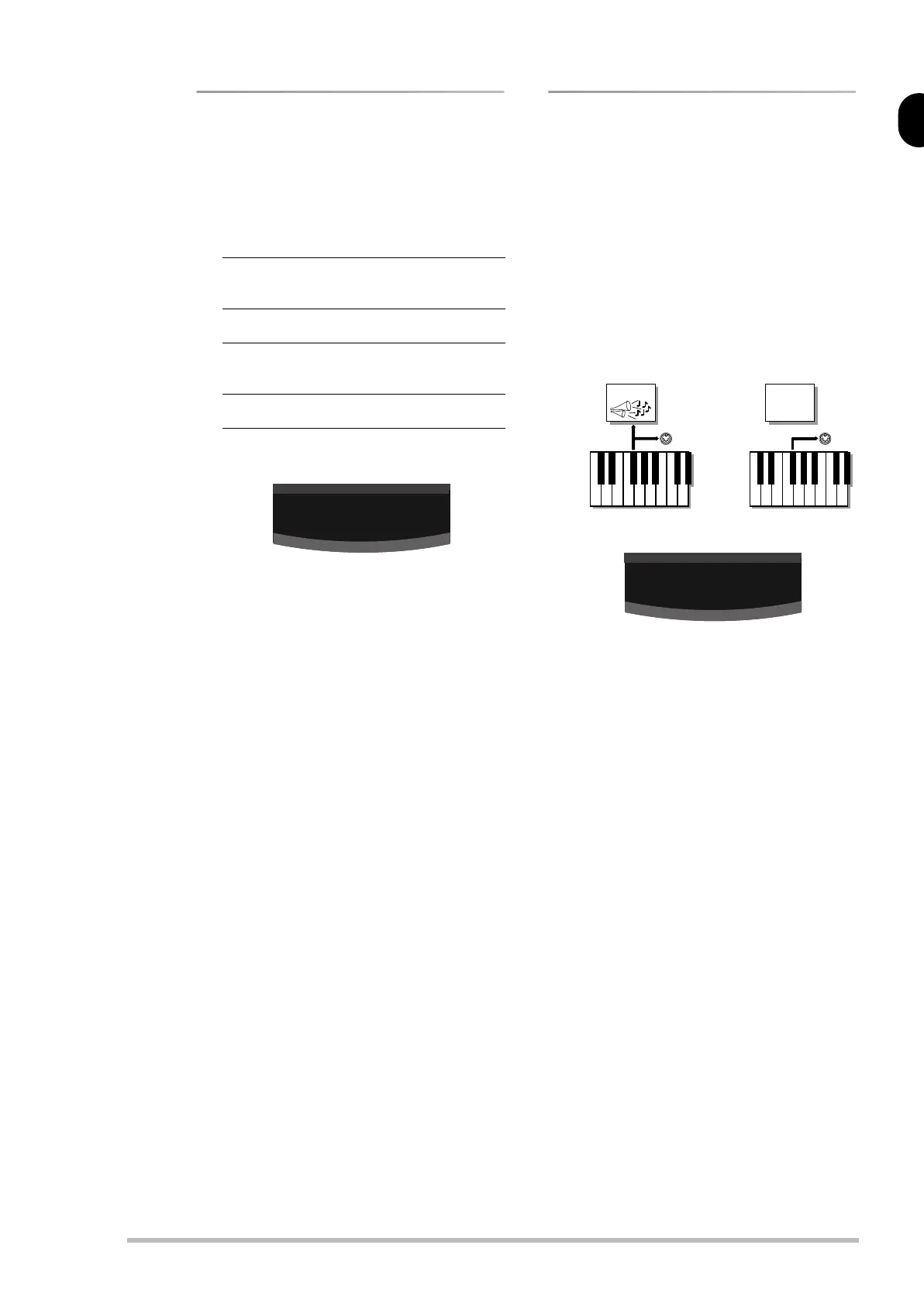

Local Control
→[MIDI]
The Local Control parameter allows you to establish
or remove the connection between the RD-170’s
keyboard/sequencer and the internal tone genera-
tor.
When set to on (default), playing on the RD-170’s
keyboard causes the corresponding notes to sound.
If you select off, the corresponding MIDI messages
are no longer sent to the internal tone generator –
but they are still transmitted to the MIDI OUT port
and hence to external MIDI instruments.
This parameter can be used for combinations involv-
ing one internal (Upper, for example) and one exter-
nal sound (Lower).
(1) Press [EDIT] (lights), followed by [SETUP].
Press and hold [SETUP] to display the abbrevi-
ated function name.
(2) Press the [UPPER] (red) or [LOWER] (green)
button to select the part whose setting you
want to change.
(3) Use [DEC÷NO]/[INC÷YES] to select on (Part con-
nected to the internal tone generator) or off
(connection broken).
(4) Press [EXIT] (or [EDIT]) to leave the Edit mode
or select the other part and change its setting
too.
Note: This setting can be saved. See below.
[13] PC rc: Refers to program change messages that
can be used for assigning internal sounds to the
Upper or Lower part.
[14] vOl-EHP rc: Refers to the reception of vol-
ume (CC07) and expression (CC11) messages.
[15] Sus-SOft-SOst rc: Refers to the reception
of Hold (CC64), Soft (CC67) and Sostenuto
(CC66) messages.
[16] Rev-chO rc: Refers to the reception of Reverb
Send (CC91) and Chorus Send (CC93) messages.
off
Sound source
MIDI OUT
LOCAL ON
LOCAL OFF
MIDI OUT
Sound source
Sound source Sound source
on
LOcal
RD-170 OM_GB Page 27 Monday, March 17, 2003 10:23 AM
