MX-1 I PARTS LAYOUT
13
CONNECTORS
A ...... 2461-4C
(010-036)
B ...... 2461-6C
(010-037)
C
...... 2461-BC
(010-038)
D ...... 5028-4A
(Friction type)
E ....... 5028-6A
(Friction type)
F
...... 2373-4A
(010-016)
G ....... 2373-6A
(010-017)
H ....... 2373-8A
(010-018)

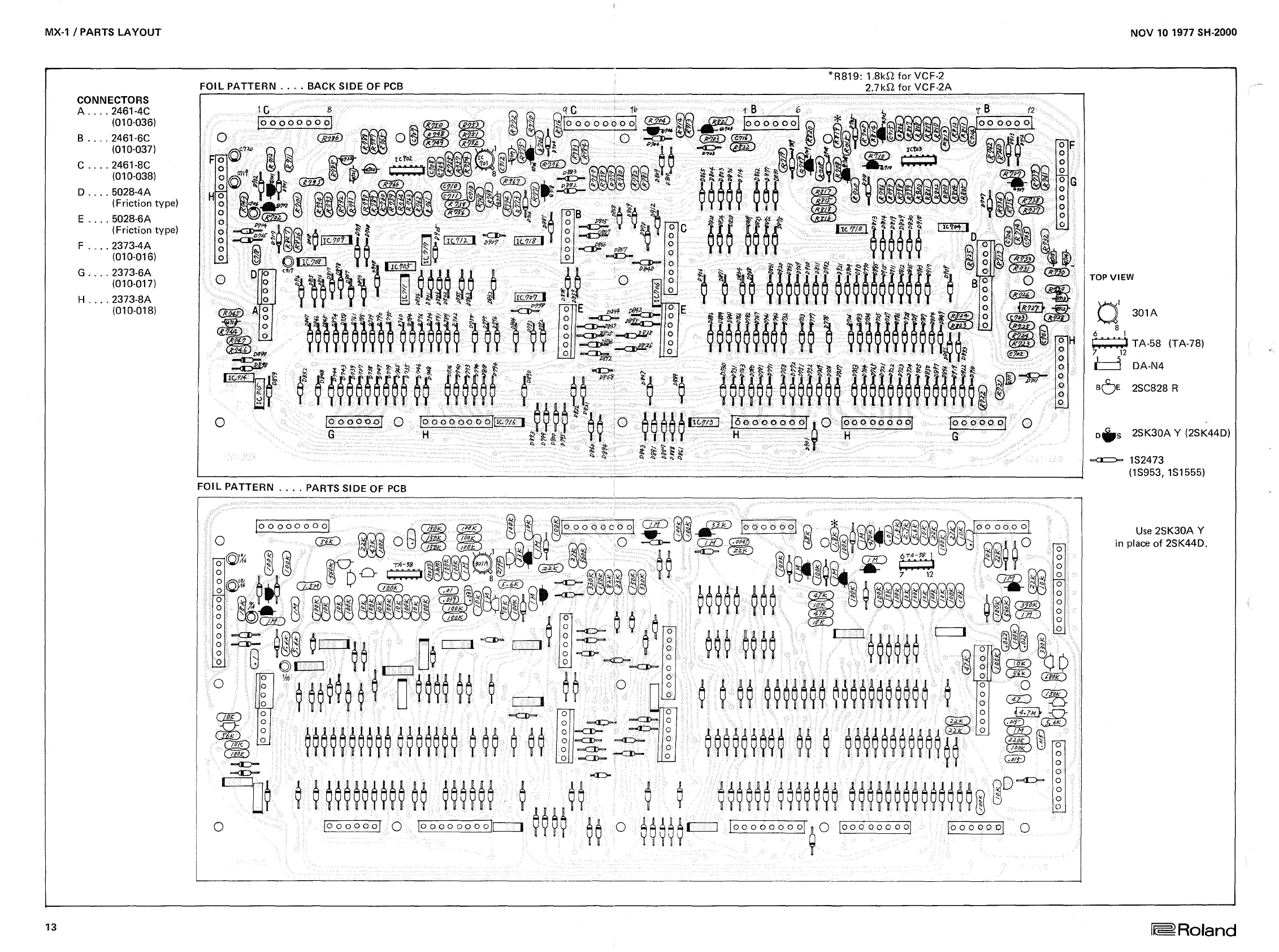

FOIL PATTERN ...... BACK SIDE OF PCB
FOIL PATTERN ..... PARTS SIDE OF PCB
*R819: 1 .. 8kS1 for VCF-2
2.7kS1 for VCF-2A
NOV 10 1977 SH-2000
TOP VIEW
Q
1
301A
8
6 1
I,\ ·,·.) TA-58 (TA-78)
7 12
t:=:::J DA-N4
s6E 25C828 R
oti.s 25K30A Y (25K44D)
=a:=:>= 152473
(15953, 151555)
Use 25K30A Y
in
place of 25K44D.
!@Roland
