DISASSEMBLY
NOV 10 1977 SH-2000

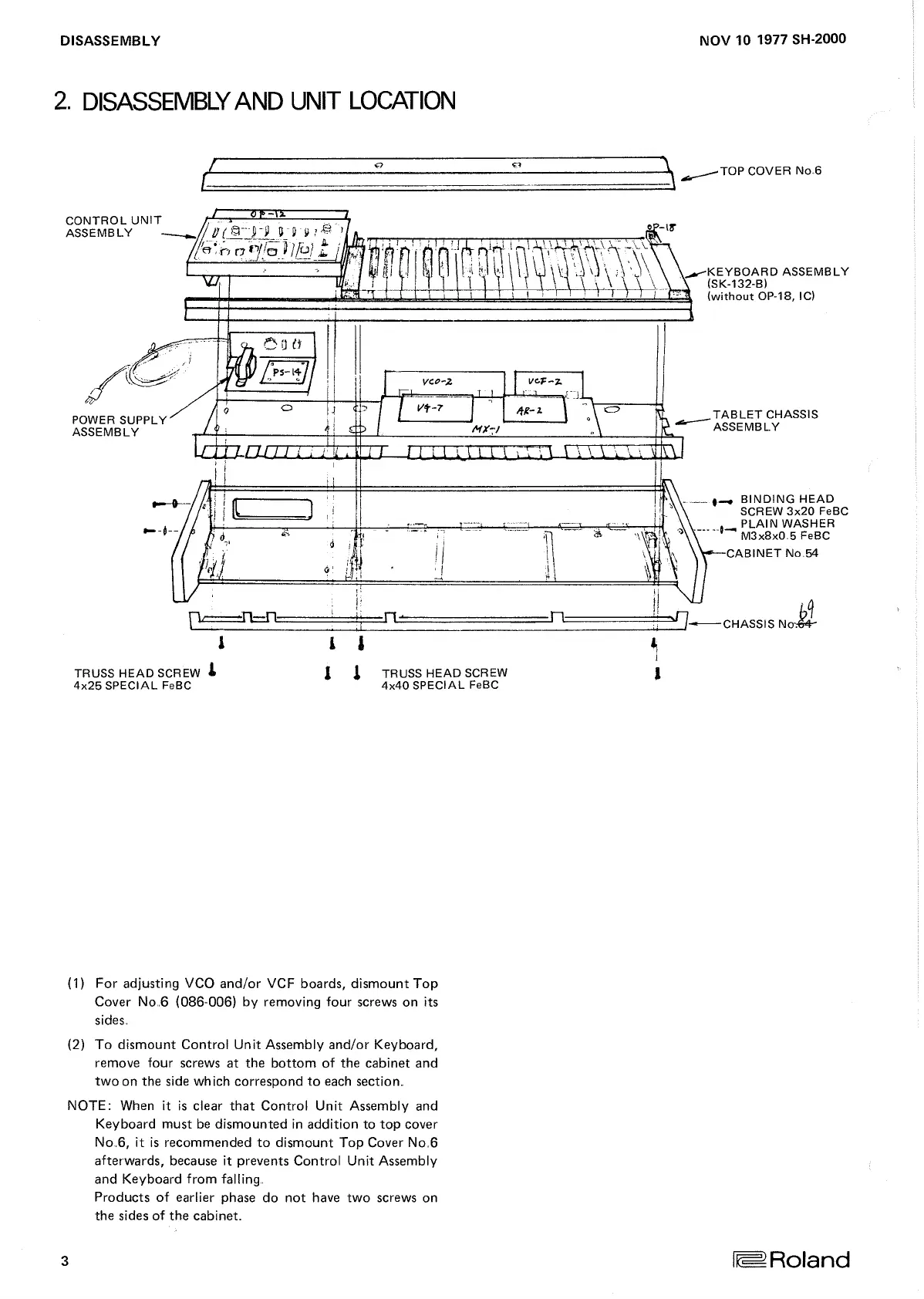

2. DISASSEMBLY AND UNIT LOCATION
r----------------------·-------'\ .--TOP COVER No 6
CONTROL UNIT - - .
ASSEMBLY -~-,--~ ( i:;i-~~'-I 9 ~ / f
1
POWER SUPPLY
ASSEMBLY
·~, r-1 ri n/1e D?fu; Ai.
. __ ,_)' -- ·--- --
; 1
)
"'~
~·
·I
J. T
ii
:J
' ,l
,:
i I
'.J
·n
\\
. ...--KEYBOARD ASSEMBLY
(SK-132-B)
(without OP-18, IC)
____ t- BINDING HEAD
! ' SCREW 3x20 FeBC
------I- PLAIN WASHER
M3x8x0 5 FeBC
CABINET No.54
j·
f1==l1=Il
n
L:::::=======.1n1========~·fJ-cHASSIS No·.ki
l
1
I
TRUSS HEAD SCREW
1
l 1
TRUSS HEAD SCREW
4x25 SPECIAL FeBC
4x40 SPECIAL FeBC
(1) For adjusting VCO and/or VCF boards, dismount Top
Cover No .. 6 (086-006) by removing four screws on its
sides.
(2)
To dismount Control Unit Assembly and/or Keyboard,
remove four screws
at the bottom of the cabinet and
two on the side which correspond to each section ..
NOTE: When it is clear that Control Unit Assembly and
Keyboard
must be dismounted in addition to top cover
No.6,
it is recommended to dismount Top Cover No .. 6
afterwards, because it prevents
Control Unit Assembly
and Keyboard from falling ..
3
Products of earlier phase do not have two screws on
the sides of the cabinet.
I
!@Roland
