Roland SPD-20 Service Notes

右左右左
右 左右 左
2
Apr, 1998
SPD-20
1
2
3
4
3X10mm Binding Head
P-tight Ni
3X10mm Binding Head
P-tight BZC x1
4X12mm Binding Head
P-tight Ni x15
M5X12mm Hex Socket
Bolt BZC x4
3X8mm Pan Head B-tight ZC
with Flat Washer x5
Head
B-tight
3X10mm Binding Head
P-tight Ni x4
3X8mm Binding head
P-tight BZC x8
3X6mm
B-tight
ZC with
Flat Washer
3X8mm Pan
x6
x3
5
6
7
9
11
13
14
15
16
17
16
18
8
10
Binding Head
ZC x4
3X10mm Binding Head
P-tight Ni
20
21
19
12

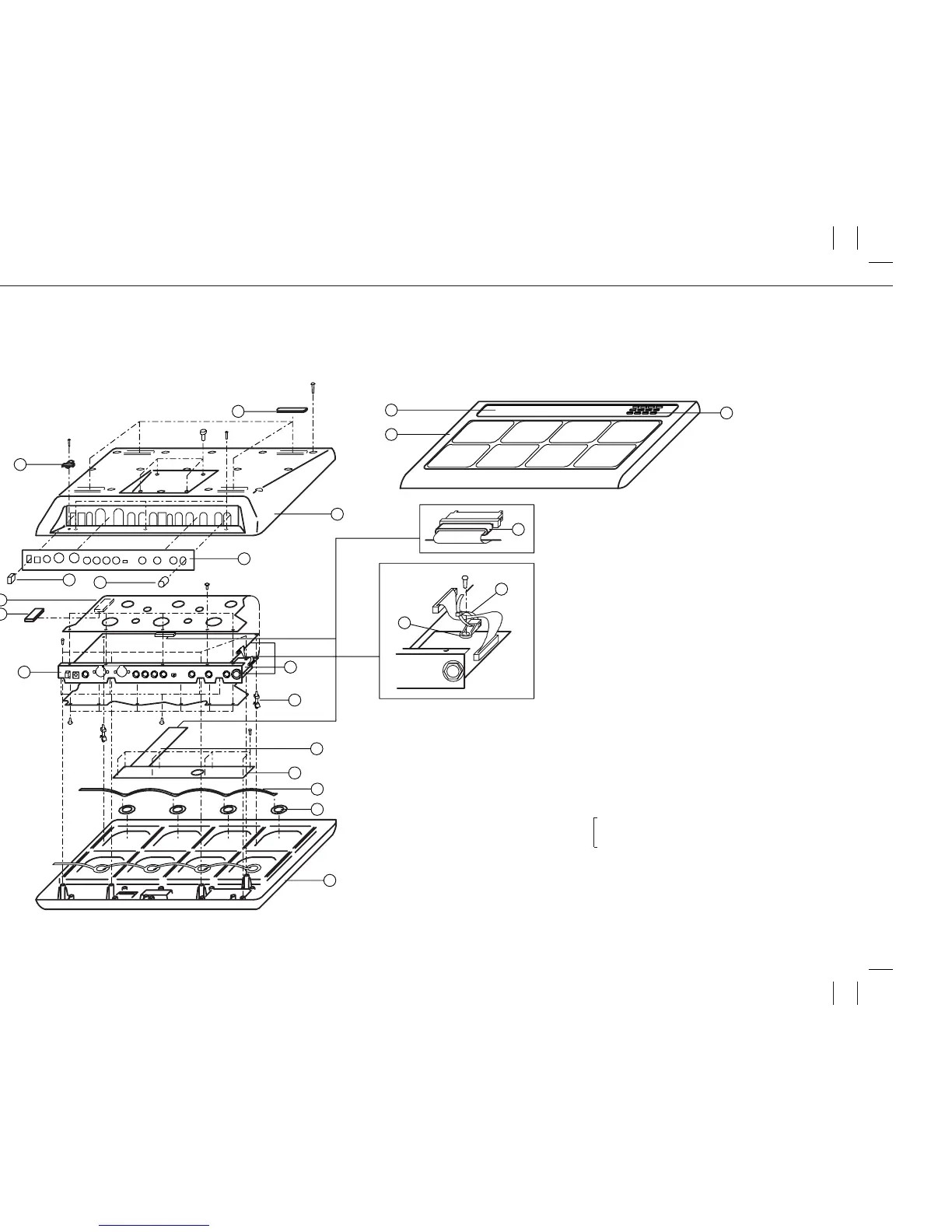

EXPLODED VIEW／分解図
q 22355152 Rubber Foot x 4
w 22365708 Cord Hook
e 71120101 Bottom Case Assy
NOTE :Replacement Bottom Case Assy includes the following parts.
注意: 補修用BottomCaseAssyは、下記の部品を含みます。
q Rubber Foot
w Cord Hook
r Rear Panel
r 01453889 Rear Panel
t 12499175 Key Top (Black)
y 22485109 HP-5600 Knob
u 22255385 Shield Sheet
i 22265595 Shield Cushion
o 22205874 Rear Holder
!0 71120156 Main Board Assy
!1 12199573 PCB Holder x 2
!2 01560656 FUJI CARD
30 x 190 x A6.0 BB-P1.25-HBL15-S
!3 71120145 Panel Board Assy
!4 01455789 Sensor Flexible x 2
!5 25295208 ø27 Sensor Tape ø18 x 8
!6 71120090 Top Case Assy
Note: Replacement Top Case Assy consists of the following 5
parts. We don't supply Top Case, Playing Plate and
Cushion separatery.
注意: 補修用TopCaseAssyは、下記の5部品で構成されます。
TopCaseAssy,PlayingPlate,Cushionのみの供給はありません。
******** Top Case
******** Playing Plate
******** Cushion
!7 01453878 Display Cover
!8 01453901 Rubber Switch
!9 12449471 Ferrite Core
@0 40016545 Tie Holder SKM-1
@1 40016512 Insulok Tie T-18S(80mm)
