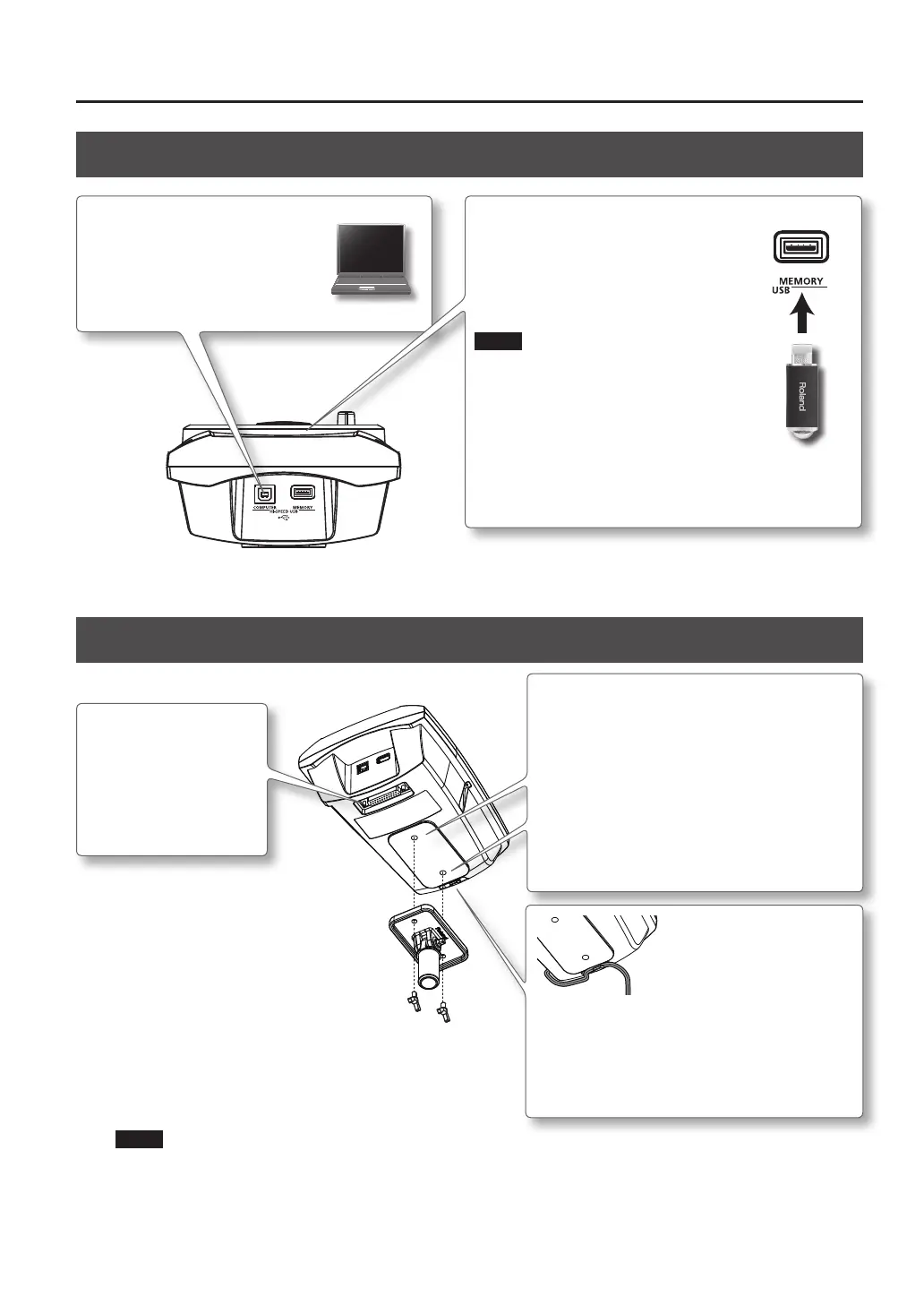

Panel Descriptions
9
Top Panel (Connecting Your Equipment)
COMPUTER port
Use a USB cable to connect the TD
to your computer (p. 47). MIDI data
and audio data can be sent via USB
to and from your DAW software.
MEMORY port
You can connect your USB ash drive
(separately sold) here, and play back
audio les from it (p. 27) or save TD
settings on it (p. 38).
NOTE
• Use USB ash drive sold by Roland. We
cannot guarantee operation if other products
are used.
• Never insert or remove a USB ash drive while
this unit is turned on. Doing so may corrupt
the unit’s data or the data on the USB ash
drive.
• Carefully insert the USB ash drive all the way
in-until it is rmly in place.
Bottom Panel
Sound module mounting plate attachment
holes
Attach the included sound module mounting plate
here to attach the TD to your drum stand.
Use the included wing bolts to attach the plate as
shown in the illustration.
* Use only the included wing bolts. Using any other
bolts will cause malfunctions.
* The TD must be attached to the sound module
mounting plate when in use.
TRIGGER INPUT
connector
Connect the included
dedicated cable to this
connector, and use it to
connect the pads and
pedals.
To prevent the inadvertent disruption of power
to your unit (should the plug be pulled out
accidentally), and to avoid applying undue stress
to the DC IN jack, anchor the power cord using the
cord hook, as shown in the illustration.
NOTE
When turning the unit upside down, be sure to handle the unit with care so as to prevent damage to the buttons, knobs,
etc.
To Next Page
