Rotex 70 Series User Manual

7
Assembly No. 25200, Rev. 6H
Effective S.O. 75148

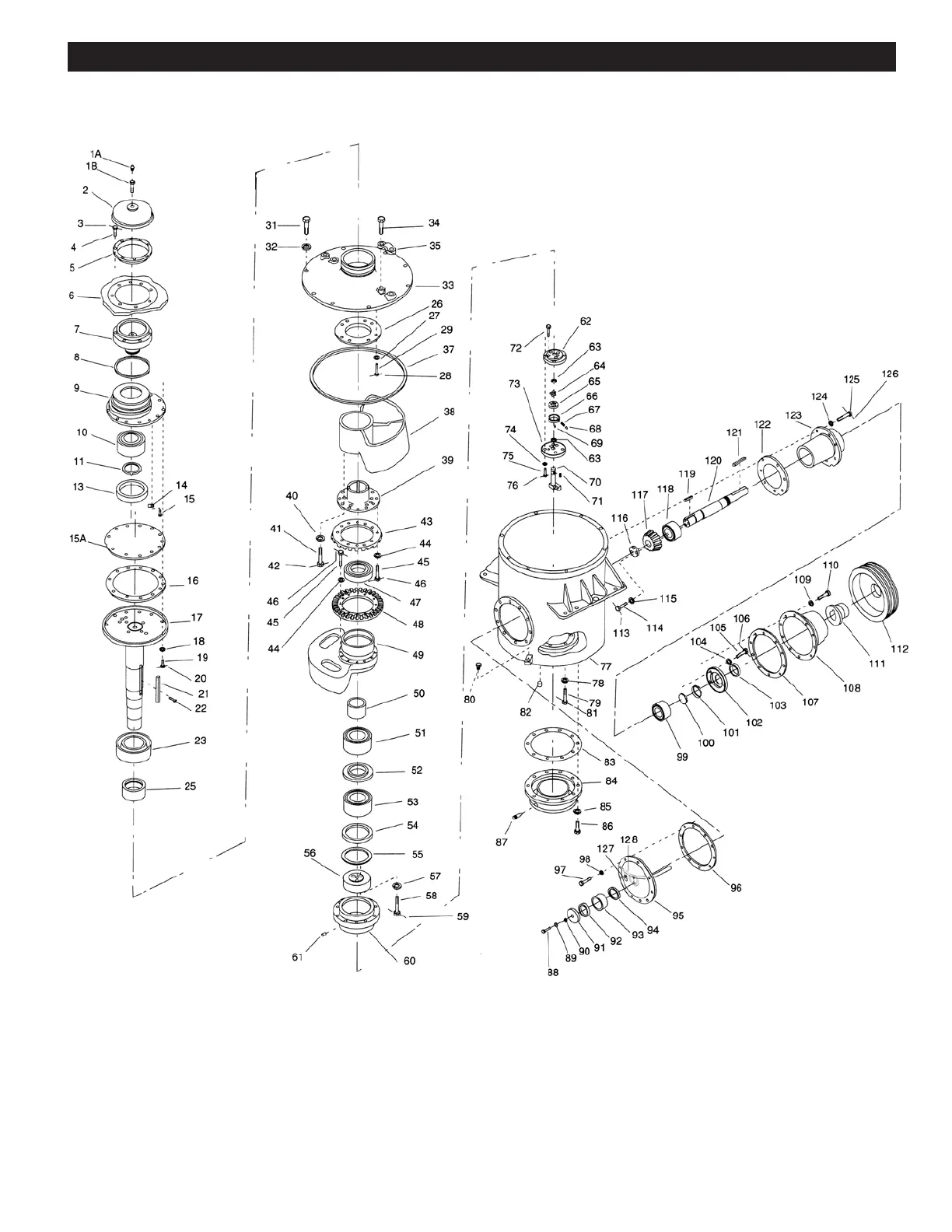

70 SERIES DRIVE HEAD ASSEMBLY
NOTE #1: 70 Series Drive Heads shipped prior to December 1983 have oil lubricated crankpin assemblies. Field conversion kits are available
from ROTEX INC. to convert 70 Series Drive Heads from oil lubricated crankpins to the current grease lubricated design.
Conversion kit no. 93525 consists of item nos. 1A, 1B and 15A. Drawing nos. 92935 and 92936 are included for installation instructions.
NOTE #2: Hardware needed to mount drive head to base: 11716-2-Expansion Bolt Assembly
16404-8-1" NC Nut
91508-4-1 x 4-1/2 NC Cap Screw
91511-4-1 x 3-1/2 NC Cap Screw
