3.5 Connecting Ethernet Cables
Caution
The weatherproof materials are customer-supplied.
(1) Trim an Ethernet cable according to the distance between the access point and the power supply.

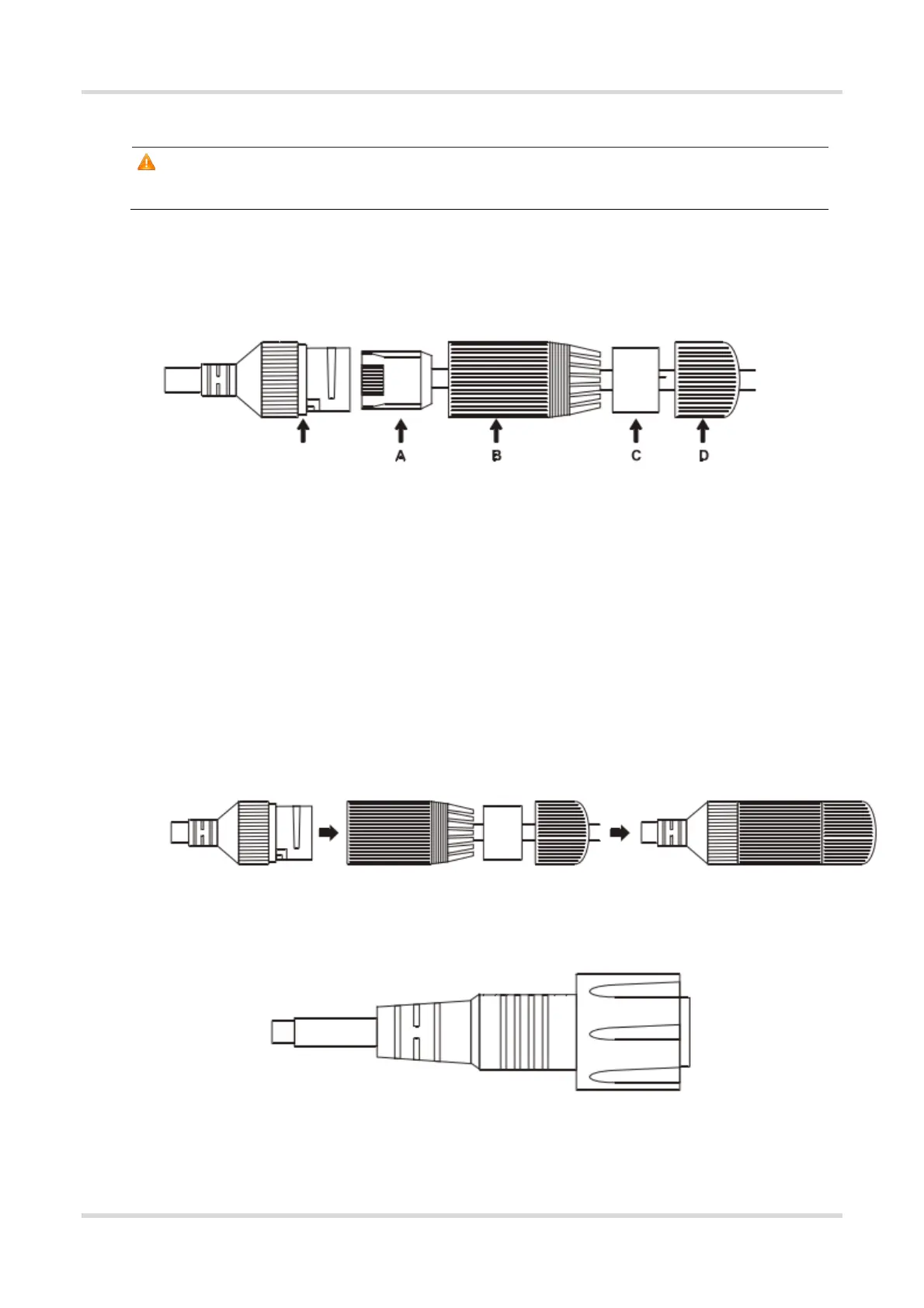

(2) Insert the unterminated end of the Ethernet cable through part D, C and B in sequence.
(3) Install an RJ45 connector on the unterminated end of the Ethernet cable using an Ethernet cable installation
tool..
(4) Insert the RJ45 connector into the LAN, PoE or uplink port of the access point, and tighten part B, C and D in
sequence.
(5) If you want to install the cable gland without an Ethernet cable threaded through it, insert the waterproof rubber
rod into the washer (rubber gasket), and tighten part B, C and D in sequence.
(6) Make sure to seal the DC port and the reset button with clean weatherproof caps and insert them into the slot
of connecting rod.
