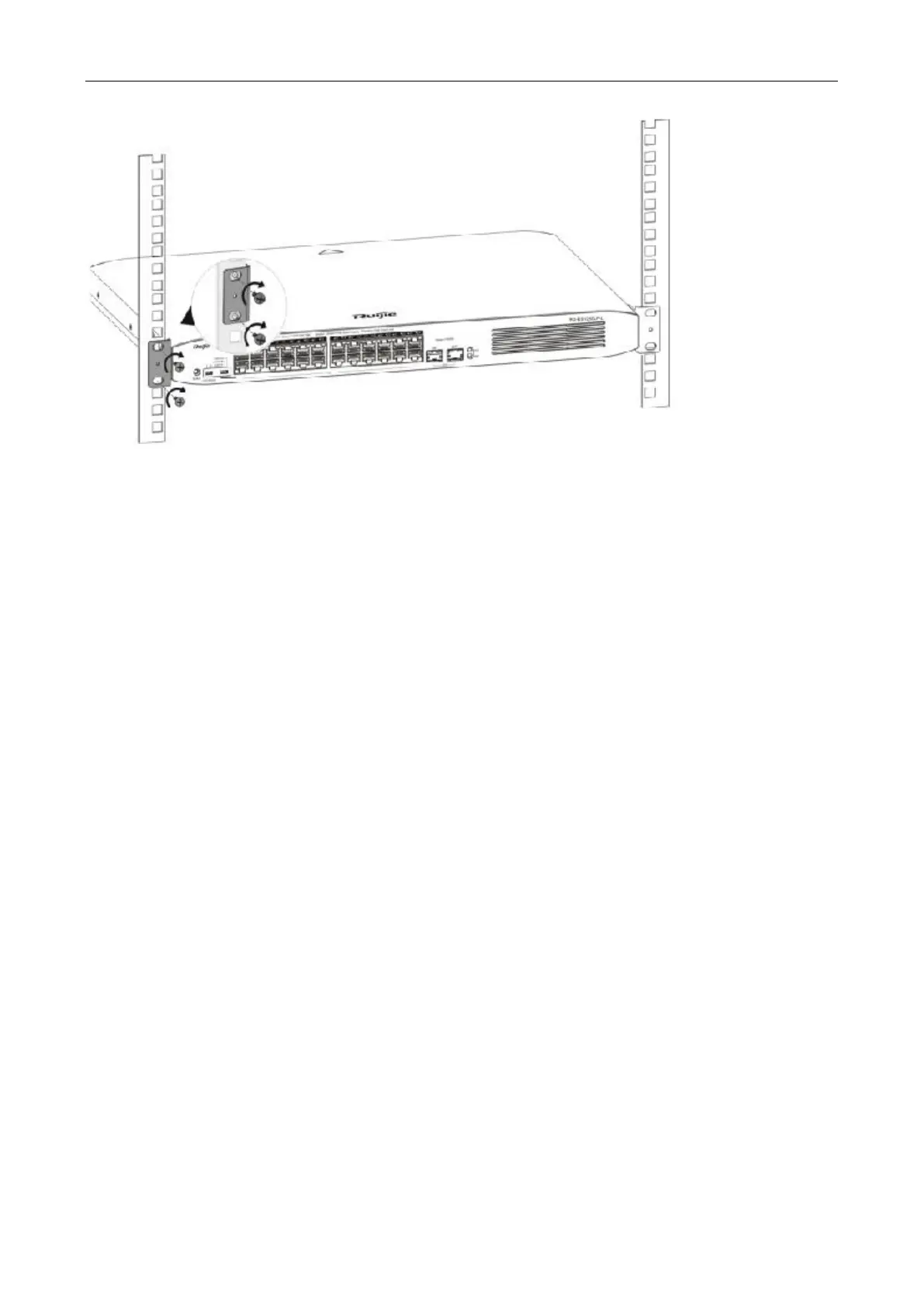

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide Product Installation
3.3.2 Mounting the Switch on the Wall
RG-ES109G-LP-L can be mounted on the wall. (Mounting screws and wall anchors are customer supplied.)
In actual installation, users need to determine the size and depth of the two mounting holes on the wall based on the sizes
of wall anchors and screws. Ensure that the wall anchors can be inserted into the holes, only the outer edges of the wall
anchors are left outside the wall, and screws can be tightly fastened to the wall.
The steps of mounting the switch on the wall are as follows:
Step 1: As shown in Figure 3-4, drill two holes with the diameter of about 5 mm on the wall, ensure that the spacing of the
two holes is 112 mm, and the line of connecting the two holes is horizontal.
Step 2: Insert wall anchors into the holes and ensure that the outer edges of the wall anchors are aligned with the wall.
Step 3: Put screws into the wall anchors and ensure that the distance between the inner side of the screw head and the
outer edge of the wall anchors not be smaller than 2.5 mm so that the device can be securely mounted on the screws.
Step 4: Align the two mounting holes on the bottom of the chassis of the device with the screws, and then fasten the
device on the screws.
Figure 3-4 Mounting RG-ES109G-LP-L on the Wall
