ASSEMBLY INSTRUCTIONS
9

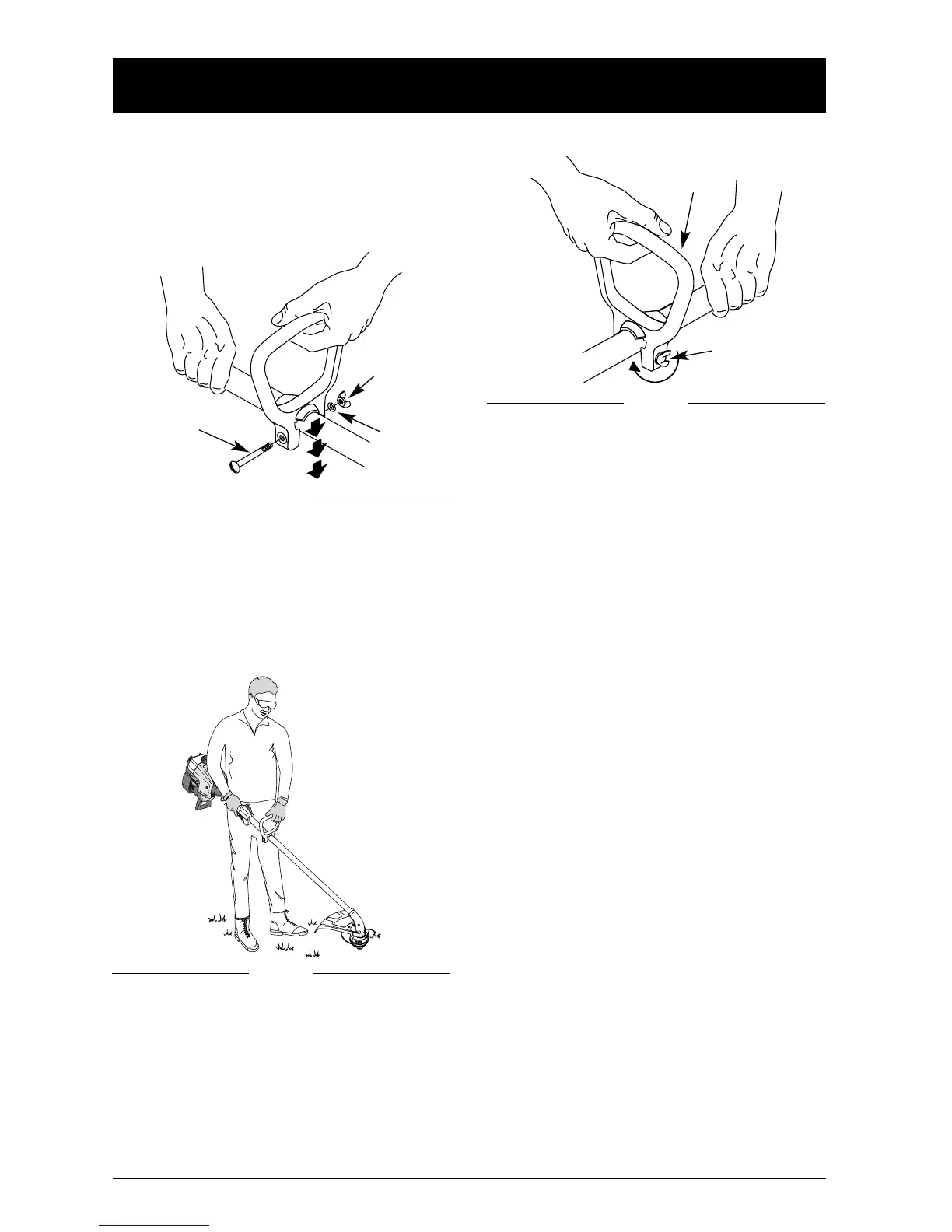

INSTALLING AND ADJUSTING THE
D-HANDLE - MODEL 767r
1. Push the D-handle down onto the shaft
housing so that the handle slants toward the
powerhead (Fig. 1). The squared bolt hole in
the handle is to the right.
Bolt
Grip
Wing
Nut
Washer
Fig. 3
Fig. 1
Fig. 2
Model 767r
2. Insert the shoulder bolt into the squared hole
in the handle. Place the washer on the bolt,
and screw the wing nut onto the bolt.
3. Rotate the D-handle to place the grip above
the top of the shaft housing.
4. While holding the unit in the operating
position (Fig. 2), position the D-handle to the
location that provides you the best grip.
5. Tighten the wing nut (Fig. 3).
Wing Nut
