6 - English
Inch
1
0
1
2
3
Inch
1
0
1
2
3
inch
inch
Inch
1
Inch
FEED
DIRECTION
1
FEED
DIRECTION
PRODUCT SPECIFICATIONS
Table Dimensions ................................16 in. x 32 in. x 1 in.
Maximum Cutter Diameter
.................................1-15/16 in.
Fence Length.............................................................. 28 in.

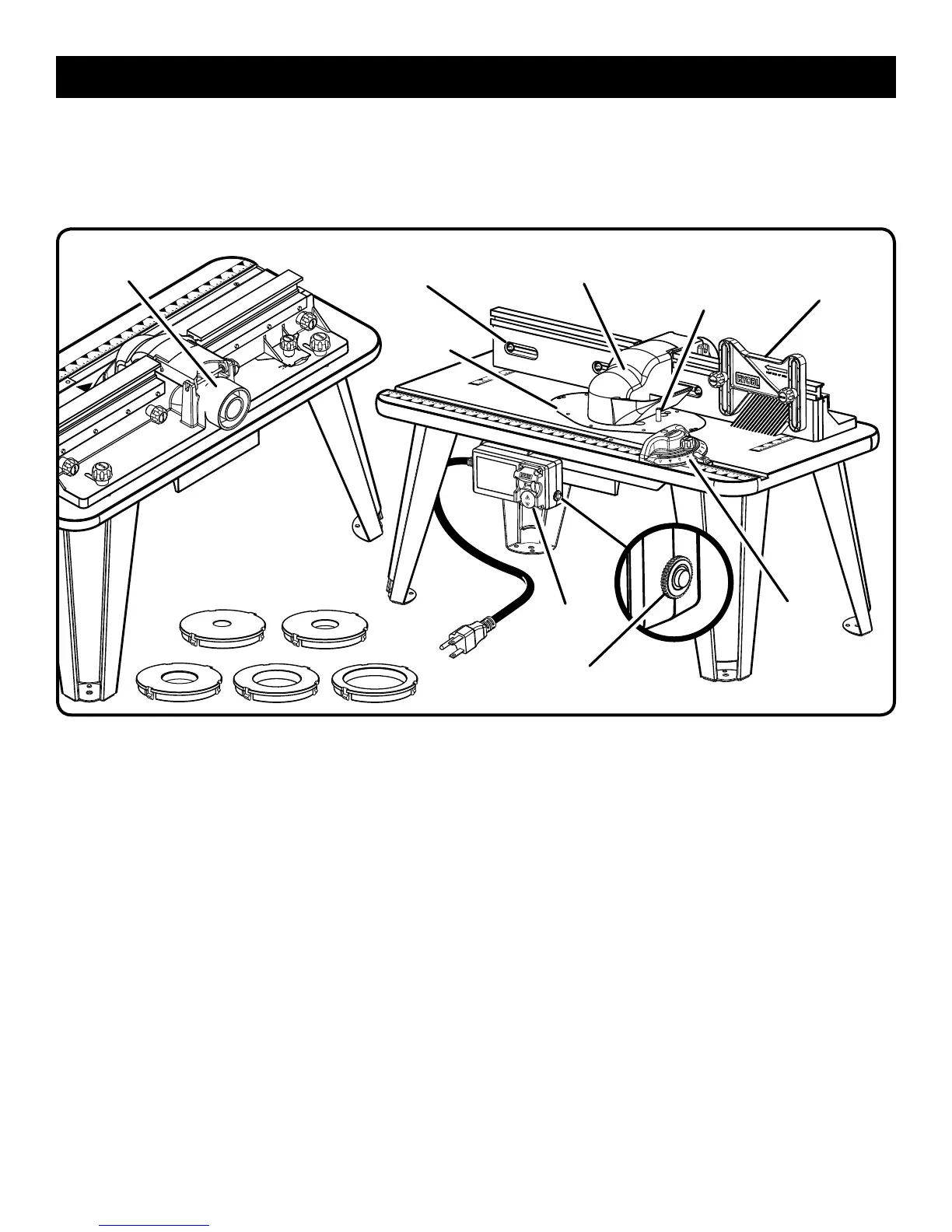

KNOW YOUR ROUTER TABLE
See Figure 2.
The safe use of this product requires an understanding of the
information on the product and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
BIT GUARD
The articulating router cutter bit guard on the fence assembly
provides a barrier to protect the operator from contact
with the cutter and is designed to stay in contact with the
workpiece.
FEATHERBOARD
The featherboard allows for safe movement of the workpiece
through the cutter area and is height adjustable.
FENCE ASSEMBLY
The sacrifical MDF fence assembly provides an adjustable
surface to support and guide the work. Molded into the fence
assembly is the vacuum port.
Miter Slot
........................................ 1/4 in. x 3/4 in. x 32 in.
Rating
.............................. 120 V, 60 Hz, AC only, 15 Amps
Net Weight
.................................................................28 lbs.
INSERT PLATE
The insert plate can be used in combination with a variety
of routers. It also has pre-drilled countersunk holes that can
be used with a variety of routers.
MITER GAUGE
A miter gauge is used for mitered routing and to help support
wider pieces.
RESET BUTTON
The router table switch is equipped with a reset button that
protects the electronic components of the router table switch
box from overload.
STARTING PIN
When you are unable to use the fence for a guide because
the workpiece is odd-shaped or too small, use the starting
pin for a guide and/or pivot point. Only use piloted cutters
when using the starting pin.
STARTING
PIN
Fig. 2
VACUUM
PORT
MITER
GAUGE
SWITCH
ASSEMBLY
FENCE
ASSEMBLY
BIT GUARD
THROAT PLATES
FEATHER
BOARD
P
U
S
H
R
E
E
T
S
RESET
BUTTON
INSERT
PLATE
FEATURES
