KNOW YOUR PLANER

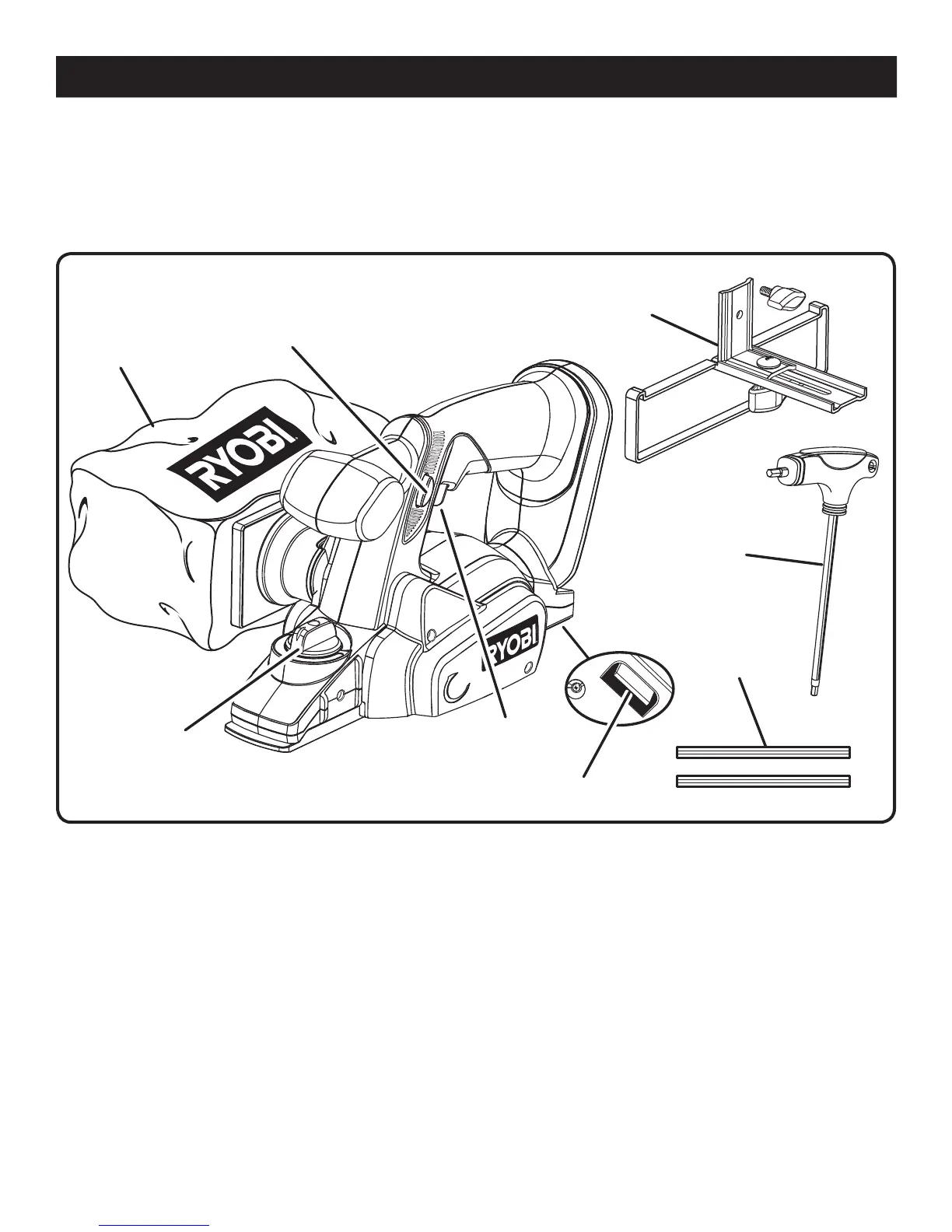

See Figure 1.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
BLADE WRENCH
A blade wrench is included for convenience in changing
blades.
DEPTH ADJUSTMENT KNOB
The planing depth can be adjusted from 0 to 0.4mm.
DUST BAG
The dust bag attaches to the dust port of the planer to keep
the work area free of debris. A 31.75mm. vacuum hose
can also be attached for dust collection.
EDGE GUIDE/REBATE GUIDE
The edge guide may be attached for planing edges and
making rebate cuts.
KICKSTAND
The kickstand allows the planer to sit on a workpiece or table
without damaging the surface or the blades.
LOCK-OFF BUTTON
Thelock-offbuttonlocks the switch trigger in theOFF position
when the switch is released.
REVERSIBLE BLADES
The blades installed on your planer can be reversed for
longer life between blade changes. An additional set of
blades is included.
FEATURES
Fig. 1
PRODUCT SPECIFICATIONS
Motor..................................................................18 Volt DC
No Load Speed ................................................ 10,000/min.
Planing Width ....................................................... 50.8mm.
0.4mm.
Planing Depth..........................................................
Rebate Depth ..................................................... 0-12.7mm
Charger Input ................................... 240 V, 50 Hz, AC only
Charge Rate ....................................................... 60-90 min
KICKS TAND
DUST
BAG
REVERSIBLE
BLADES
BLADE
WRENCH
EDGE GUIDE/
REBATE GUIDE
DEPTH
ADJUSTMENT KNOB
LOCK-OFF
BUTTON
SWITCH
TRIGGER
