8 9
LOCK-OFF
BUTTON
FEATURES

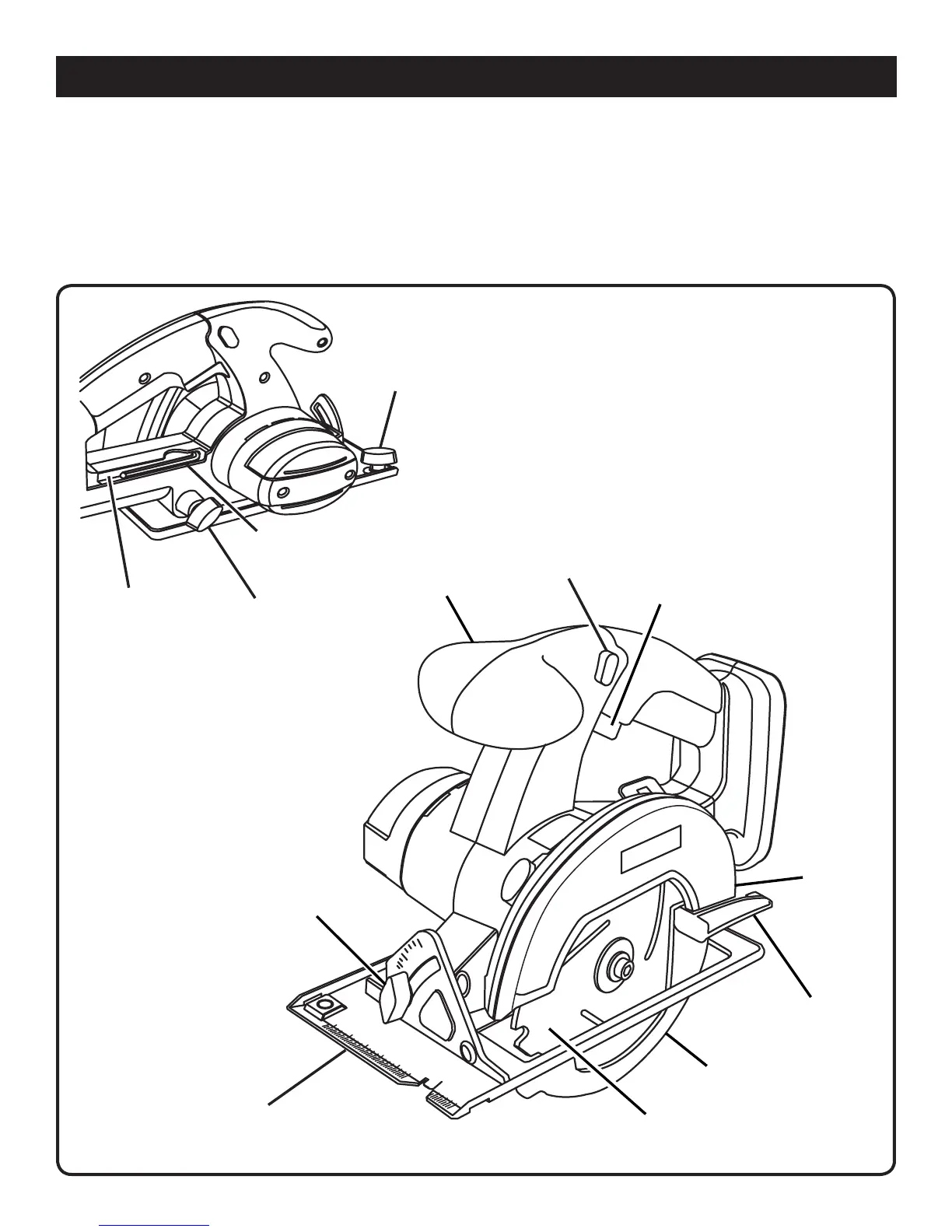

Fig. 1
PRODUCT SPECIFICATIONS
Motor..................................................................18 Volt DC
Blade Diameter...................................................... 5-1/2 in.
Blade Arbor ...............................................................3/8 in.
Cutting Depth at 0°.............................................. 1-9/16 in.
BLADE
UPPER
BLADE
GUARD
LOWER BLADE
GUARD
SWITCH
TRIGGER
LOWER BLADE
GUARD HANDLE
BEVEL
ADJUSTMENT
KNOB
HANDLE
Cutting Depth at 45°.............................................. 1-1/8 in.
Charger Input .................................. 120 V, 60 Hz, AC Only
Charge Rate .............................................................1 Hour
No Load Speed ...................................................4200/min.
BLADE WRENCH
(5 mm HEX KEY)
DEPTH
ADJUSTMENT KNOB
BLADE WRENCH
STORAGE AREA
OPTIONAL RIP
GUIDE SCREW
(WING SCREW)
WIDTH OF CUT
SCALE
