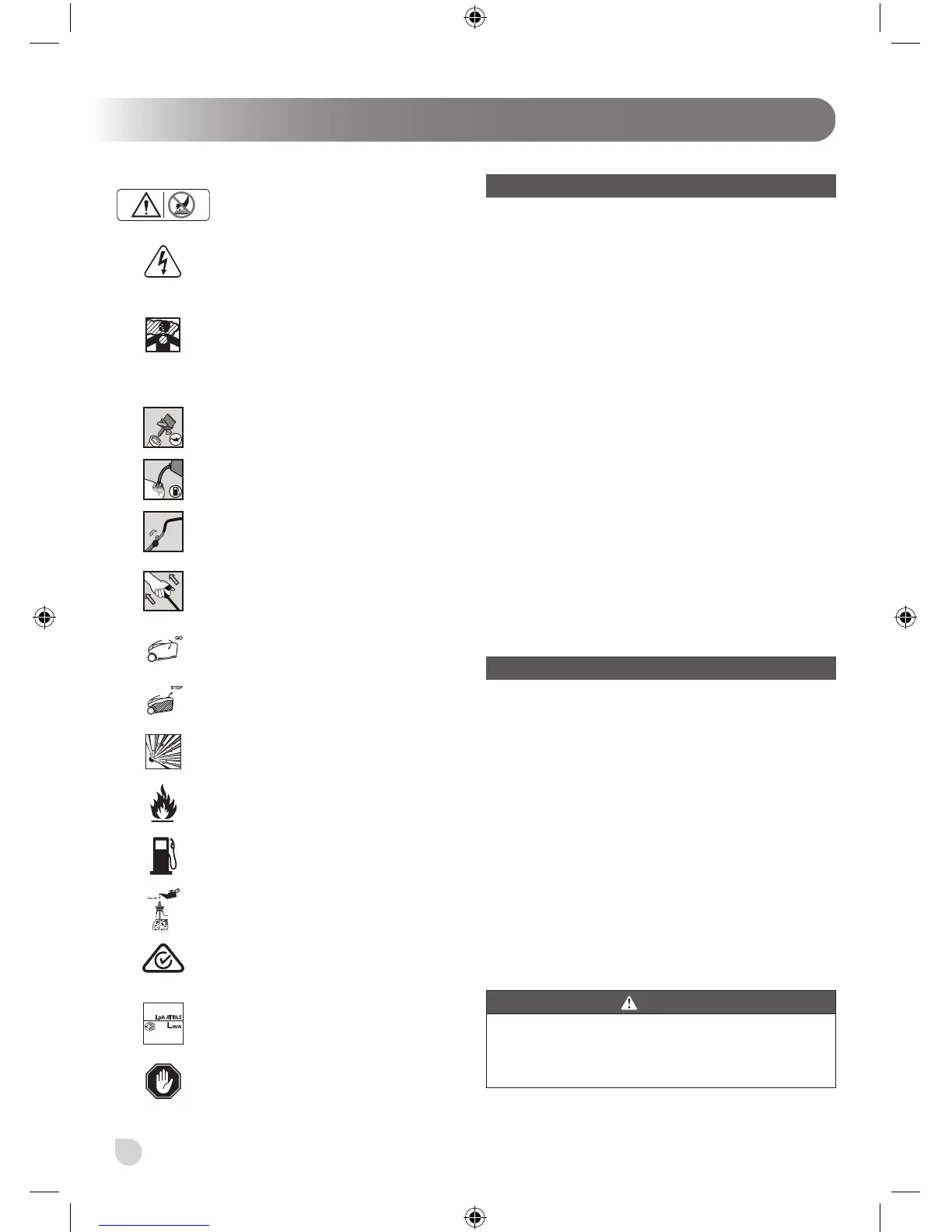

4
To reduce the risk of injury or damage,
avoid contact with any hot surface.
The product is a potential source
of electric shock. Do not expose to
moisture, rain, or snow. Do not operate
with wet hands or feet.
When the product is used, it gives
off carbon monoxide, an odourless,
colourless, poison gas. Breathing
carbon monoxide can cause nausea,
fainting, or death.
Add SAE 10W-30 API-SJ or higher
weight engine oil in the oil tank.
Fill the fuel tank with unleaded petrol
(91 or higher).
Set the throttle lever to the “Start/Run”
position.
Pull the starter grip up to 2 times. Once
the engine starts, release the starter
grip slowly so that the rope does not
snap back.
Mow when the grass catcher is empty
Stop mowing when the grass catcher
is full.
Fuel and its vapours are explosive and
can cause severe burns or death.
Fuel and its vapors are extremely
ammable and explosive. Fire can
cause severe burns or death.
Use unleaded petrol intended for motor
vehicle use with an octane rating of 91
[(R + M)/2] or higher.
Use SAE 10W-30 API-SJ or higher
weight oil.
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory
requirements.
79
dB
The guaranteed sound pressure level
is 79 dB(A).
The guaranteed sound power level is
100 dB(A).
Stop the product.
DESCRIPTION
1. Oil cap/Dipstick
2. Fuel cap
3. Starter grip
4. Handle knob
5. Air lter cover
6. Throttle lever
7. Grass catcher
8. Height adjustment lever
9. Spark plug boot
10. Rope guide knob
11. Spark plug
12. Blade lock nut
13. Washer
14. Blade disc
15. Wave washer
16. Blade
17. Blade bolt
18. Flat washer
19. Lock washer
20. Disc bolt
21. Ground side
22. Engine side
23. Loosen
24. Tighten
25. Self-propel bail
26. Mulching plug
27. Air lter
ASSEMBLY
UNPACKING
The product requires assembly.
■ Carefully inspect the product to make sure no breakage
or damage occurred during shipping.
■ If any parts are damaged or missing, please call your
Ryobi service centre for assistance.
PACKING LIST
Lawnmower Rope guide
Grass catcher Mulching plug
Operator’s manual Washer
Figure sheet Nut
Cable guide
WARNING
If any parts are damaged or missing, do not operate the
product until the parts are replaced. Using a product
with damaged or missing parts could result in serious
personal injury.
