ASSEMBLY
UNPACKING
This product requires assembly.
 Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
 Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
 Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
 If any parts are damaged or missing, please call
1-800-860-4050 for assistance.
PACKING LIST
Trimmer Assembly
Pro Cut II
TM
String Head
Spool Retainer
Shoulder Strap
12 Volt Battery
Charger
Front Handle
Wing Screw
Wing Nut
Bolt
Washer
Grass Deflector
Bottle of 2-Cycle Lubricant
Hanger Cap
Operator’s Manual
WARNING:
If any parts are damaged or missing do not operate this
product until the parts are replaced. Failure to heed this
warning could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always disconnect the engine spark plug
wire from the spark plug and remove battery pack when
assembling parts.
INSTALLING THE POWER HEAD SHAFT TO
THE ATTACHMENT
See Figure 2.
WARNING:
Never install, remove, or adjust any attachment while
power head is running. Failure to stop the engine can
cause serious personal injury.
The attachment connects to the power head shaft by means
of a coupler device.
 Loosen the knob on the coupler of the power head shaft
and remove the end cap from the attachment.
 Push in the button located on the attachment shaft. Align
the button with the guide recess on the power head coupler
and slide the two shafts together. Rotate the attachment
shaft until the button locks into the positioning hole.
NOTE: If the button does not release completely in the
positioning hole, the shafts are not locked into place.
Slightly rotate from side to side until the button is locked
into place.
 Tighten the knob securely.
WARNING:
Be certain the knob is fully tightened before operating
equipment; check it periodically for tightness during use
to avoid serious personal injury.

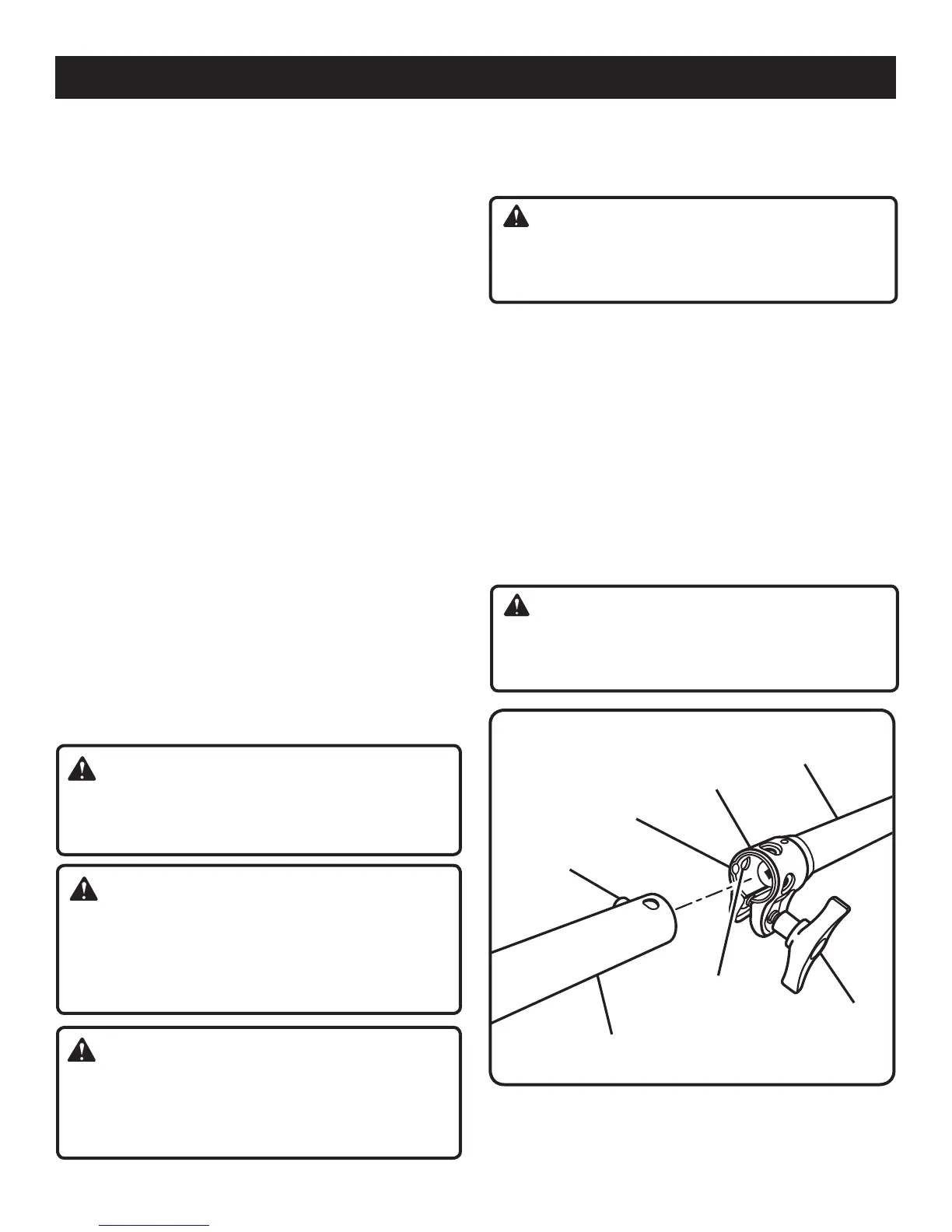

Fig. 2
cOupLER
knOb
TRIMMER ATTAcHMEnT
pOwER HEAD
SHAfT
pOSITIOnInG
HOLE
GuIDE
REcESS
buTTOn
