Suntrio Plus Series
17
4.3 The Determination of the Installation Method and
Position
4.3.1 Mounting Method
Please mount the inverter correctly as shown in Figure4.1 below.

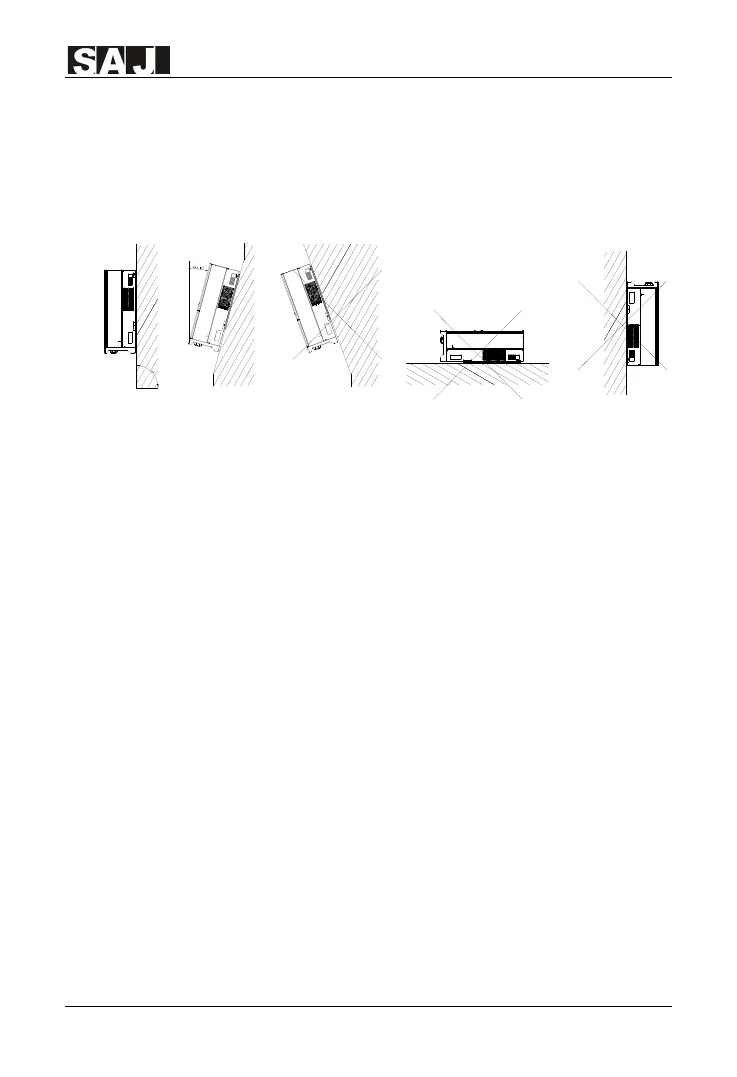

Figure 4.1 Mounting Method
① The equipment employs natural convection cooling, and it can be
installed indoor or outdoor.
② Please install the equipment under the guidance of Figure4.1. Vertical
installation on floor level is recommended. Mount vertically or tilted
backwards by max. 15°. Never install the inverter tilted forward, sideways,
horizontally or upside down.
③ Considering convenience for maintenance, please install the equipment
at a position in parallel with line of sight.
④ When mounting the inverter, please consider the solidity of wall for
inverter, including accessories. Please ensure the Rear Panel mount tightly.
Before installation, make sure that the wall has enough strength to hold the
screws and bear the weight of the equipment.Please make sure the
equipment is installed properly.
4.3.2 Installation Position
Do not expose the inverter to direct solar irradiation as this could cause
power derating due to overheating. The ambient temperature should be
between -25°C ～ +60°C(-13° F ～ 140° F)to ensure optimum operation.
Choose locations with sufficient air exchange. Ensure additional ventilation,
To Next Page
