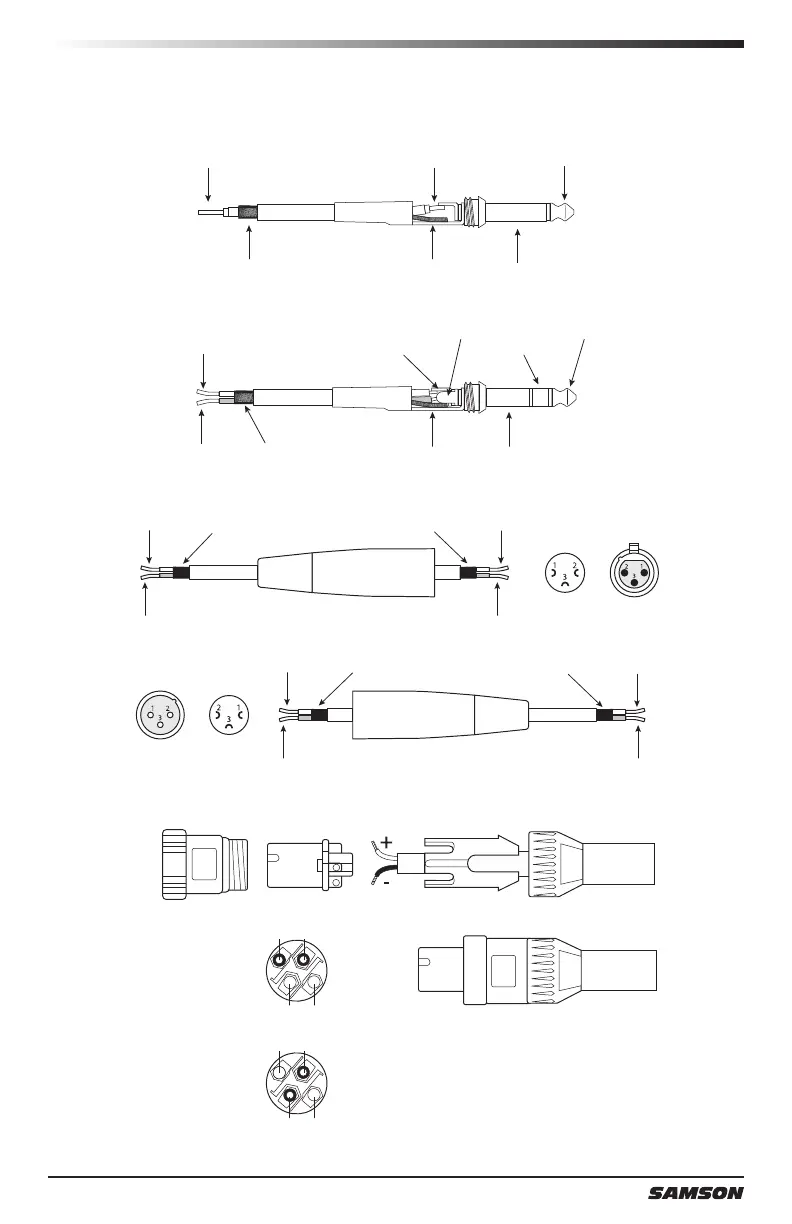

Wiring Guide
Unbalanced ¼” Connector
Balanced TRS ¼” Connector
XLR Balanced Connector
Signal
Ground
Ground
Sleeve (ground)
Signal Tip (signal)
+Signal (tip)
+Signal (tip)
-Signal (tip)
Ring (+signal)
Tip (-signal)
Ground
-Signal (ring)
Ground Sleeve (ground)
-Cold (3)
+Hot (2)
Common (1)
(ground)
-Cold
+Hot
Common (ground)
End ViewSolder Points
Female XLR
Male XLR
-Cold-Cold (3)
+HotCommon (ground)
+Hot (2)
Common (1)
(ground)
End View
Solder Points
Stereo Operation
+1 -1 Connected
1- 1+
2+ 2-
Mono Operation
+1 +2 Connected
1- 1+
2+ 2-
Speakon® Wiring Guide
