Samson Q1U User Manual

3
ENGLISH
The following example is for setting up the
Q1U in MAC OS X .
1. Plug in microphone. The LED will light
to indicate it is receiving USB power. The
MAC will recognize the USB audio device
and automatically install a universal driver.

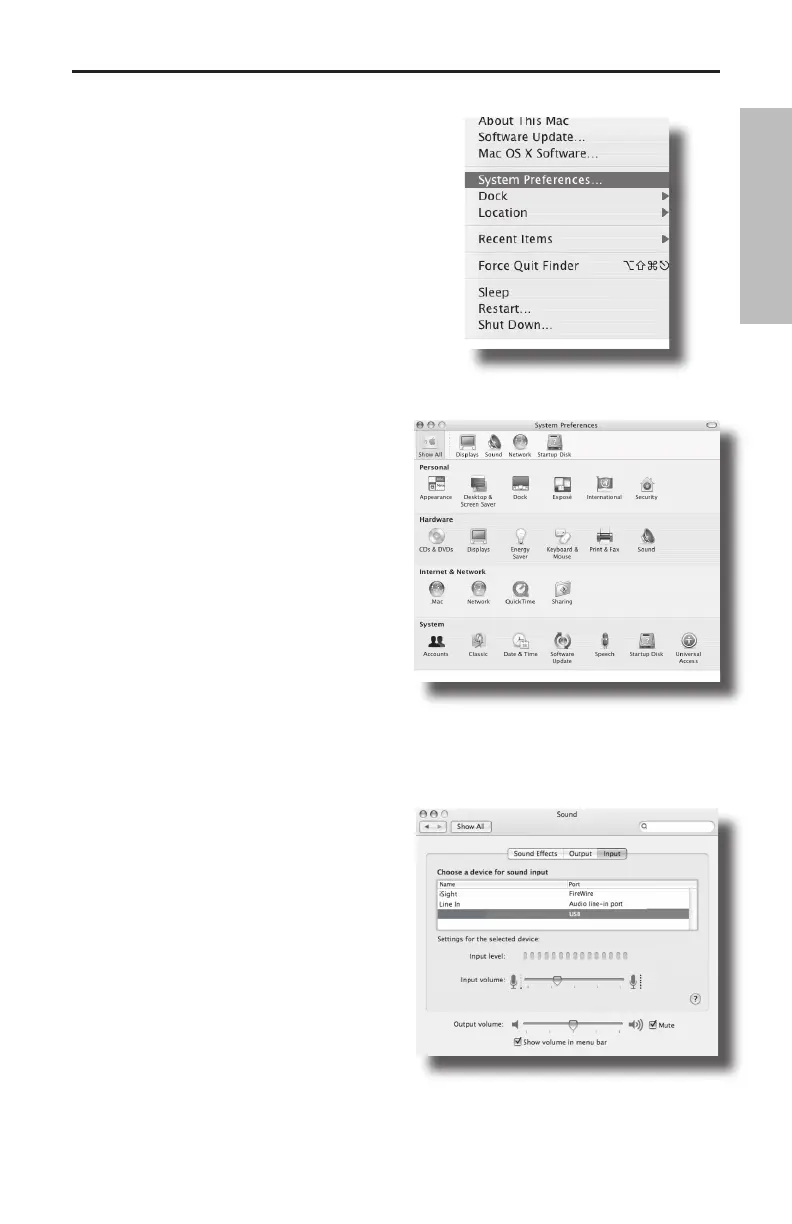

2. To select the Q1U as the computers
audio input, open the System Preferences
from the dock or the main Apple Menu
(figure 1).
3. Next open the Sound preference (figure
2).
4. Now, click in the Input tab and select
Q1U (figure 3).
SAMSON Q1U
Figure 2
Figure 1
Figure 3
Getting Started with MAC OS X

Samson Q1U Specifications

General

Type	Laptop microphone
Bit rate	16 bit
Microphone frequency	50 - 16000 Hz
Microphone direction type	Supercardioid
USB port	Yes
Device interface	USB
Connectivity technology	Wired
Impedance	90 Ω
Product color	Gray

Weight and Dimensions

Depth	53 mm
Height	180 mm
Microphone weight	370 g
