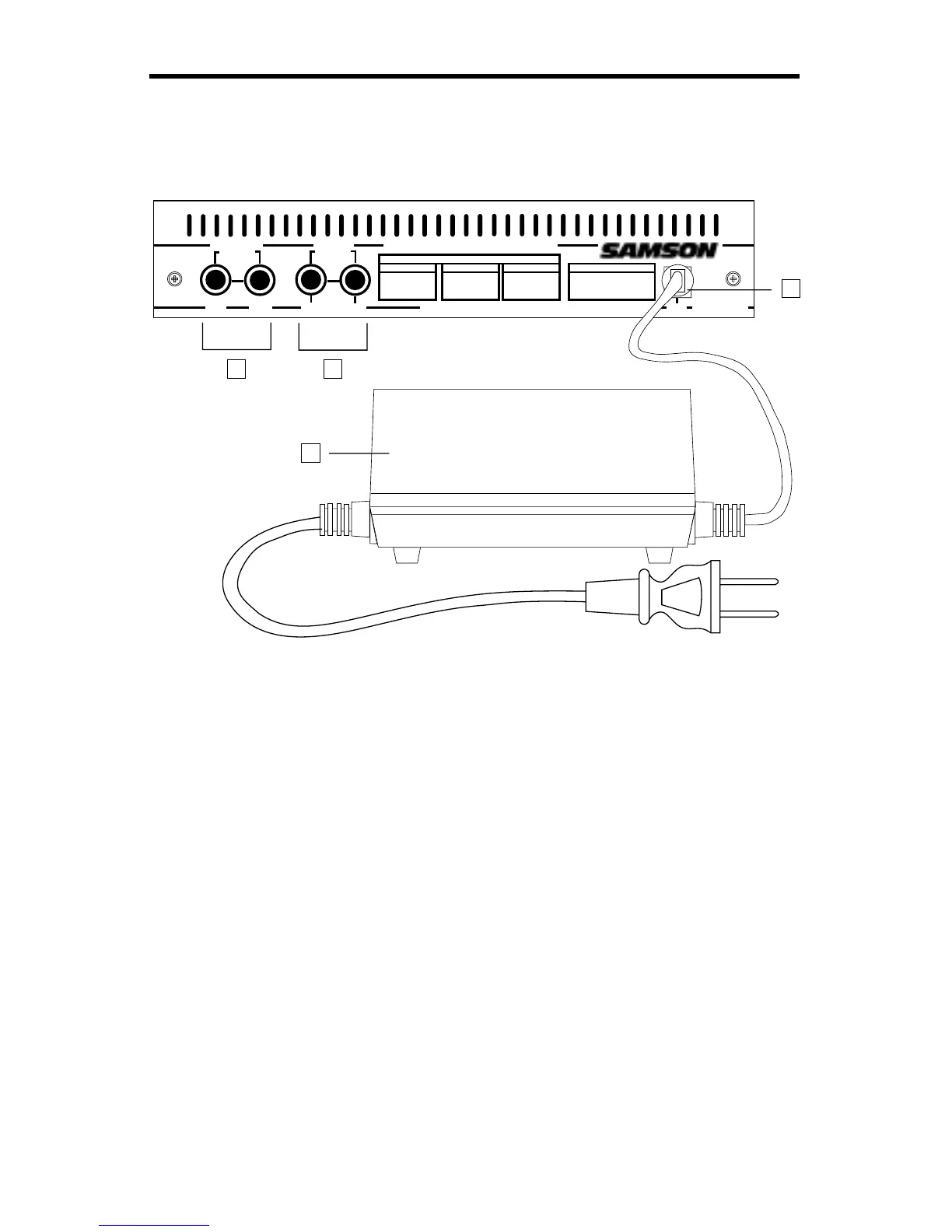

Guided Tour - Rear Panel
1: AC input - Connect the supplied Samson AC16 16-volt AC power
adapter here. Do not substitute any other kind of power adapter; doing
so can cause severe damage to the unit and will void your warrantee.
2: AC16 16-volt AC power adapter - Designed specifically for use with
the Q5 Headphone Amplifier.
3: Left/Right Stereo Link outputs - Use these electronically balanced
1/4” TRS (Tip/Ring/Sleeve) jacks to link together multiple Q5 devices.
See the section in this manual entitled “Linking Multiple Q5s” for more
information.
4: Left/Right Amp inputs - Connect incoming signal to these standard
1/4” TRS (Tip/Ring/Sleeve) jacks. Input may be balanced or
unbalanced, to a maximum input level of +18 dBV.
6
Q5 HEADPHONE AMPLIFIER
DISTRIBUTION AMPLIFIER 500mW 600 Ω
TRS WIRING
LINK WIRING
PHONES WIRING
TIP +
RING -
SLEEVE GROUND
TIP +
RING -
SLEEVE GROUND
TIP LEFT
RING RIGHT
SLEEVE GROUND
SERIAL NUMBER
STEREO LINK
BALANCED
+14dB MAX. INPUT
BALANCED
LEFT
RIGHT
LINK
RIGHT AMP
INPUT
LEFT AMP
INPUT
SAMSON TECHNOLOGIES CORP., HICKSVILLE, NEW YORK
16VAC
ASSEMBLED IN R.O.K.
1
2
3
4
