15-1. POWER SUPPLY
Working Voltage 198V ~ 264V
Voltage Imbalance
Within a 3% Deviation from Each Voltage at the Main Terminal of
Outdoor Unit
Starting Voltage Higher than 85% of the Rated Voltage

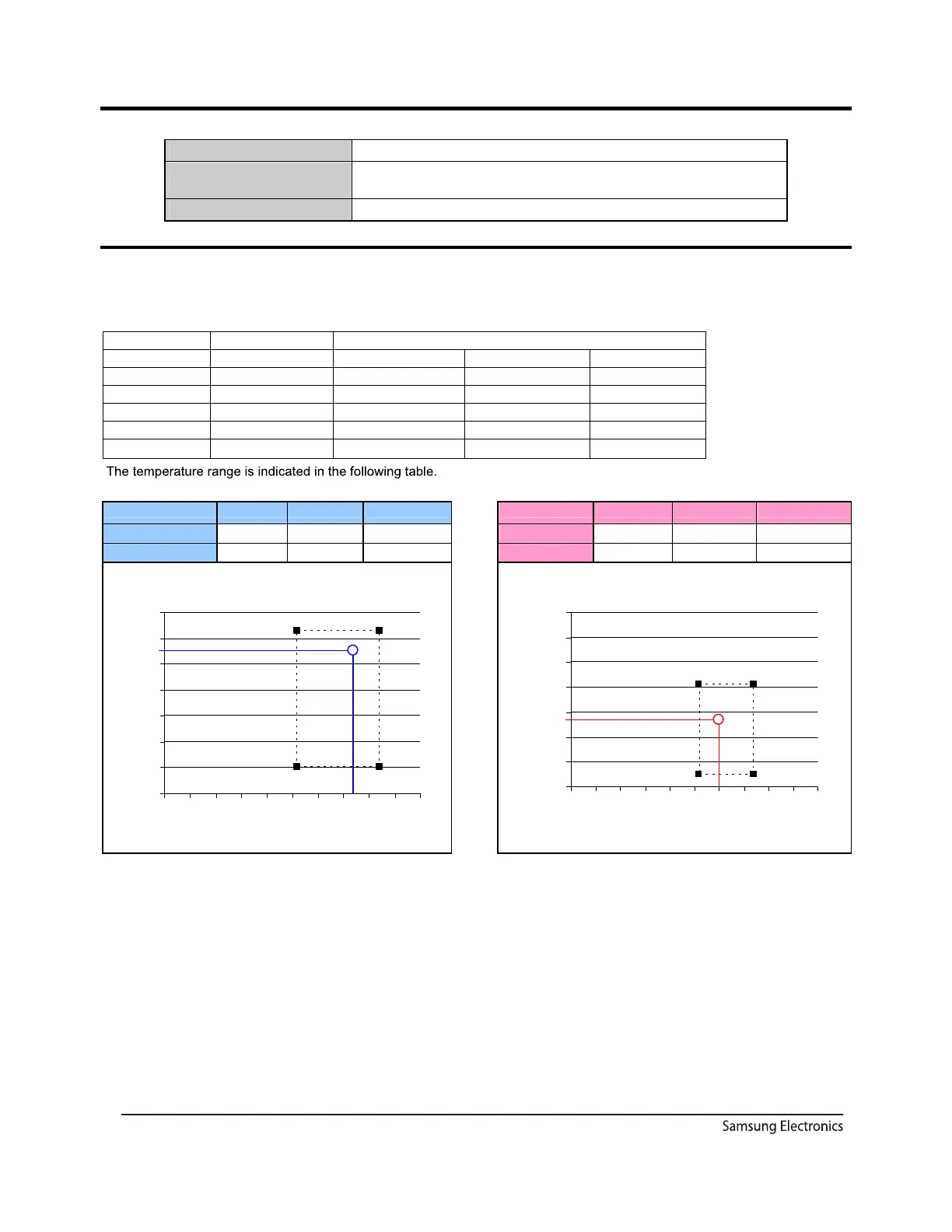

15-2. WORKING RANGE
15-2-1. MULTIZONE/MONOZONE/SUMMIT
Applicable models:
MULTIZONE MONOZONE
SUMMIT
RAM-40QH5 RAC-25NH5
RAC-25WX8
RAC-25YH5 RAC-18YH6
RAM-55QH5 RAC-35NH5
RAC-35WX8
RAC-35YH5 RAC-25YH6
RAM-65QH5 RAC-50NH5
RAC-50WX8
RAC-50YH6 RAC-35YH6
RAM-72HQ5 RAC-65NH5
RAC-25FX8
RAC-60YH5 RAC-50DH7
RAM-90QH5
RAC-35FX8
RAC-70YH5 RAC-60DH7
RAM-130QH5
RAC-50FX8
RAC-80YH5 RAC-70DH7
gnitaeH gnilooC
working range min (
o
C) max (
o
C) rated (
o
C) working range min (
o
C) max (
o
C) rated (
o
C)
outdoor -10 43 35 outdoor -15 21 7
indoor 16 32 27 indoor 16 27 20
Cooling working range
-20
-10
0
10
20
30
40
50
-10 -5 0 5 10 15 20 25 30 35 40
Indoor temperature
Ambient temperatur
e
Heating working range
-20
-10
0
10
20
30
40
50
-10 -5 0 5 10 15 20 25 30 35 40
Indoor temperature
Ambient temperatur
e
