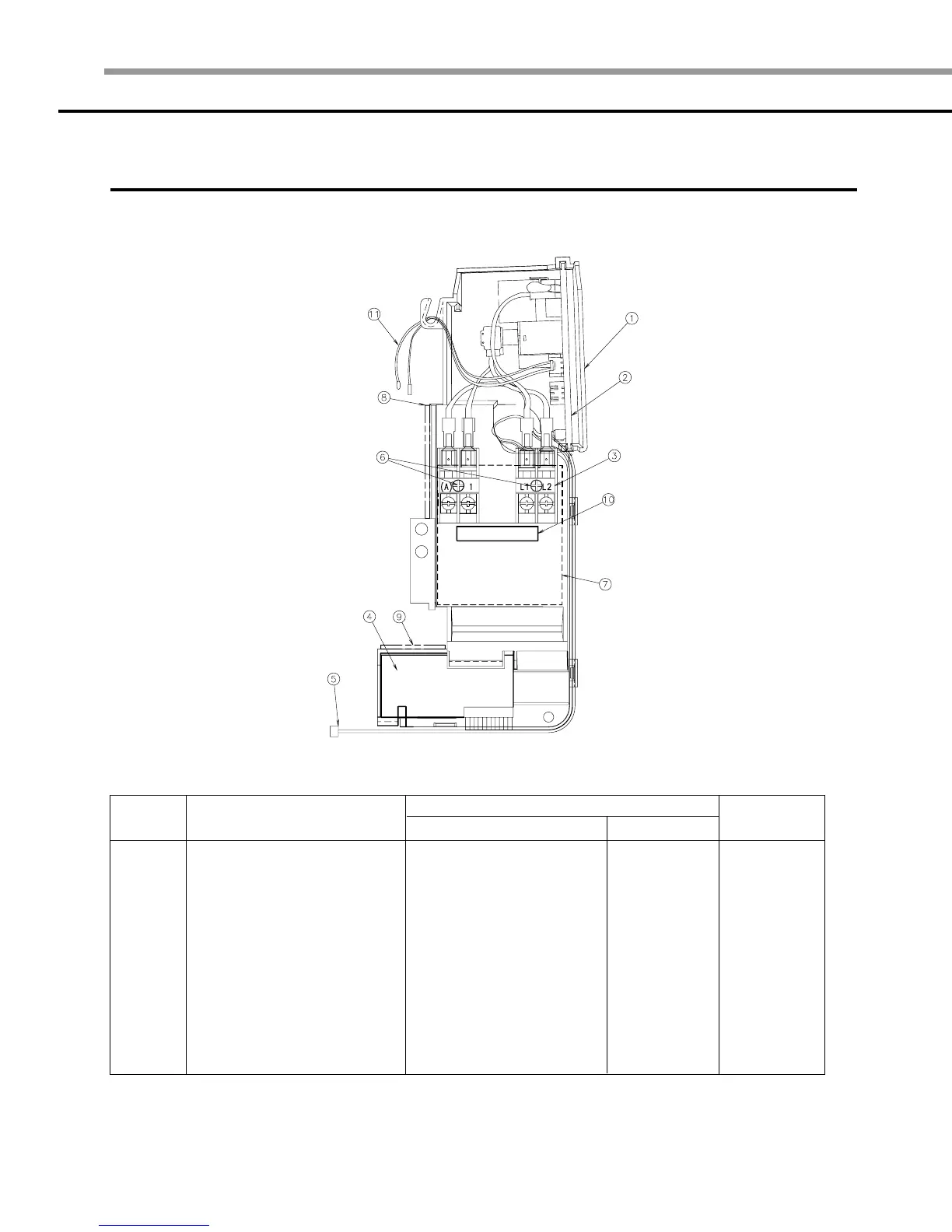

3 Assembly control in
■
Part’s List
No.
1
2
3
4
5
6
7
8
9
10
11
Description
HOLDER CONTROL
ASS’Y MAIN PCB
ASS’Y TERMINAL BLOCK
ASS’Y DISPLAY PCB
CONNECTOR WIRE PCB U/D
SCREW
HOLDER CLAMP IN
SEAL-PANEL FRONT RH
SEAL- H/CONTROL FRONT
LABEL
ASS’Y THERMISTOR
Code No.
AS07A5(6)MA/AS09A5(6)MAF AS12AA(B)MCF
DB61-00160B
DB93-01018B
DB65-00079B
DB93-00268A
DB39-00147A
-
DB61-00219B
DB72-10191T
DB62-02664A
DB68-01975A
DB32-00020A
DB61-00160B
DB93-01018A
DB65-00079B
DB93-00268A
DB39-00147A
-
DB61-00219B
DB72-10191T
DB62-02664A
DB68-01975A
DB32-00020A
-
-
-
-
-
SNA
-
SNA
SNA
SNA
-
Remark
Assembly drawing and part’s list (cont’d)
ΙΙΛΛ
■ AS07A5(6)MA/AS09A5(6)MAF/AS12AA(B)MCF
